  • C Purlin Forming Machine

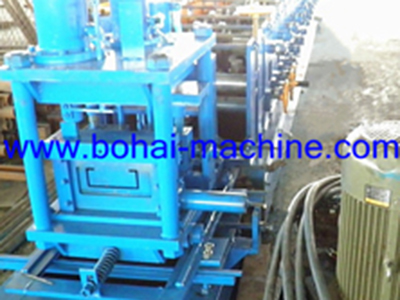

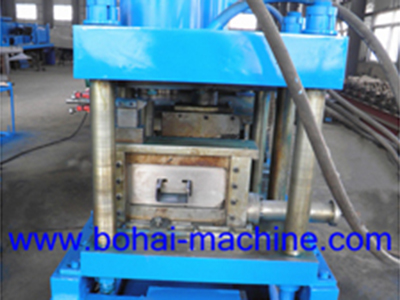

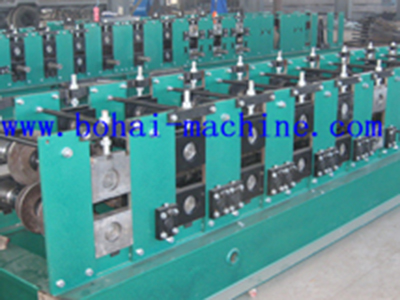

C Purlin Forming Machine

This product has been discontinued and removed from our shelves.
  • C Purlin Forming Machine
  • C Purlin Forming Machine
  • C Purlin Forming Machine
  • C Purlin Forming Machine
Main Technical Specification
Size 8500mm×1800mm×1800mm
Total Weight About 13000kg
Controlling System PLC
Main Motor Power 15kw
Hydraulic Station Power 15kw
Working Speed 13000mm/min
Hydraulic Pressure 18~20Mpa
Product Range All the types from 80 to 250

Features and Usage
1. The C purlin forming machine is mounted with intensively processed rollers that are made of forged quality structural steel. The hard chromium coating on the surface makes the rollers with long service life.
2. This equipment is computer controlled on length setting, punching and counting.
3. In the front part, the machine adopts many flattening rollers for improving the flatness of the strip steel. After flattening, the purlin is smooth and flat enough to meet the standards. Moreover, the C purlin forming machine gets more economic benefit.
4. The C purlin formed by this machine is characterized by excellent bending resistance and easy installation.
5. The product made by our machine commonly works as the supporter of the roof and the wall of large scale and midscale construction including the factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, garden, etc.
