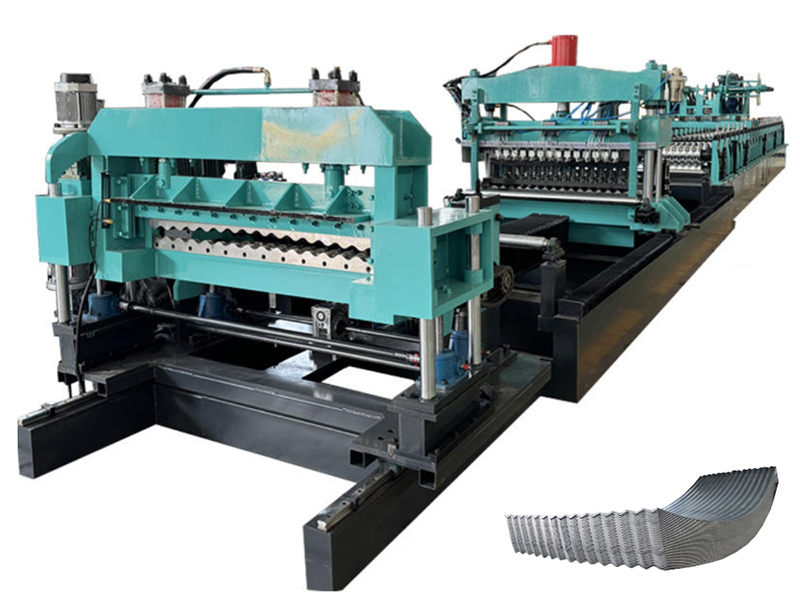

Corrugated Culvert Roll Forming Line (2mm-6mm)

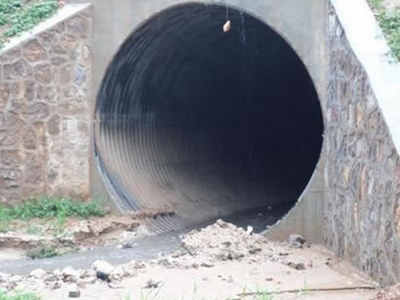

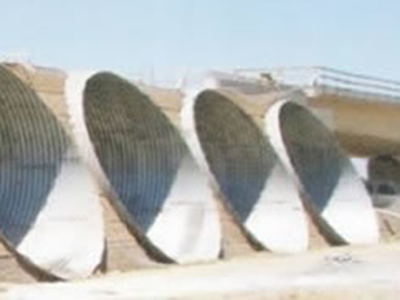

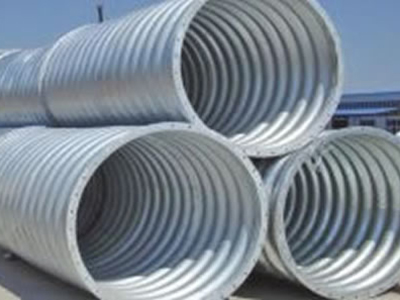

This roll forming machine is particularly designed for manufacturing large diameter corrugated metal culvert pipes which are commonly found beneath roadways or under railroad tracks to allow water to flow from one side to the other.
| Material width | 1510 mm |
| Corrugation pitch | 150mm |
| Corrugation depth | 50mm |
| Material thickness | 2.5-6.0mm (low carbon steel, cold rolled sheet, galvanized sheet, etc.) |
| Product length | customizable |
| Dimension (L×W×H) | 45×4×6m |
| Material feeding | left side feeding |
| Voltage | 380V, 50Hz, 3 phase |
| Total power | approx. 220kw |

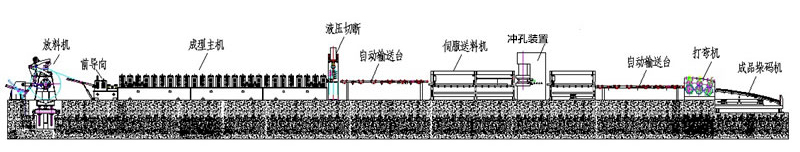

Uncoiling → Straightening → Cut to length → Automatic conveying (servo driven) → Hole punching → Automatic conveying → Roll forming → Corrugated sheet bending → Finished product
Equipment- Uncoiler

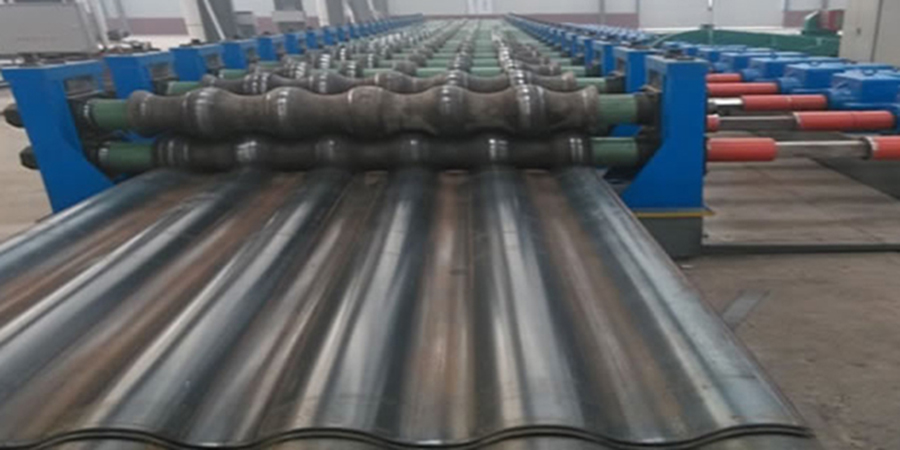

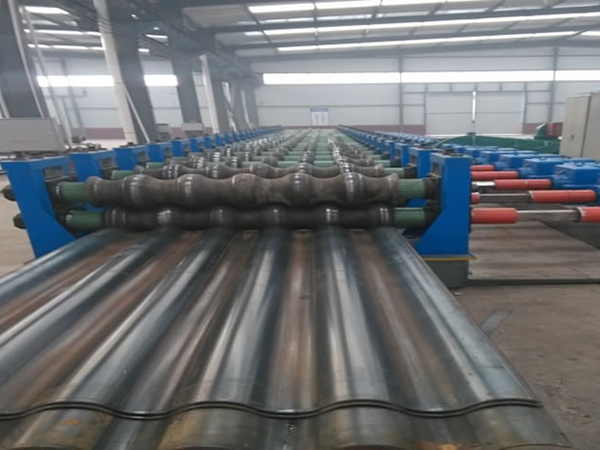

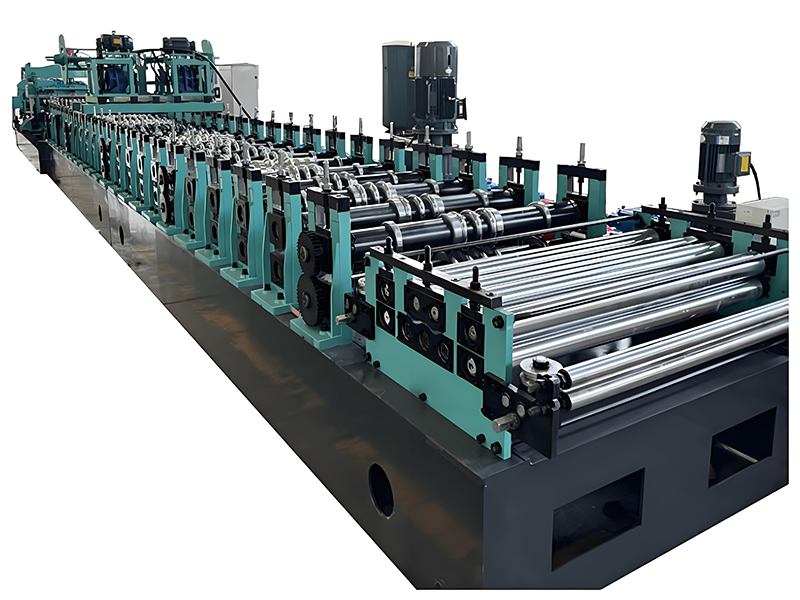

- Roll former
- Hydraulic cut-off
- Hole punching unit
- Automatic stacking table
