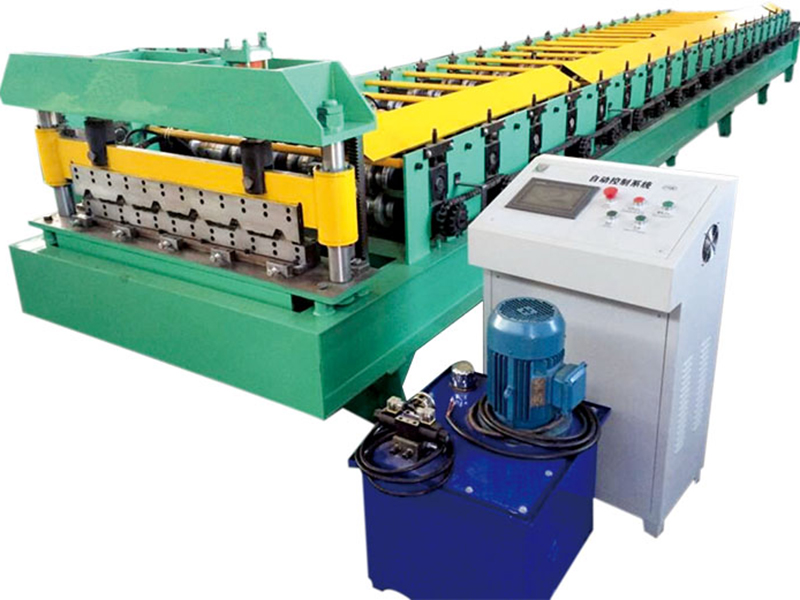

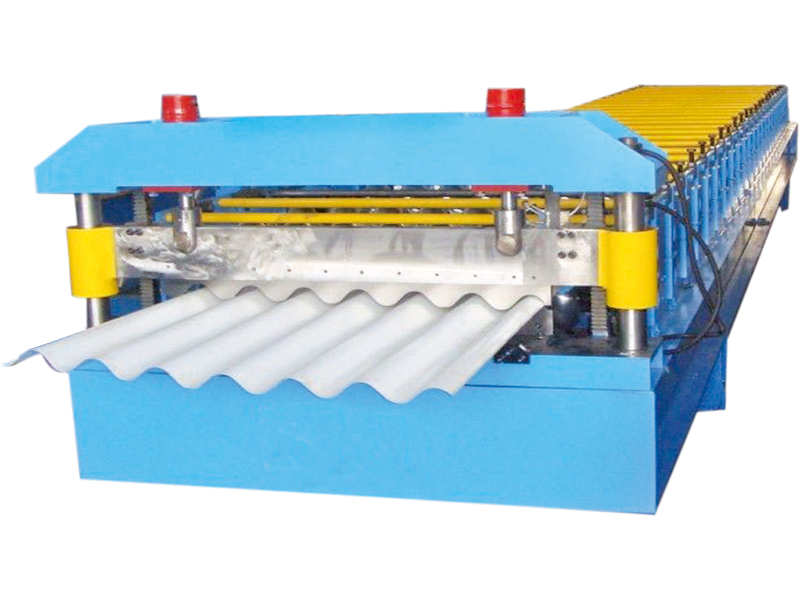

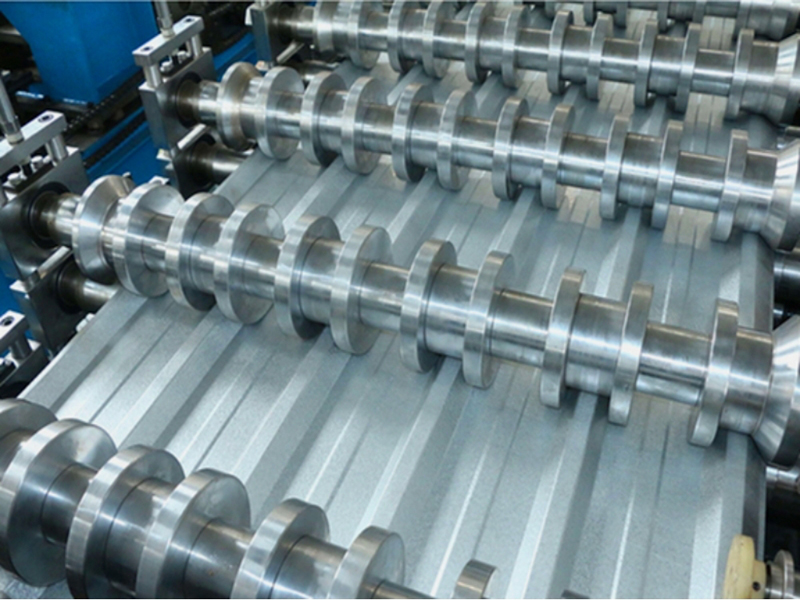

840 Corrugated Sheet Roll Forming Machine
Our 840 corrugated sheet roll forming machine can not only be used to form corrugated ceramic but also 840 flat sheets. As a leading 840 corrugated sheet roll forming machine manufacturer in China, Bohai produces and supplies 840 corrugated sheet roll forming machines that are of high levels of automation and easy operation. Our 840 corrugated sheet roll forming machine is widely used by our customers from all over the globe, such as Ukraine, Mexico, Romania, UAE, Afghanistan, Iraq, Angola, Guinea and other countries.

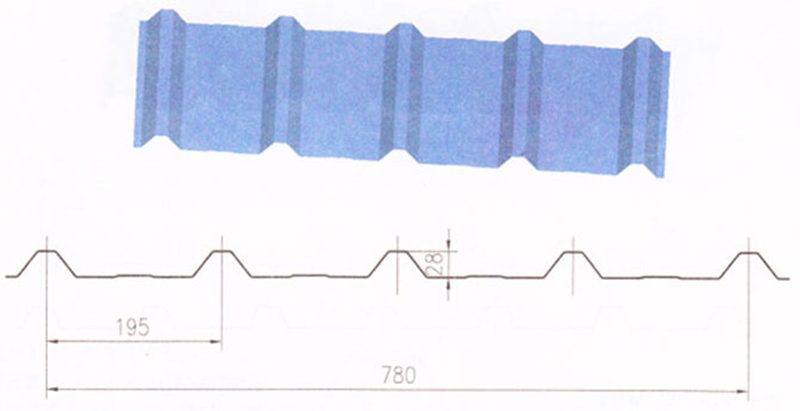

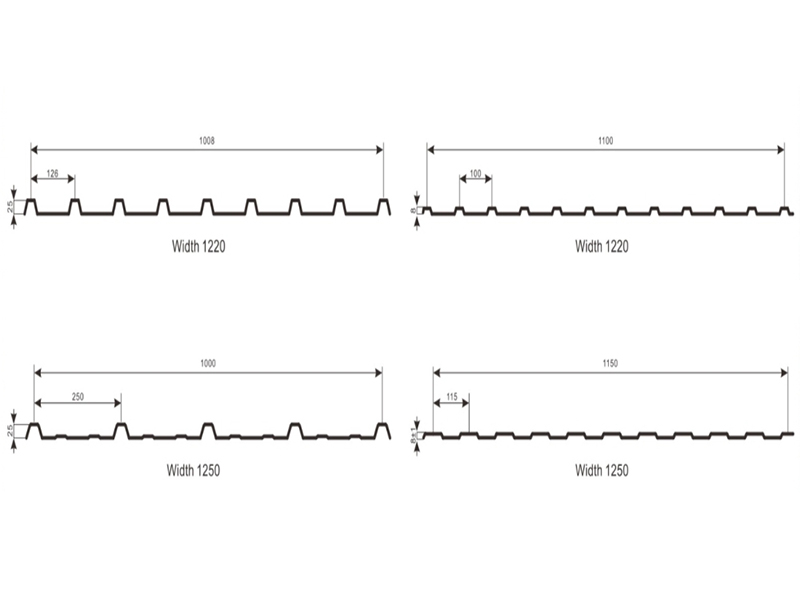

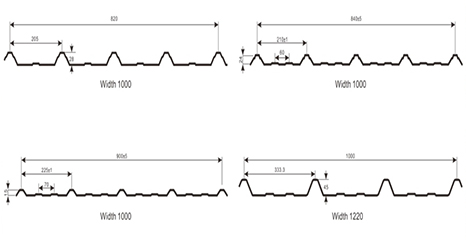

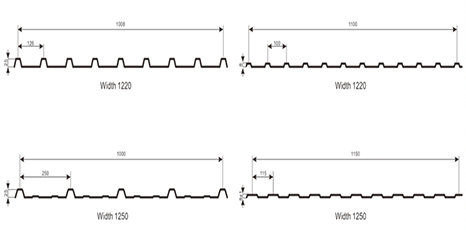

Profile Drawing
- De-coiler: Passively de-coiling
- Load-bearing of de-coiler: 5t
- Frame of machine: Welded with 350H beam steel
- Thickness of wallboard: 18mm
- Guide feeding way of forming: Side direction roller type
- Forming machine type: Wallboard and chain drive
- Diameter of shaft: ￠70mm
- Chain: 16A single row
- Motor power of forming machine: 5.5KW
- Line speed of forming machine: 10-15m/min
- Steps of forming machine: 18

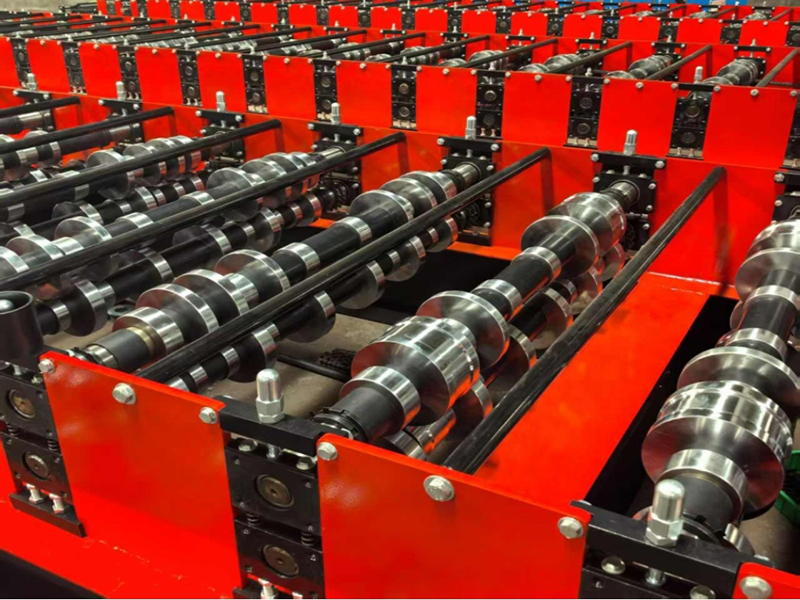

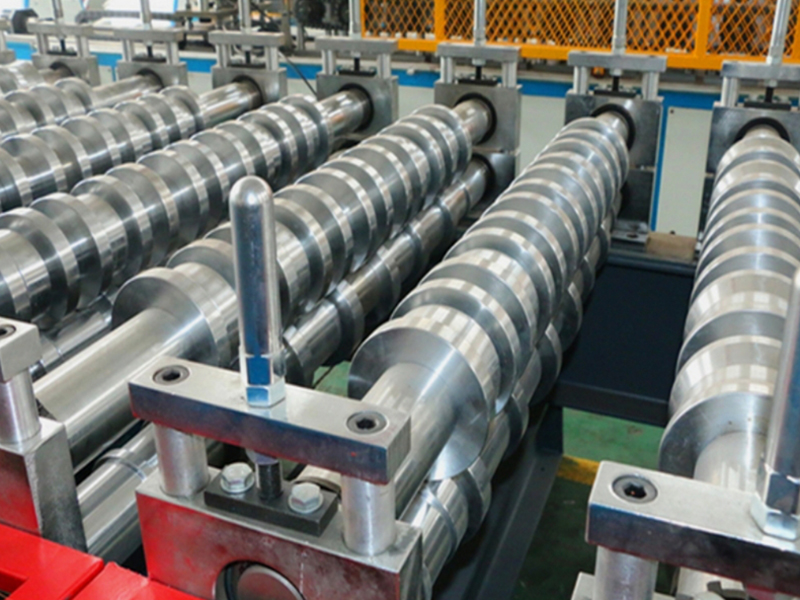

- Roller material: superior 45# steel forging
- Thickness of chrome plated on roller: 0.05mm
- Hydraulic station motor: 4 KW, pressure: 8-12Mpa
- Hydraulic station oil pump: Gear pump
- Cutting blade material: Cr12
- Cutting blade heat treatment: HRC58℃-60℃
- Rolling thickness: 0.3-0.8mm
- Feeding width: 1000mm
- Precision of cut-to-length: ±2mm
- Electrical control system:Computer adopts PLC (Panasonic)
- Voltage: 380V, 50Hz, 3 Phases.
Technological Process
Passively De-coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-length → Output Panel

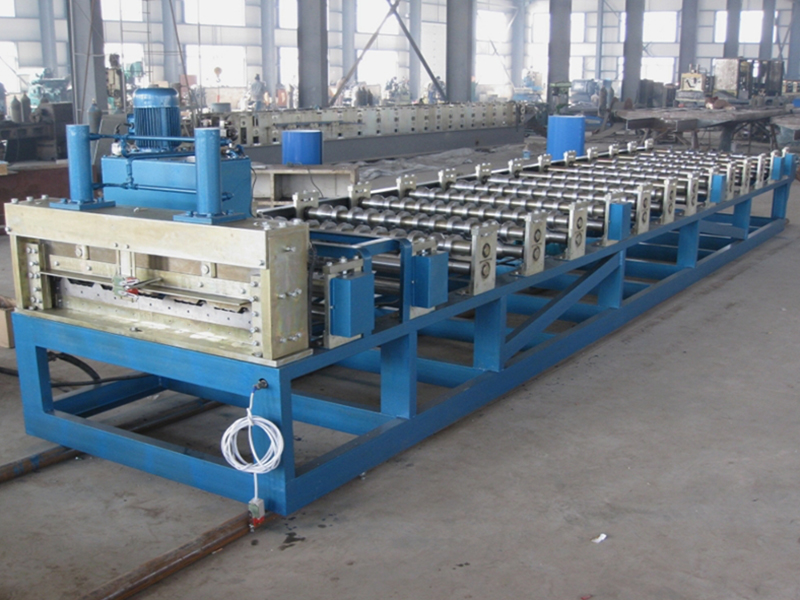

Equipment Configuration
Normal manual De-coiler (5T); Main machine of roll forming; Hydraulic forming cutting; Hydraulic station; PLC computer operation cabinet; Run-out table

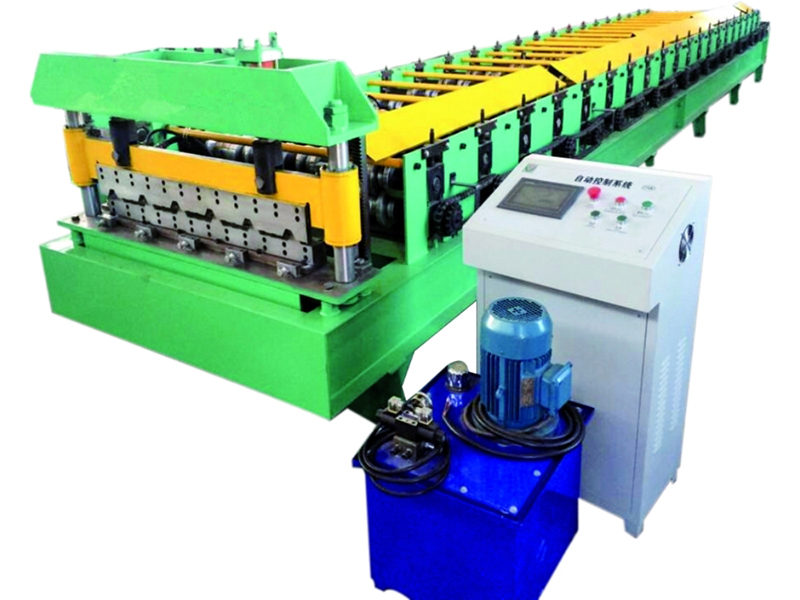

- This 840 corrugated sheet roll forming machine is designed with compact structure and nice looking. The whole machine is welded with H steel, realizing steady performance.
- With the automatic measuring and cutting devices, the product gets highly precise and trim cutting edge.
