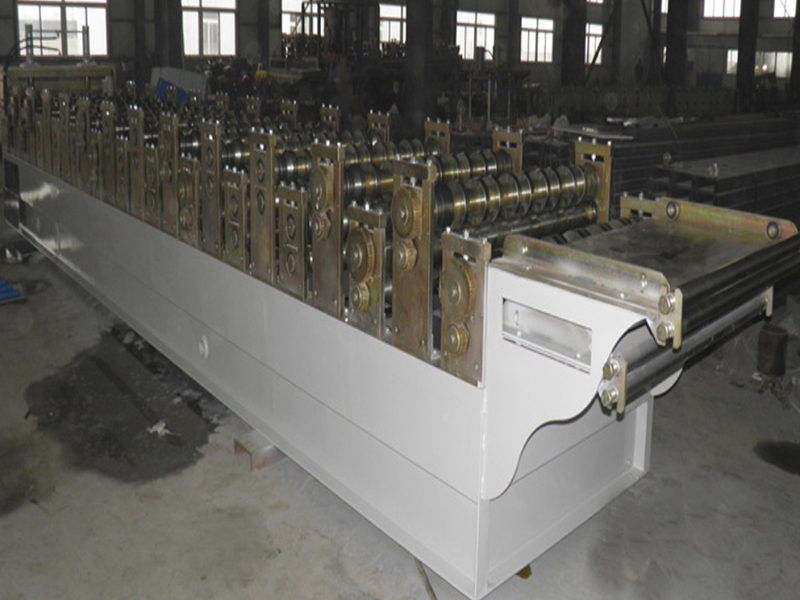

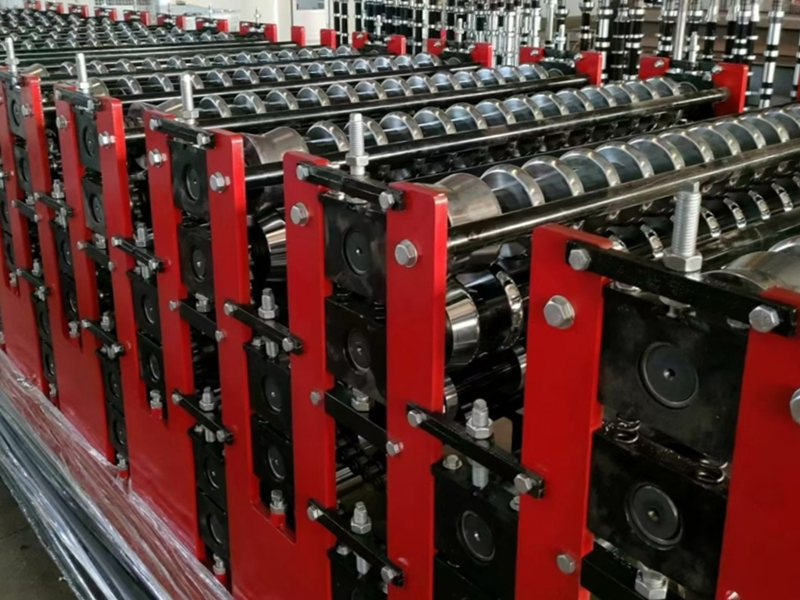

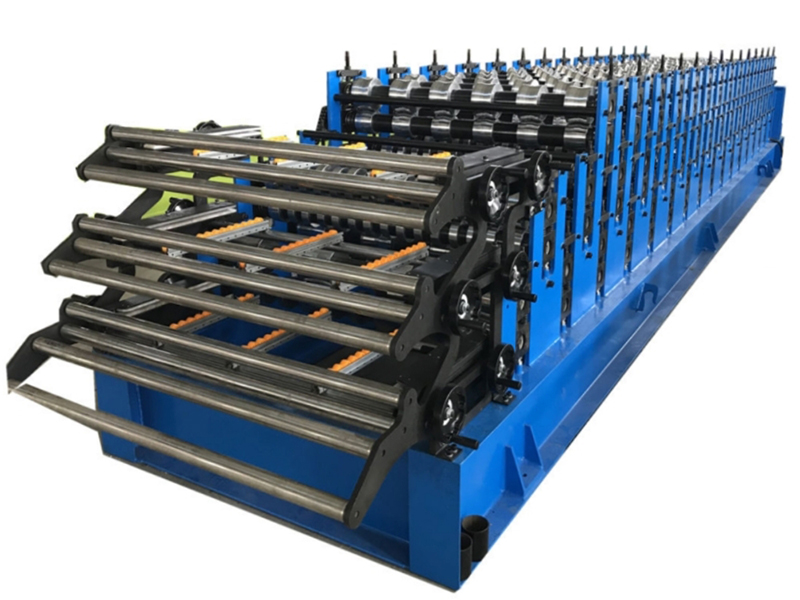

Double Layer Roll Forming Machine
Bohai is a double layer roll forming machine manufacturer located in Yingkou city. With more than 20 years of experience in this line, Bohai is able to offer 840 corrugated sheet roll forming machine, concealed roof sheet forming machine, double layer roll forming machine, flat sheet bending machine, sandwich panel forming machine and more roll forming machines for your choice. You are welcome to contact us for more information about our double layer roll forming machine.

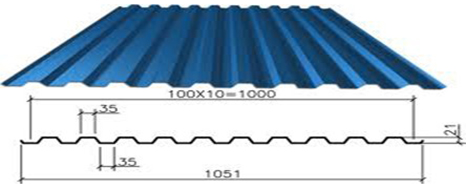

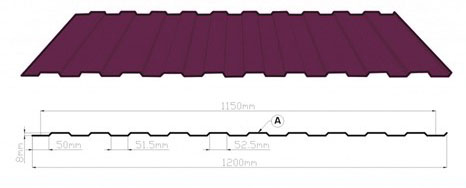

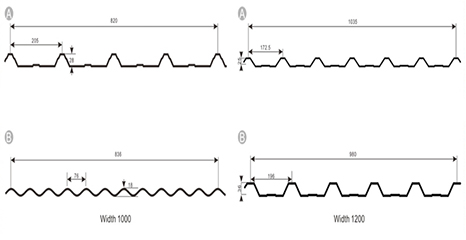

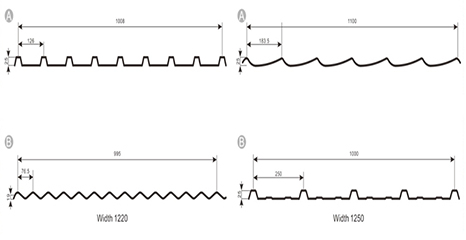

Profile Drawing
- De-coiler: Manual operation, passively de-coiling
- Loading of de-coiler: 5 T
- Frame of machine: Welded with 350H beam steel
- Thickness of wallboard: 16mm
- Guide feeding way of forming: Side direction roller type
- Forming machine type: Wallboard and chain drive
- Diameter of shaft: ￠75mm
- Chain: 16A single row
- Motor power of forming machine: 5.5KW
- Line speed of forming machine: 18 m/min
- Steps of forming machine: 16/14
- Roller material: Superior 45# steel forging
- Thickness of chrome plated on roller: 0.05mm
- Hydraulic station motor: 4 KW
- Hydraulic station oil pump: Gear pump
- Cutting way: Cut off before/ after hydraulic shaped
- Cutting blade material: Cr12
- Cutting blade heat treatment: HRC58℃-60℃
- Rolling thickness: 0.3-0.8 mm
- Feeding width: 1250mm
- Precision of cut-to-length: ±2mm
- Frequency changer: Tricrystal
- Computer adopts PLC: Panasonic
- Computer operation panel adopts touch screen
- Voltage: 380V/50HZ, 3 phase
- Dimension of machine: 6.8 M x 1.7 M x 1.5 M
Technological Process

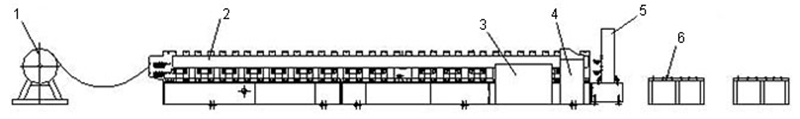

Passively de-coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-length → Output Panel
- De-coiler

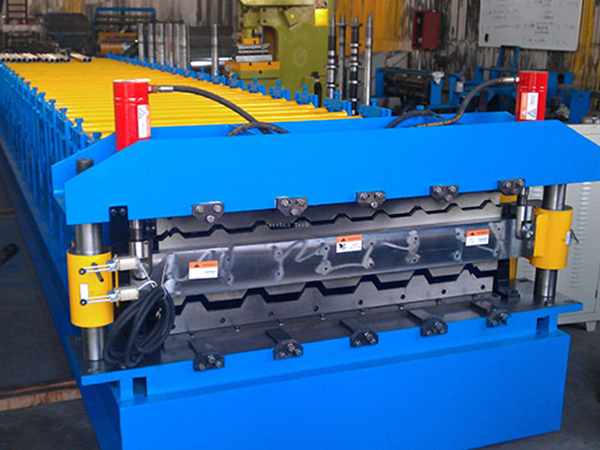

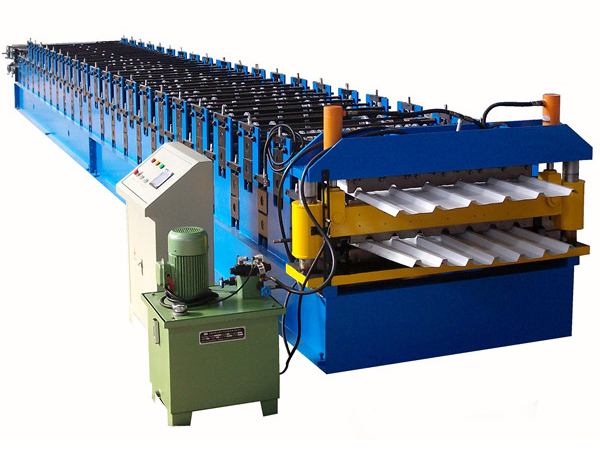

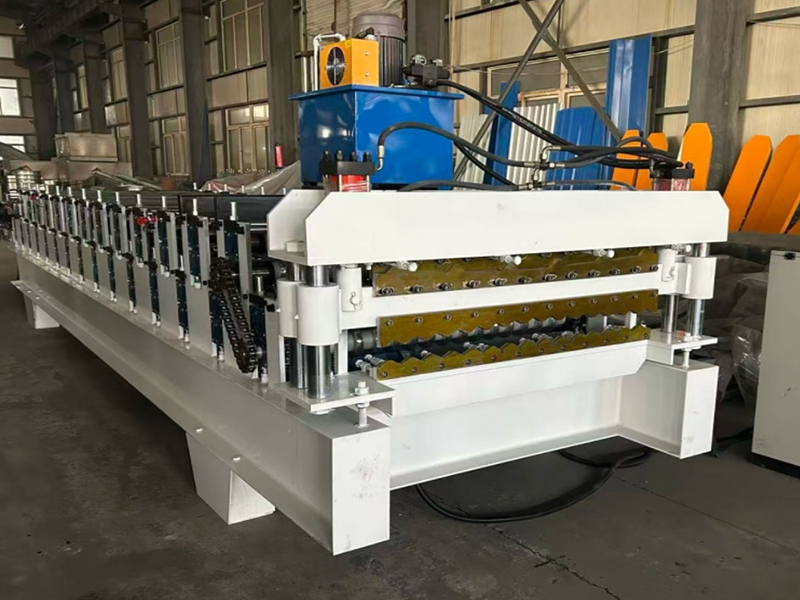

- Double Layer Forming Machine
- Hydraulic Station
- PLC Control Cabinet
- Hydraulic Forming Cutter
- Discharging End
Equipment Configuration
Manual de-coiler(5t), double layer forming machine, hydraulic station, PLC control cabinet, hydraulic forming cutter, discharging end.
Features
This double layer roll forming machine exerts the performance meeting the international standard level. It supports the custom design and fabrication based on the specific demands of customers. Moreover, we offer perfect after sales service for users and can help users to accomplish the installation, adjustment and maintenance of the product.
