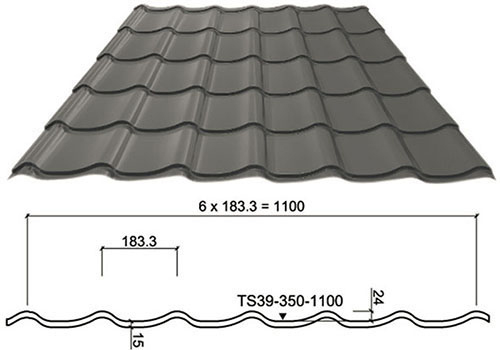

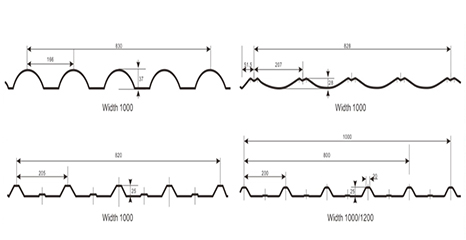

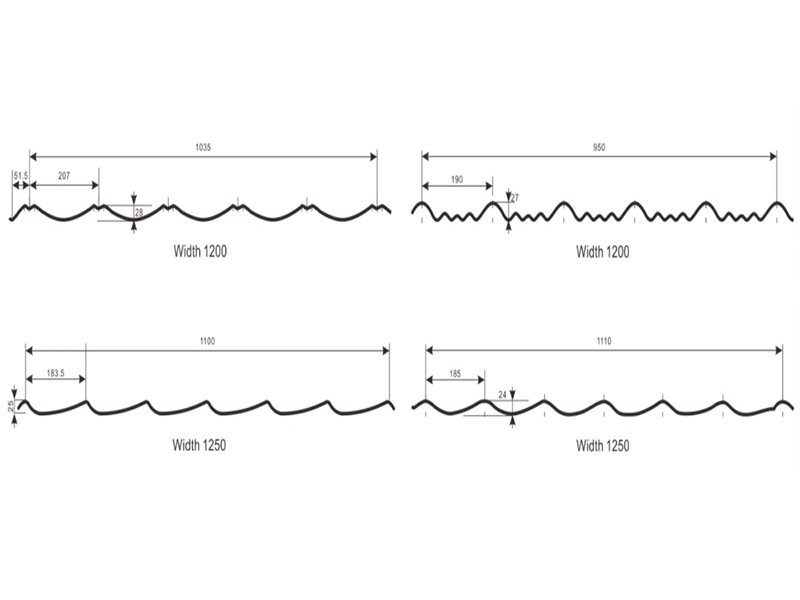

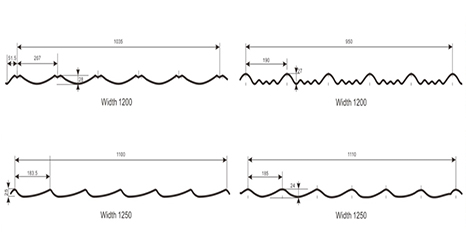

Profile Drawing

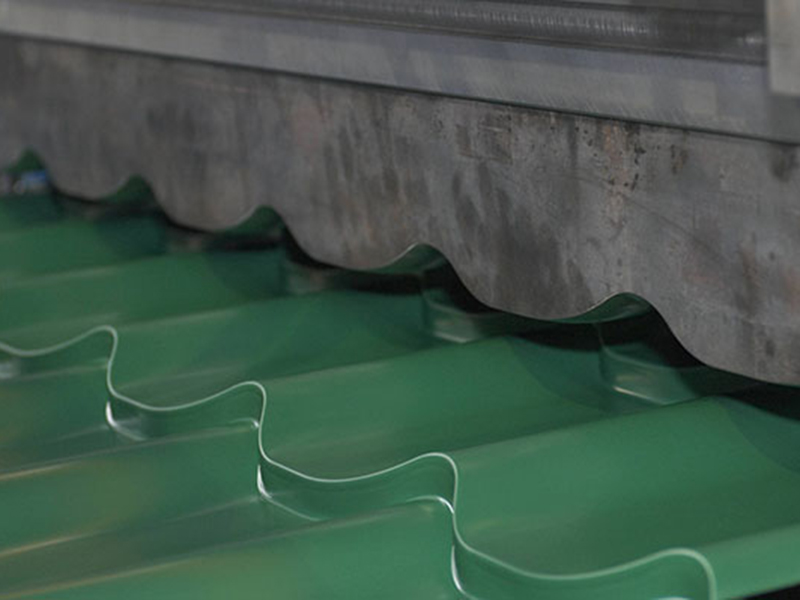

Glazed Tile Roll Forming Machine
Main Parameters
  • Specification of rolling material: 1250×(0.4-0.8)×L, yield strength ≤250MPa
  • Working speed: 3.0-4.0m/min (take 350mm pitch of waves as example)
  • Roller steps: 16 steps
  • Frame of machine: Welded with 350H beam steel
  • Thickness of wallboard: 16mm

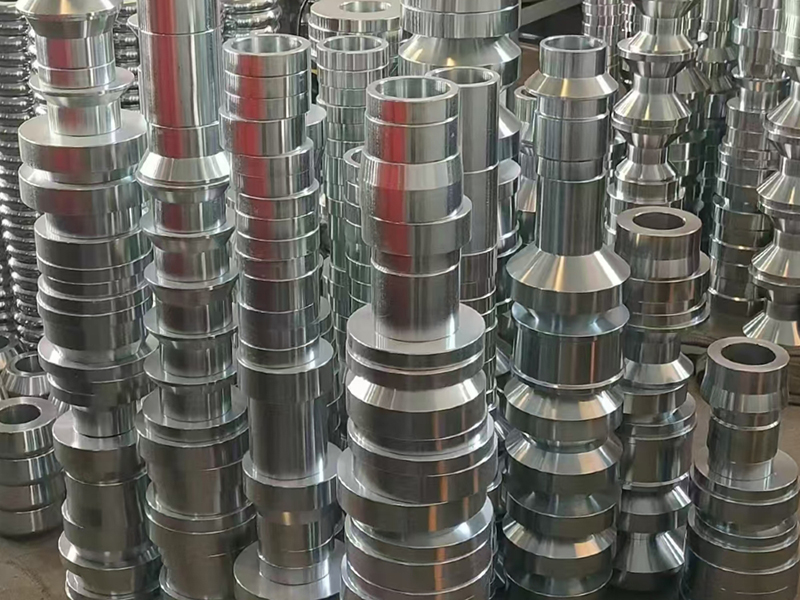

  • Roller material: Adopts superior 45# forged steel, with hard chromium plated
  • Shaft material: Adopts superior 45# forged steel, quenching and tempering
  • Main shaft diameter: ￠70mm
  • Main motor power: 5.5KW
  • Hydraulic station power: 11KW
  • Hydraulic station pressure: 10-12Mpa
  • Electric control system: Adopts PLC (Panasonic) frequency control
  • Machine size: 7000×1700×1400(mm)
Structure Features and Compositions
  • Structure features
    a. Simple and reasonable structure, beautiful appearance. Our whole machine adopts profile steel structure and all processed after welding, so it can work stably and has high efficiency.
    b. Our machine adopts full automatic accurate fixed length punching and cutting, ends of finished sheets are beautiful and neat, without deformation.

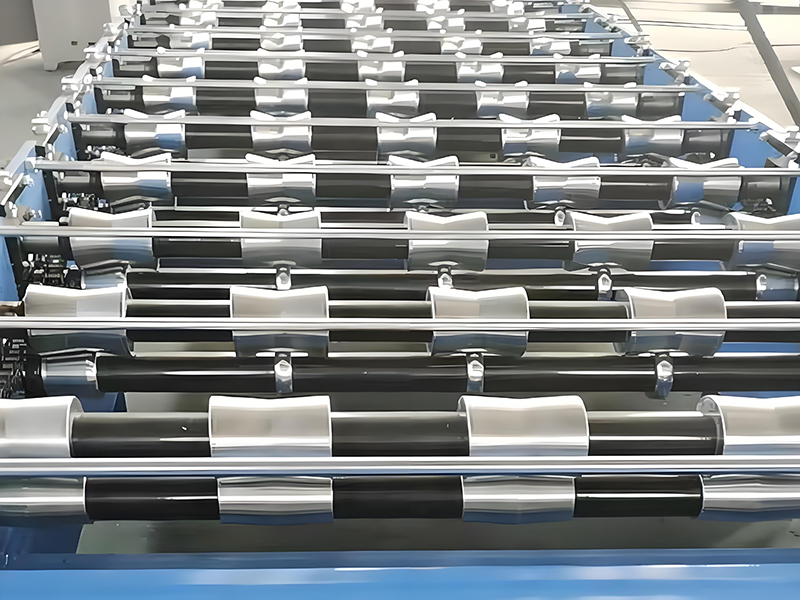

  • Equipment structure Glazed tile roll forming machine is equipped with Feeding device (5T capacity), transmission, main machine and roller, punching after roll forming, cutting device, hydraulic system, electric control system, run out table, etc.

Work Flow
Loading → De-coiling & Feeding → Adjusting & Guiding → Roll forming → Punching after roll forming → Cutting → Run our table

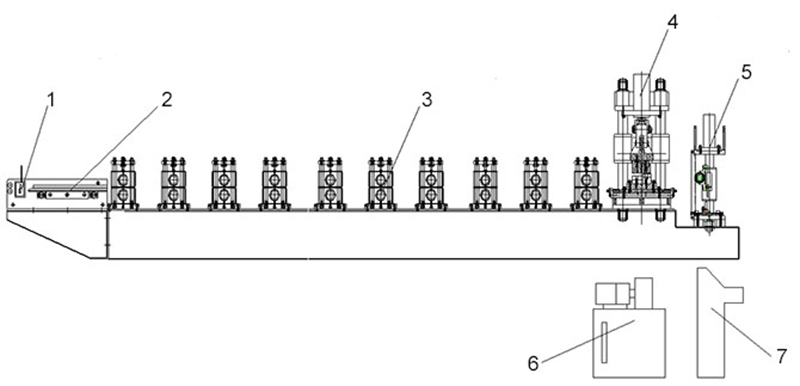

Technological Process Figure
Glazed Tile Roll Forming Machine
  • Manual Cutter
  • Guiding Machine
  • Forming Machine

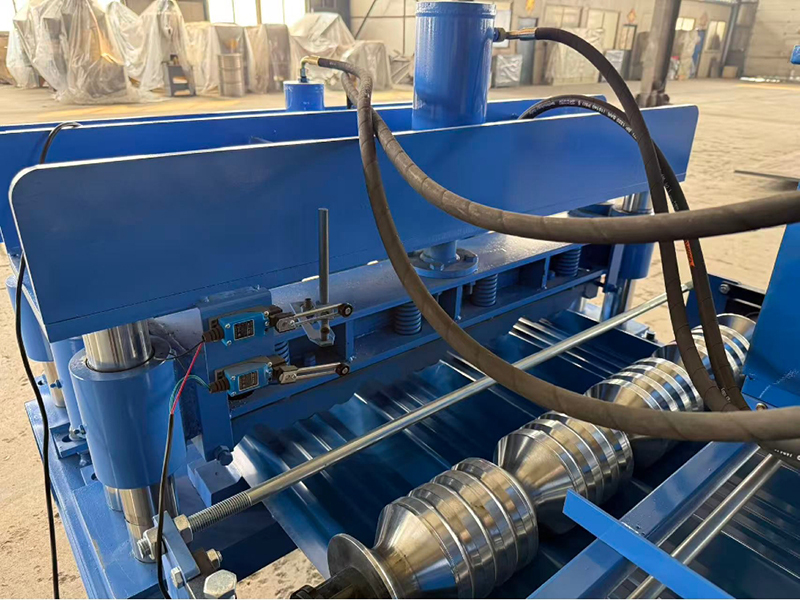

  • Punching Machine
  • Cutting Machine
  • Hydraulic System
  • PLC Control System
