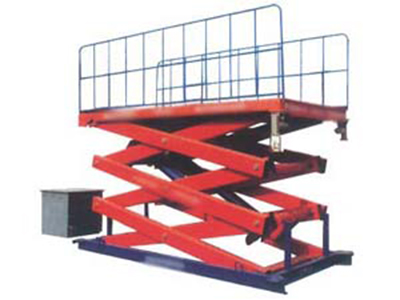

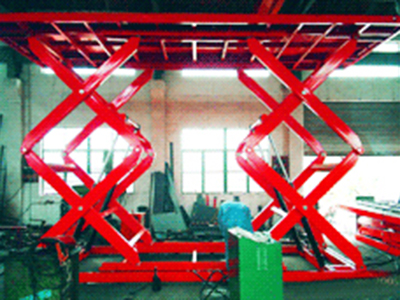

Lifting Machine

Technical Parameters

Model	Lifting Height(m)	Lifting Weight(kg)	Platform Size(mm)	Maximum Overall Dimension(mm)	Total Motor(kw)	Machine Weight(kg)
SJY0.3-4	4	300	1650×750	1820×950×1970	2.2	400
SJY0.3-6	6	300	1650×750	1820×950×2160	2.2	600
SJY0.5-6	6	500	1650×750	1820×950×2160	2.2	700
SJY0.3-8	8	300	1650×1000	2100×1200×2460	2.2	1200
SJY0.5-8	8	500	1980×1220	2600×1550×2380	2.2	1400
SJY0.8-8	8	800	2000×1220	2600×1550×2640	2.2	1700
SJY0.3-10	10	300	2100×1220	2700×1550×2380	2.2	1500
SJY1.0-10	10	1000	2220×1220	2820×1720×2850	3	2380
SJY0.3-12	12	300	2550×1500	3150×2000×2850	2.2	2580
SJY1.0-12	12	1000	2600×1500	3200×2015×3090	3	2580
SJY0.3-14	14	300	2990×1600	3550×2120×2850	2.2	3000
SJY0.3-16	16	300	3210×1600	3890×2120×3030	3	3900
SJY0.3-18	18	300	3210×1600	3890×2120×3250	3	4300

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
