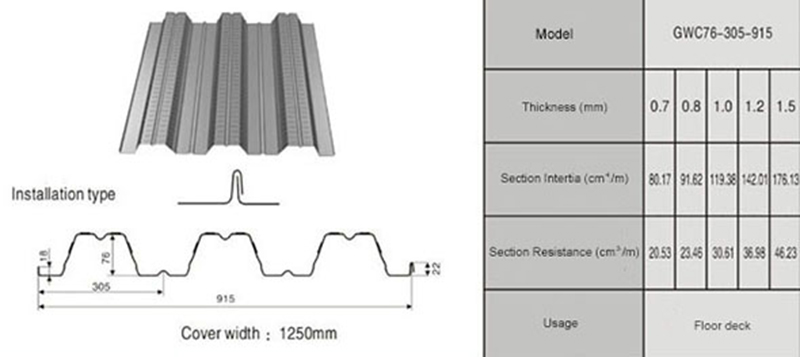

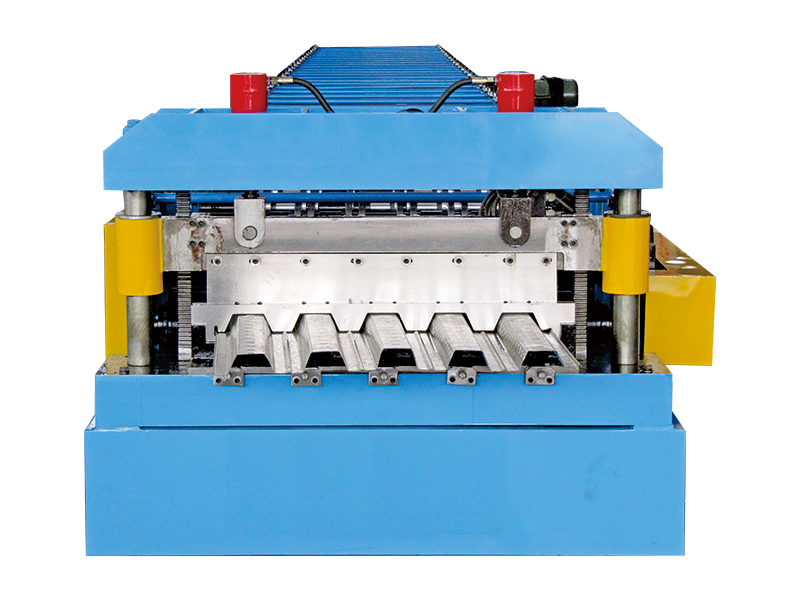

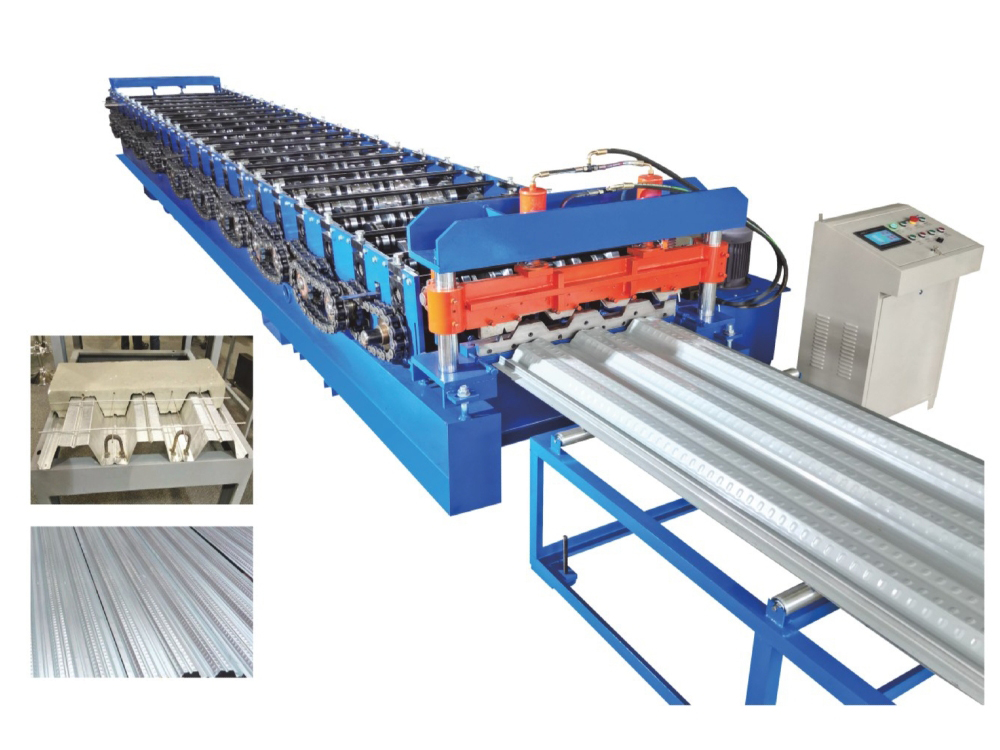

Steel Decking Roll Forming Machine
- De-coiler: Passive open the coil, manual expansion
- Capability of de-coiler: 5T
- Frame of machine: Welding flange beam
- Form of guide feeding: Side roller type
- Machine form: Chain transmission (20A, double row)
- The diameter of main shaft: Ø90mm
- Power of main motor: 22kw
- Working speed: 0-15 m/min (not including cutting time)

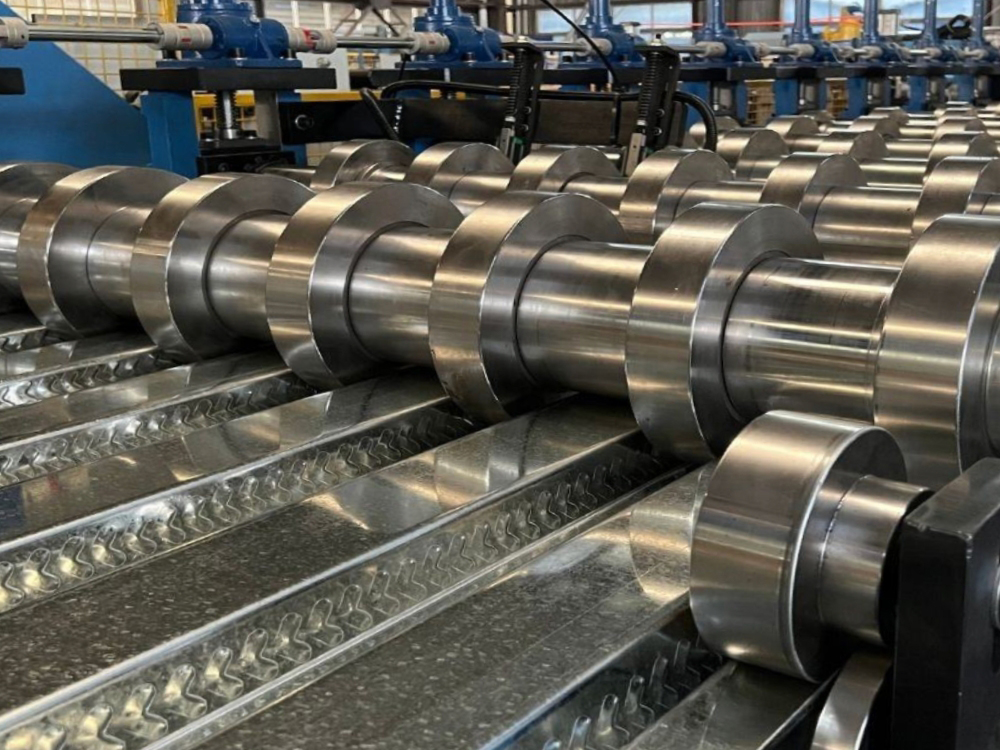

- Roller station: 28 steps
- Material of roller: NO.45 steel, coating chrome
- The surface of roller coating hard chromium: 0.05mm
- Material of shaft: NO.45 steel, thermal refining
- Power of hydraulic motor: 5.5kw
- Hydraulic station pressure: 20Mpa
- Oil pump of hydraulic station: Gear pump
- Cutter: Hydraulic shear
- The material of cutting blade: Cr12Mov
- Quenching rigidity: HRC58℃-60℃

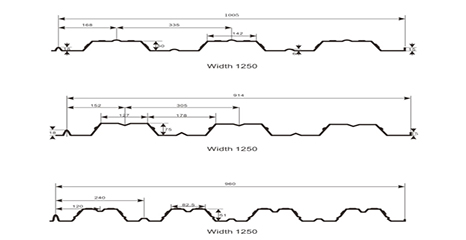

- Material thickness: 0.7 -1.6mm
- Feeding width: 1250mm
- Tolerance of length: ±2mm
- Controlling system: PLC frequency control
- PLC: Panasonic
- Encoder: Omron
- Dimension: 15500×1400×1300(mm)
Working Process

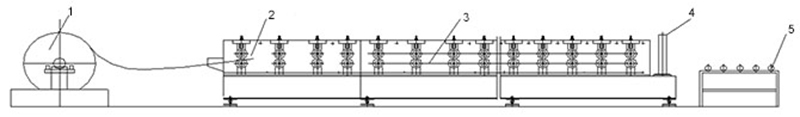

Passive Open The Coil → Feeding Panel with Guide → Roll Forming → Cutting With Fixed Length → Output with Supporter
- Material Feeding Device

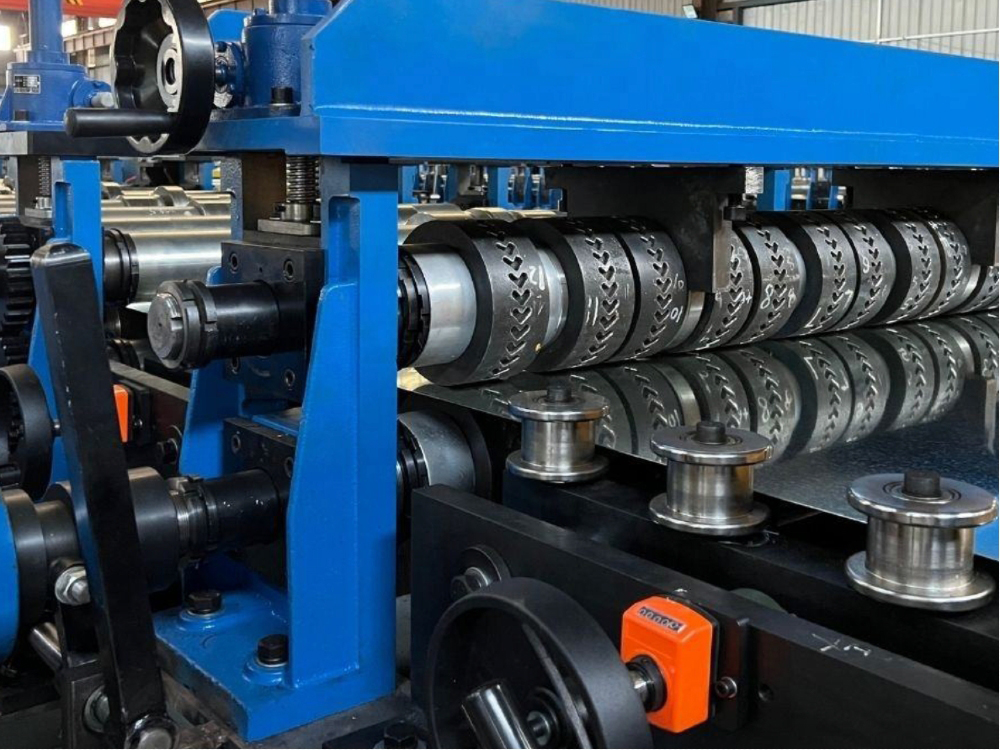

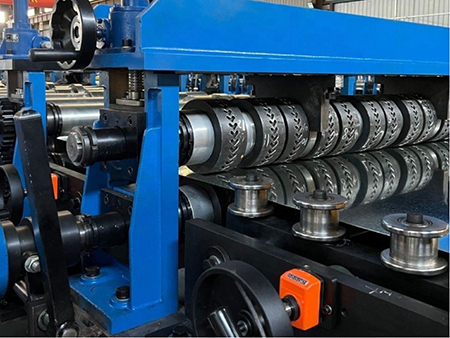

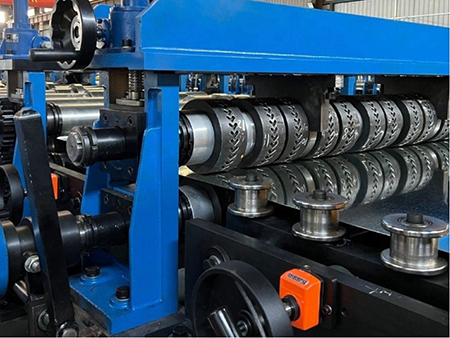

- Feeding

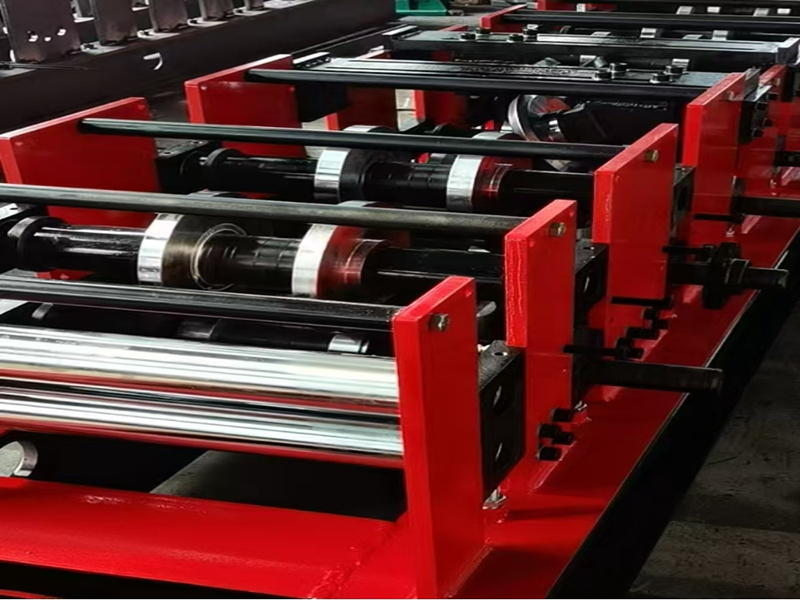

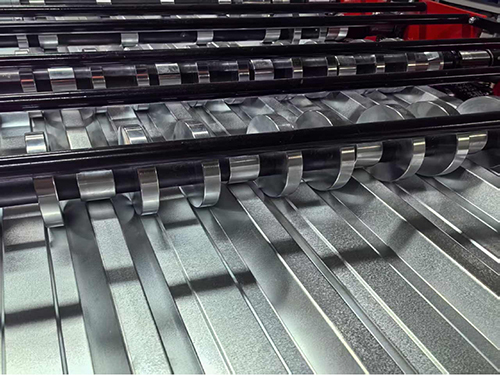

- Hydraulic Forming

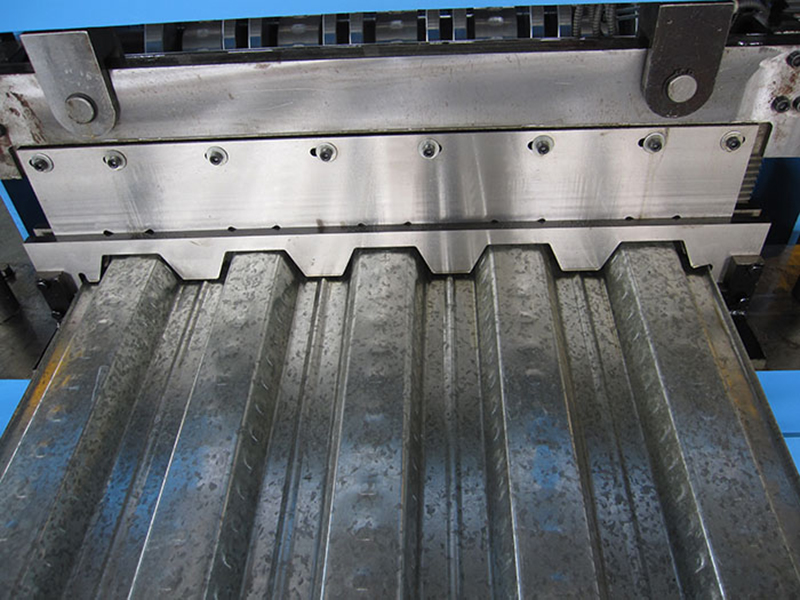

- Hydraulic Cutting
- Discharging Device
Equipment Including
Passive de-coiler(5T); forming machine; hydraulic cutting; hydraulic station; PLC computer control cabinet; output table
