Bohai is consistently providing our customers with our top-quality steel drum production lines after it’s established in 2000. After dozens of years’ effort, Bohai has developed metal steel drum production lines of different capacities, including high speed steel drum manufacturing equipment, middle speed automatic steel drum production lines, and low speed metal packaging drum production lines. Our steel barrel production lines can manufacture the following drums, such as closed head steel drums, open head steel drums, asphalt packaging steel drums and conical metal drums.
High speed metal barrel making machinery is fully automatic, which uses PLC system, and is capable to produce steel barrels with a single-click. High speed corrugated steel barrel making machinery is highly advanced, stable and highly efficient to produce quality steel barrels.
With high production capacity and large output of the high speed automatic steel drum production line, our clients, steel drum making enterprises, could be suppliers of various fields, like chemical, food, beverage, construction, etc. Purchasing high speed oil barrel production line, as a one-time investment, with less investment in later stage, can help our client to be the best steel barrel enterprises in the area.

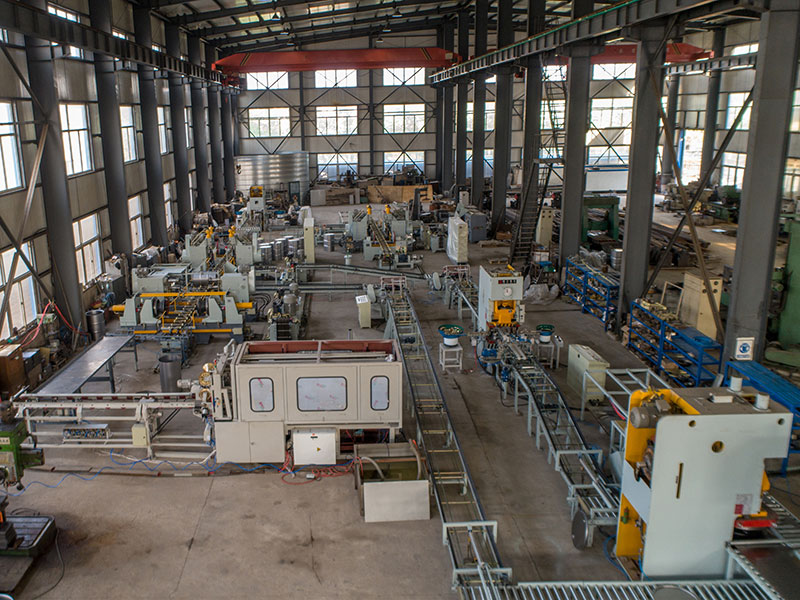

About Steel Drum Production Line
The technical parameters and raw material usage of ordinary steel drums are shown in the following figure. High-speed steel barrel production line uses PLC system, and for the steel barrel factories who has strict requirement towards equipment distribution and arrangement, Bohai provides after-sales on-site installation, production guidance and equipment maintenance services, thus to ensure the stable running and development of steel oil metal barrel manufacturing factories.

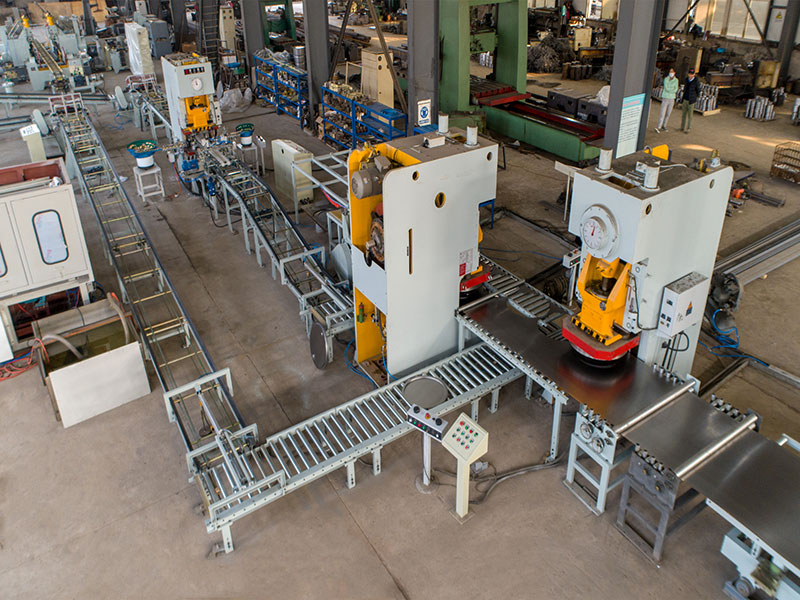

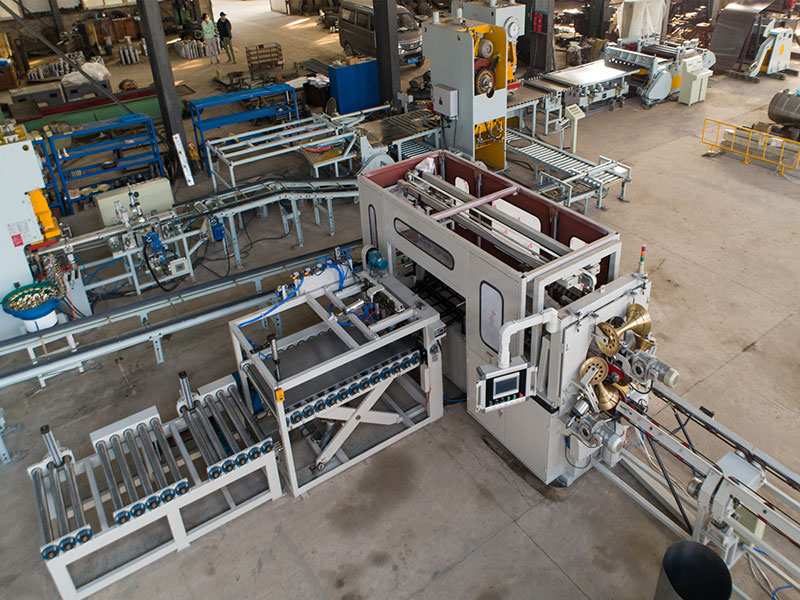

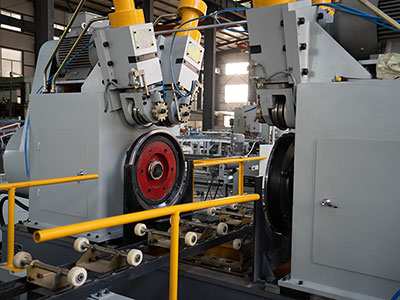

High speed automatic steel barrel forming equipment runs fast, and has the world-leading production capability, which could produce more than 8 steel drums per minute, and more than 500,000 drums per year. High speed automatic steel drum production line is quite suitable for large size barrel making enterprises with high labor cost. This steel barrel production line requires an area of about 5000 square meters, a height of 6 meters, and a stacking area of about 1000 square meters.

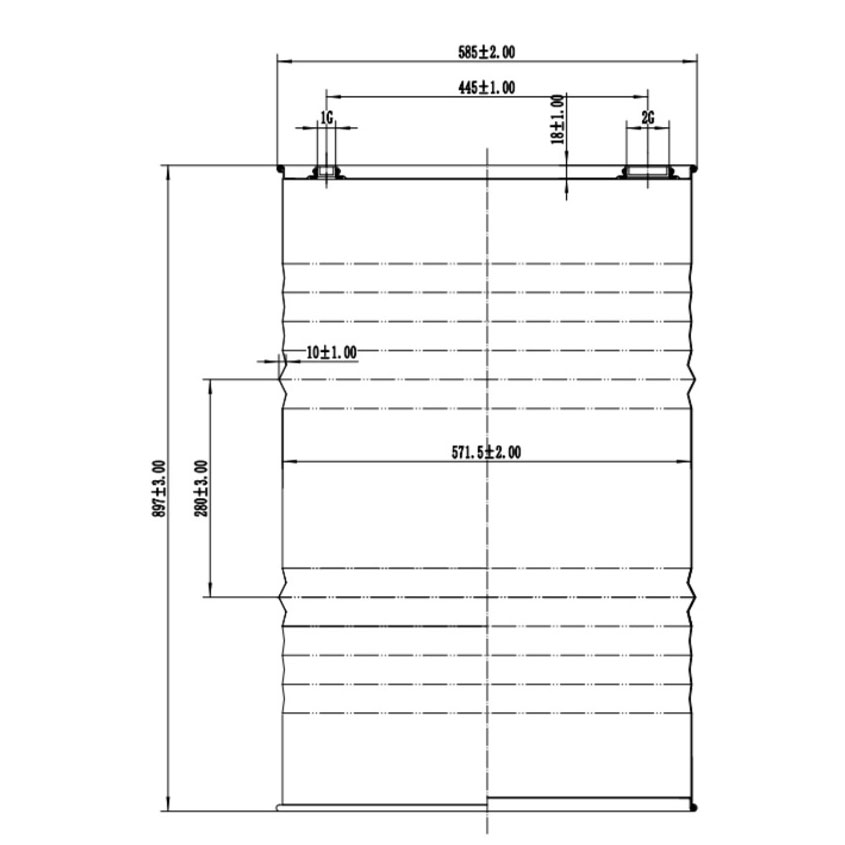

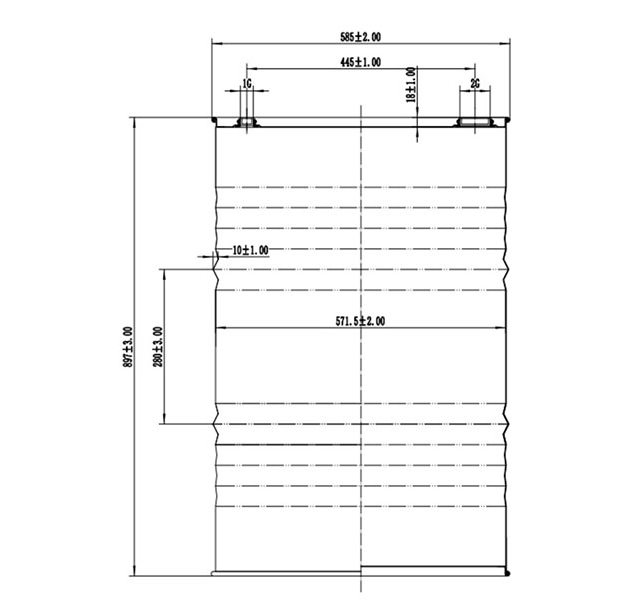

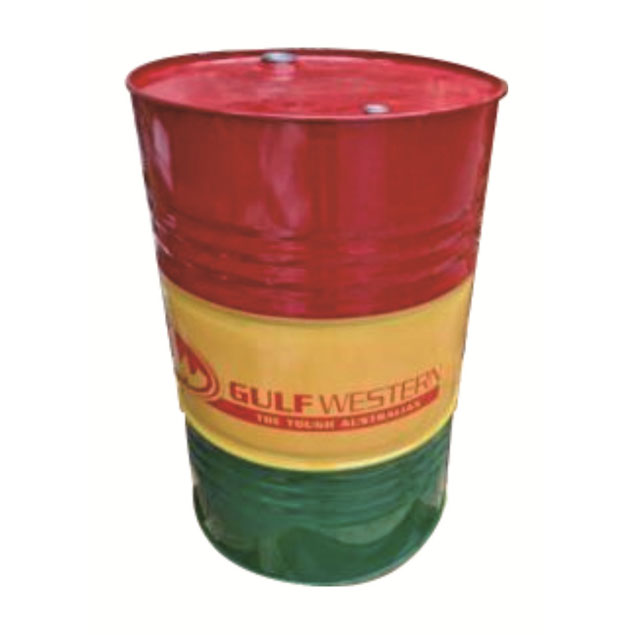

55 Gallon Metal Drum Specifications
Applied sheet: SPCC steel plate or cold-rolled sheet
Drum Inner diameter: 571.5mm
Drum Outside diameter: 585mm
Drum height: 897mm
Material thickness: 0.8-1.2mm
Numbers of corrugations: 6-10
Closures: 2 closures
Top holes: One3/4 Inch + one 2 Inch
Weight: 16-18kg
Drum capacity: 140L-220L
Outside painting: Nitro bake paint
Paint thickness: Minimum 18 micron
Body color: One color or multicolor
Raw Materials Consumption and Production Capacity
Plate thickness(mm)
Finished drums(pcs/T)
Production capacity(kg/pc)
1.2
41
21.5
1.0B
Drum cover and bottom 1.2
47
19
Drum body 1.0
1.0
50
18
0.9B
Drum cover and bottom 1.0
54
16.8
Drum body 0.9
0.9
56
16.2
0.8
63
15.9

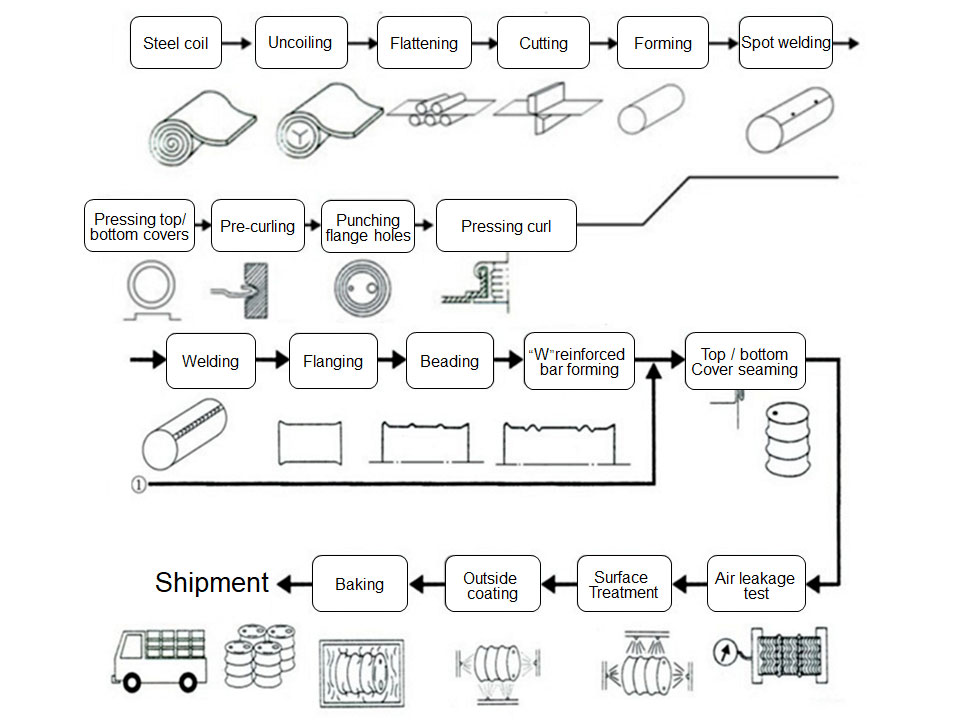

Working Process
Configurations of the Steel Drum Production Line

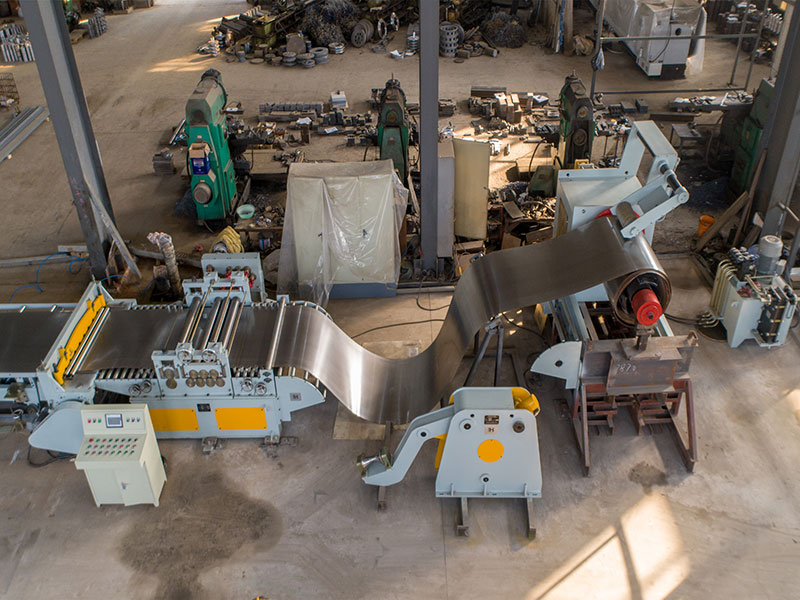

Decoiler +Sizing & Flattening
Dislocation Pressing

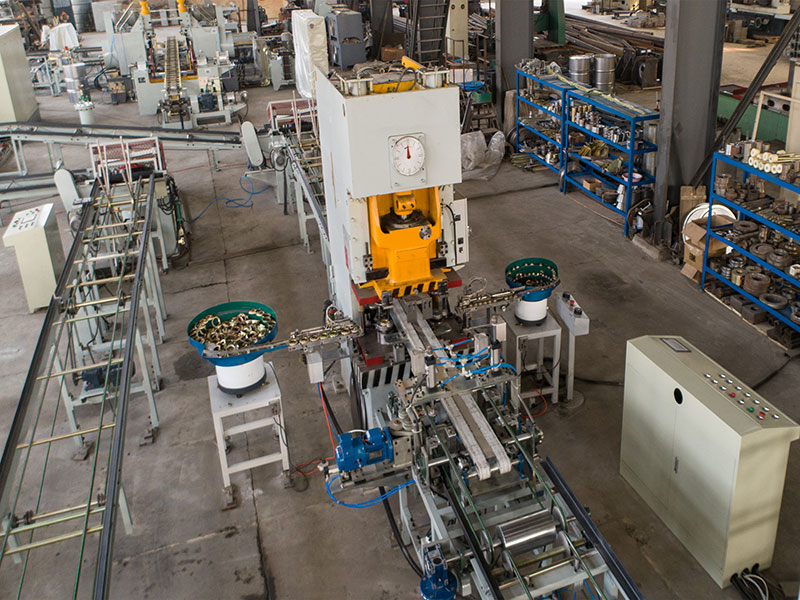

Automatic Locking for Drum Inject Mouth
Automatic Pre-Coiling Machine
Automatic Seam Welding Machine
Edging machine

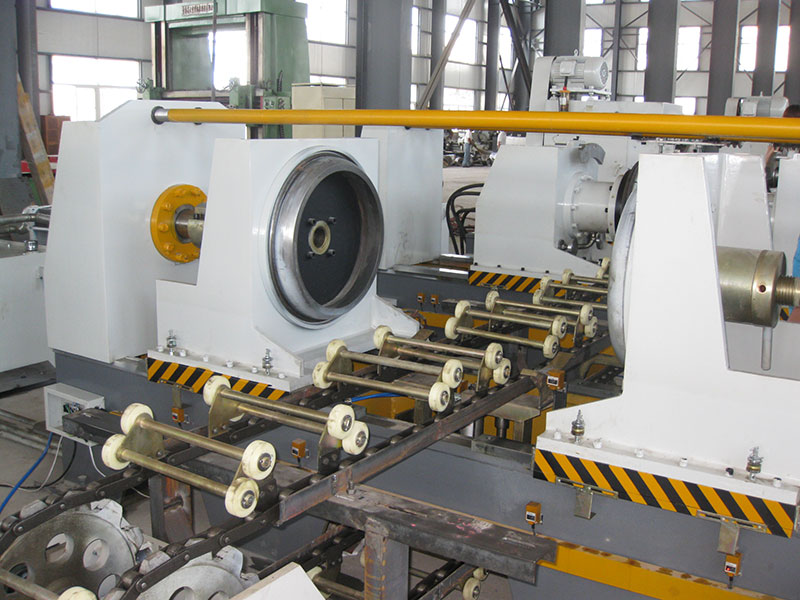

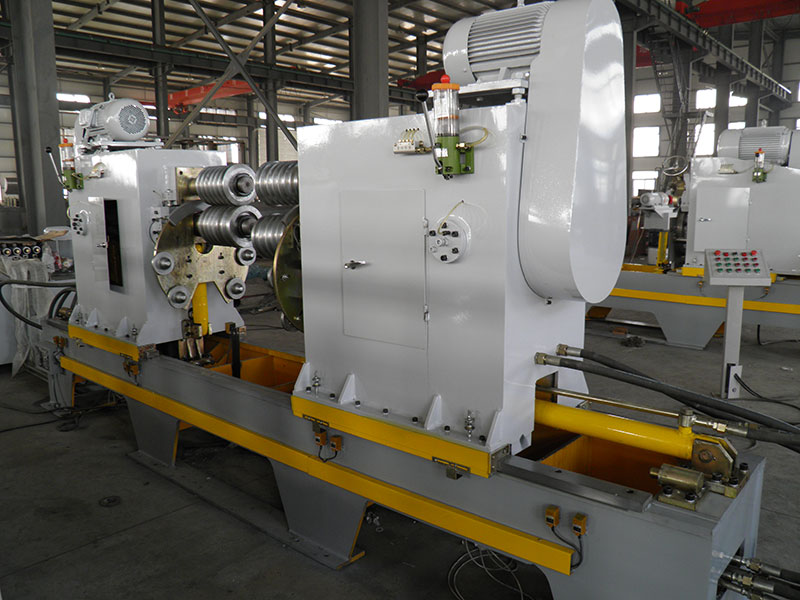

Corrugation (W Rib) Machine
Corrugation (W Rib) Machine

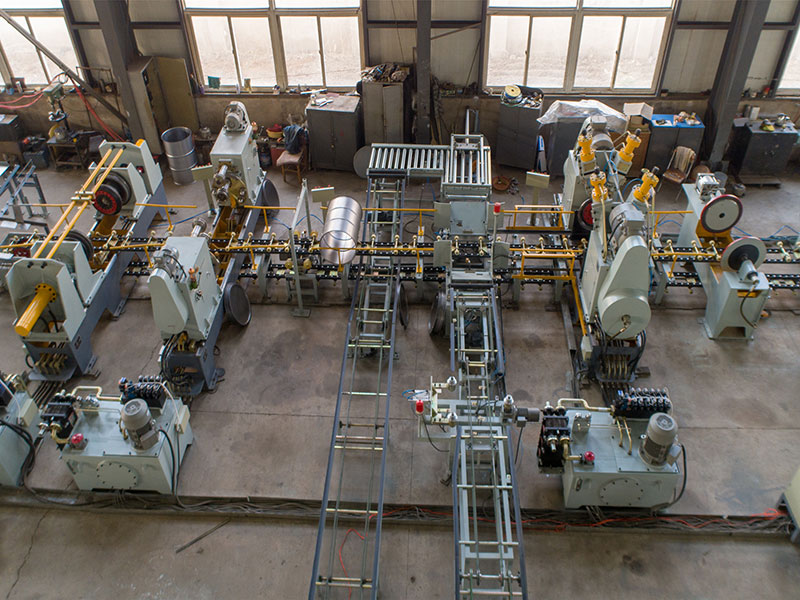

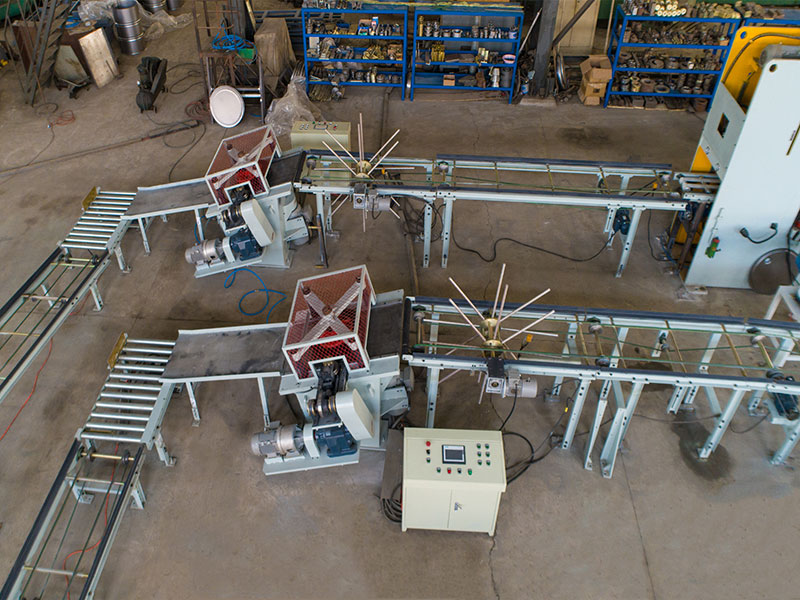

Auto Parts of Drum Machine Middle Section
Degreasing & Phosphorization Line

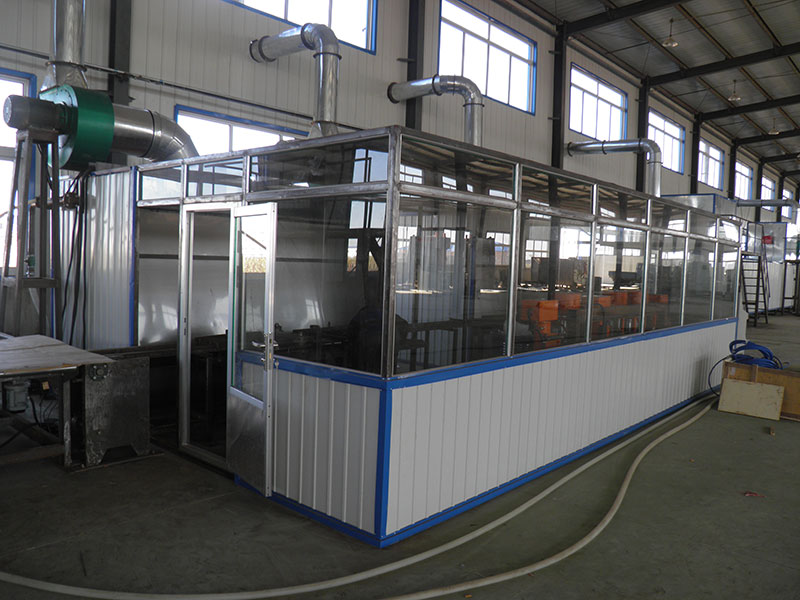

Painting Room

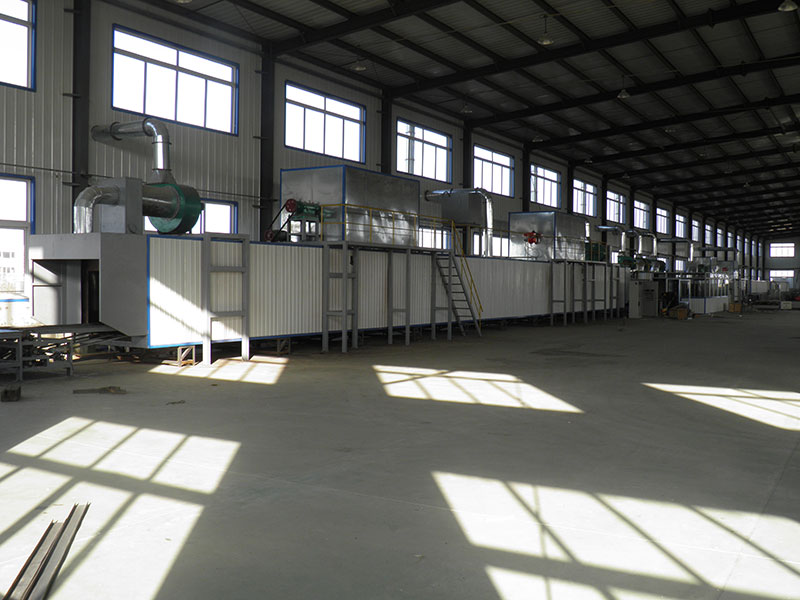

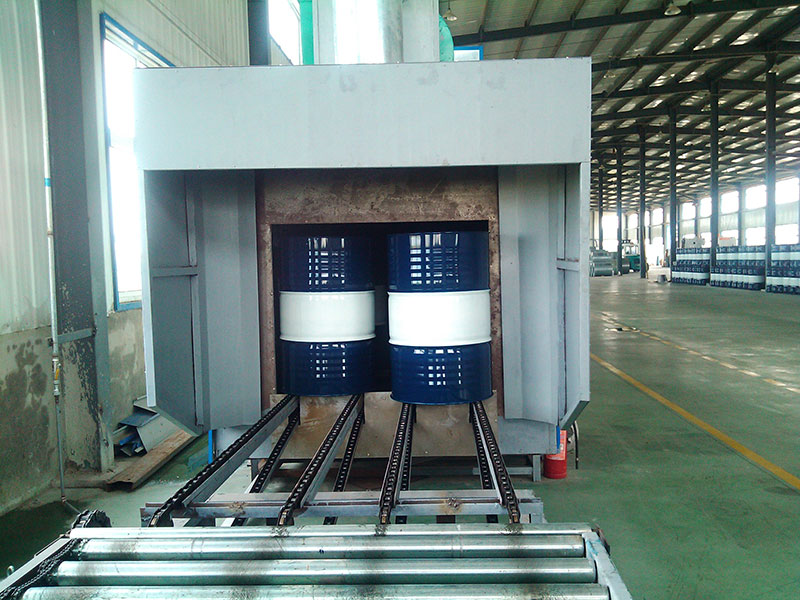

Drying Room after Painting
Bohai provides customization service for metal drum companies
1. Bohai offers barrel body sheets, metal steel drum covers and bottoms, steel drum plugs, drum hoop and other parts. Barrel making companies only needs to purchase steel barrel forming machine in middle section of high speed fully automatic steel drum production line, which fully meets the steel drum production capacity requirement, improves the quality of oil and food drum, and saves the initial investment. Steel barrels’ parts occupy small area, and are convenient to save. Purchasing parts instead of whole steel barrel packaging line can fully improves the site utilization and saves the production time.

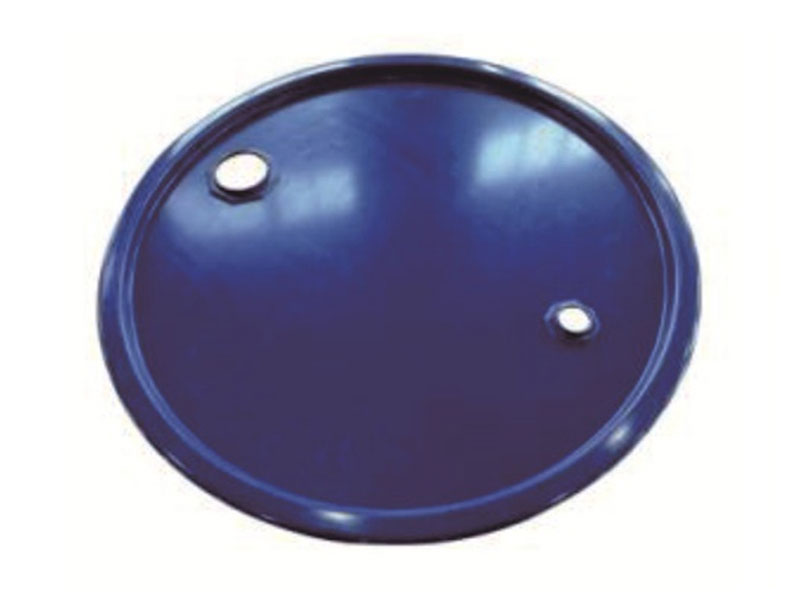

Drum Top Cover

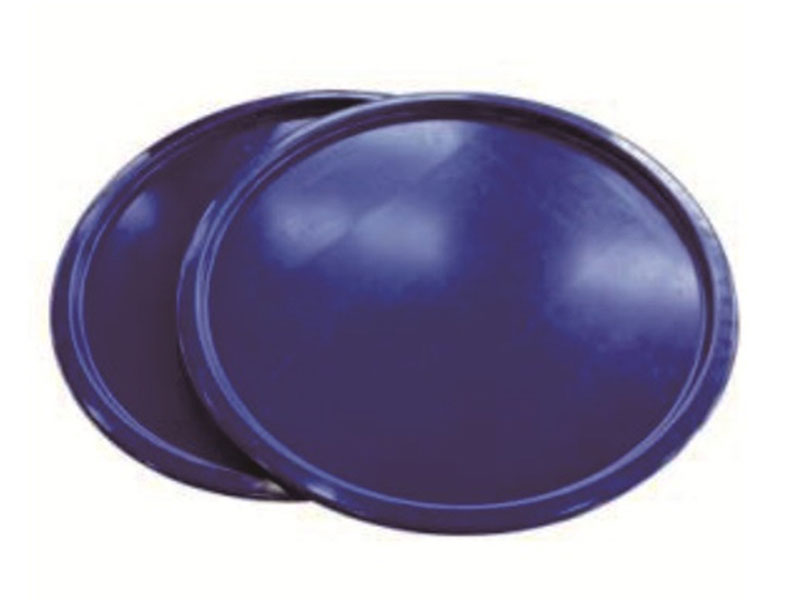

Drum Bottom

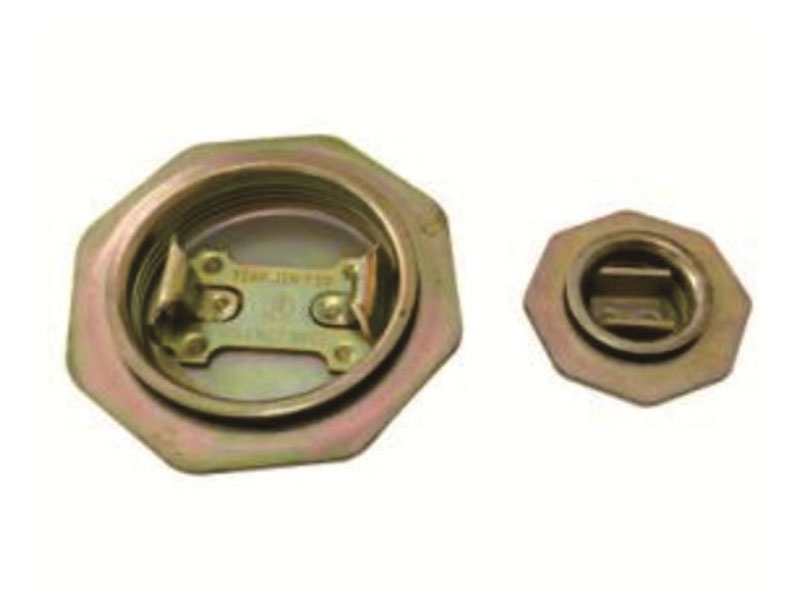

Drum Bung

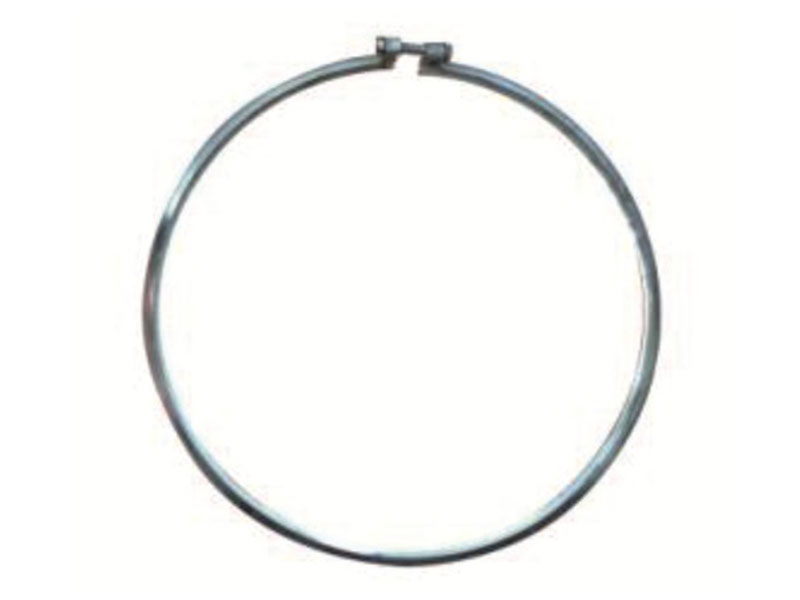

Drum Hoop

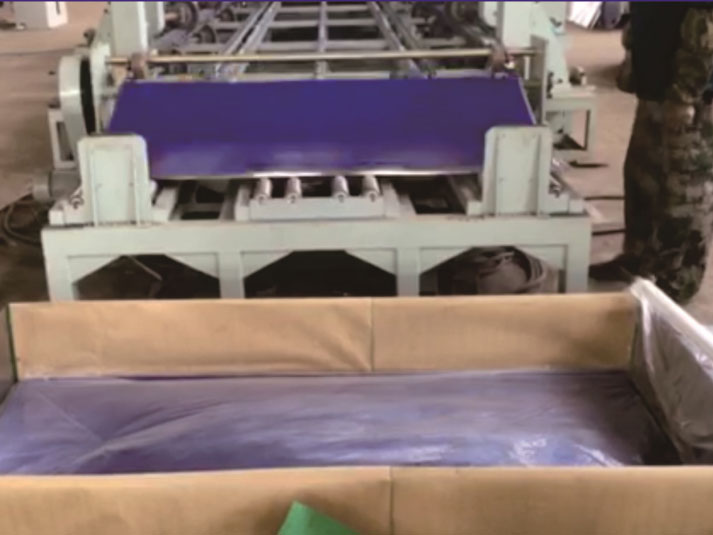

Drum Body Sheet
2. With automated steel drum production line as the basis, when coupled with steel drum expanding machine and asphalt steel drum making machine, barrel making factories could produce conical steel drums making equipment and bituminous barrel making equipment. In this way, barrel making factories possess automatic closed head steel drums, asphalt barrels, and conical steel barrels production capacity. In a long run, low production costs and high quality metal drums can help our clients to form a corporate brand.
Closed Head Drum

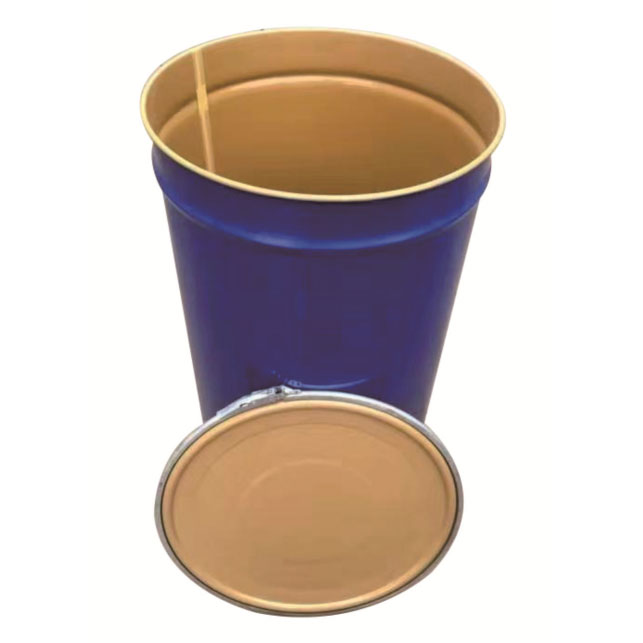

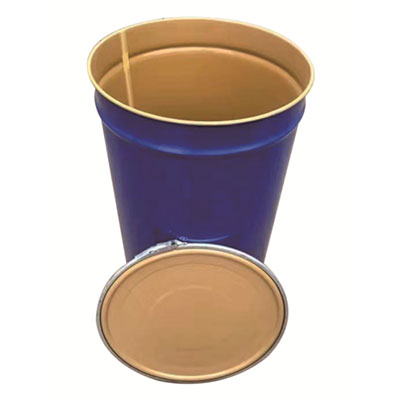

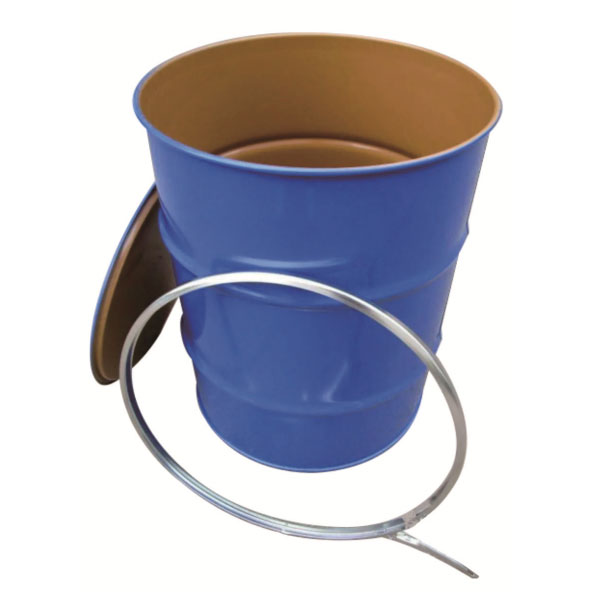

Open Head Drum

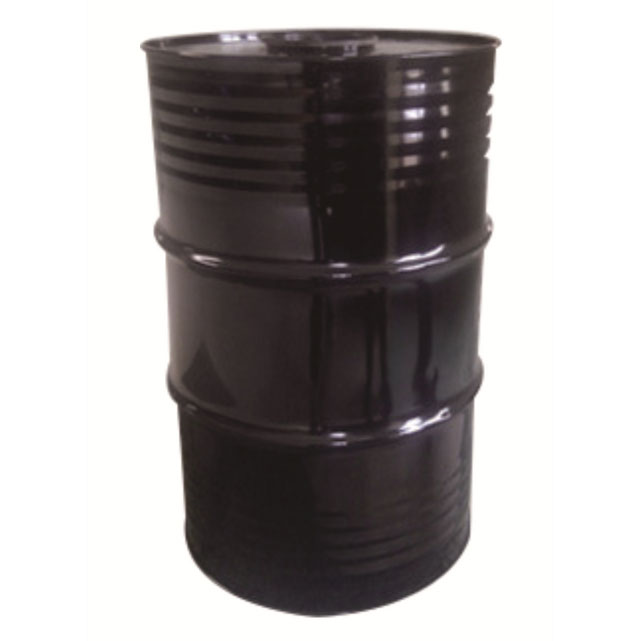

Bituminous Drum
Conical Drum
3. Metal steel drum production line has multiple manufacturing processes. When our clients, steel barrel production enterprises, offers Bohai their investment budget, production capacities and other customized requirements, we will offer them the most suitable steel barrel production line.
Automatic Hole Searching & Labeling Machine
A fully automatic vertical steel drum head label application machine is equipped in the steel drum production line. After the completion of drum filling, designated label or special logo is automatically applied on the drum cover, thus eliminating the possibility of the inefficiency and unsightliness brought on by manual operation.
Fully automatic hole searching and labeling machine is equipped in the steel drum production line. Its adoption allows to paste labels and patterns without labor involvement, and automatic counting and cycle operation.
Apply special assembly fixtures of steel drums, and use photosensitive quick drying atomic printing oil to paste quality certificates, labels, and special patterns.
Production Process
During the operation of 55 gallon steel drum production line, steel drums are transported with chains. When drums are lifted at the punching station, positioning device installed on the top of the steel drum will start its searching towards bung hole. After identifying the bung hole, double rod air cylinder leaves white labeling patterns on steel barrels before they being delivered to the conveying chain for next process, thus to ensure the cycle operation. The electrical part uses PLC system, consisting of manual and automatic control modes.
