Difference between BOHAI multi-shape arch plate forming machine & UBM (k-span machine, super k-span machine) made by MIC.

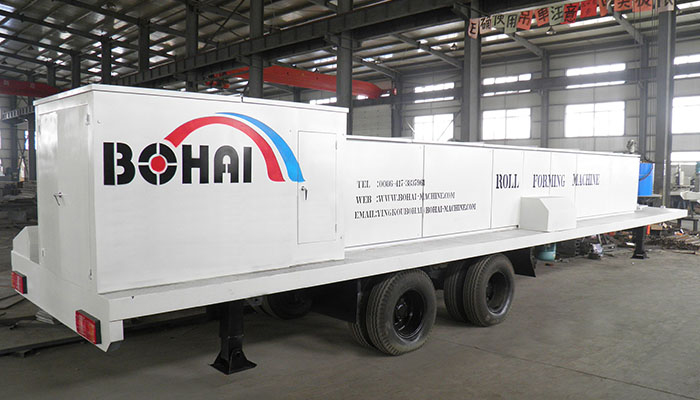

BOHAI multi-shape arch plate forming machine is vertical machine with triple axles. It can lower the cost of project by labour-saving. Mechanical control or hydraulic control is optional.
All the ultimate building machine made by MIC have triple axles, length is 10400mm, fully controlled by hydraulic.
Parameter of BOHAI multi-shape arch plate forming machine as follow:
Material of shaft: 45# high-quality steel, galvanized. Material of roller: 45# high-quality steel, quenched, hard chrome plating. Material of cutter: 12CrMoV, heat treatment. Machine adopts automotive rear bridge as the axle, equipped with tires of 900-20 size, can load more and has better impact resistance and damping effect.
K span machine made by MIC has all steel and burnished alumium construction, precision steel forming rollers with hard chrome plating.
BOHAI multi-shape arch plate forming machine is equipped with PLC, servo motor, and software which is designed by local engineer.

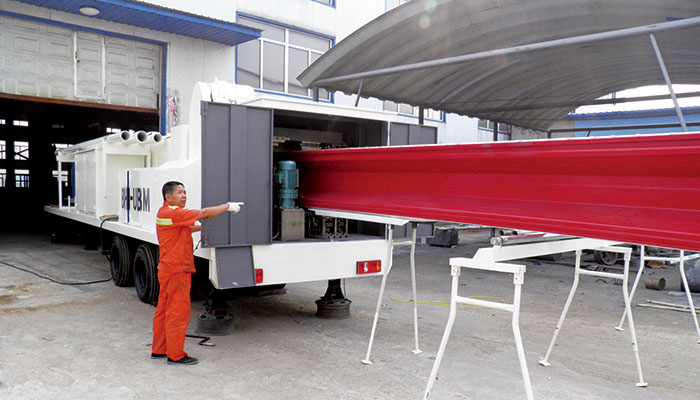

UBM(k span machine, super k span machine) made by MIC is fully controlled by software loaded on the machine.
BOHAI multi-shape arch plate forming machine has a simple structure, which is easy to operate, and easy for training.
Ultimate building machine made by MIC has a complex structure, the operator has to be trained professionally before operating.
Selling price of BOHAI arch plate forming machine is from US$100,000 to US$200,000.
Selling price of Super K span machine made by MIC is much higher than BOHAI arch plate forming machine.
|Main Technical Specifications|
|Size: 11000mmX2200mmX2100mm (with double axles and 8 tires)||Total Weight: About 10 tons|
|Thickness of Bending Leaf: 10mm||Cutting Material: 12CrMoV, heat treatment|
|Cutting Type: Hydraulic Cutting Device||Forming Type: Roll-formed and length-set cutting|
|Total Motor Power: 22.15KW Main Motor Power: 5.5KW Bending Power: 3.0KW+2.2KW Cutting Power: 3.0KW Hydraulic Station Power: 5.5KW Servo Power: 0.75KW Seaming Power: 1.1KW+1.1KW|
|Material of Rollers: 45# steel, quenched HRC 55~65, plated with hard chrome.||Material of Shafts: 45# steel, galvanized|
|Bearing: Made in Harbin||Step of Molding: 13+1|
|Width of Steel Sheet: Feeding width: 600mm Finished width: 305mm Utilization Ratio: 50.8%|
|Rolling Thickness: 0.6-1.5mm||Applicable Span: 5~20m|
|Working Speed: Straight Sheet: 15m/min Arch Sheet: 13m/min Seaming: 16m/min|
|Uncoiler: Coil Inner-diameter: 450mm ~ 650mm, Fixed Coil Max. Width: 600~620mm|
