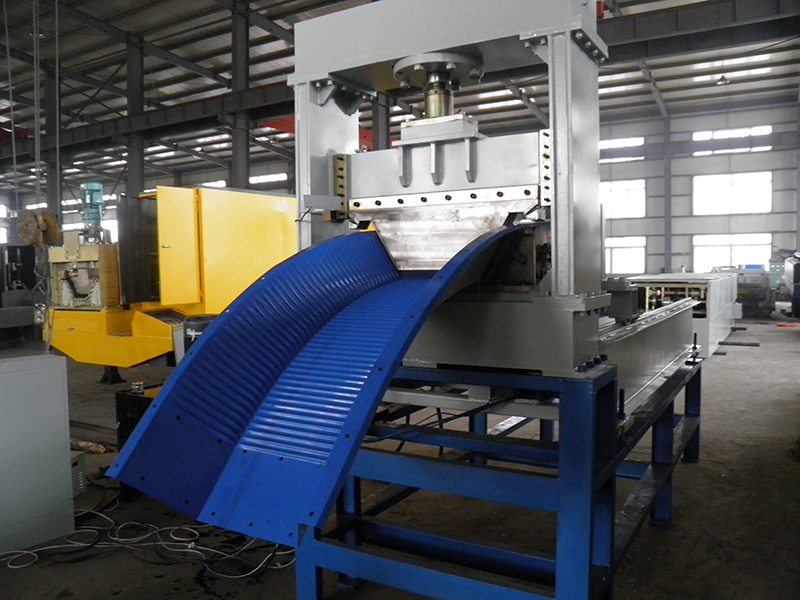

Curved Sheet Screw Jointed Equipment

  • Curved Sheet Screw Jointed Equipment
  • Curved Sheet Screw Jointed Equipment
  • Curved Sheet Screw Jointed Equipment
Send Inquiry
Features
  • The curved sheet screw jointed equipment is capable of making panels in different sizes based on the requirement of the project.
  • Once finished in the workshop, the product is allowed to be delivered to the construction site directly.
  • The panels jointed by our machine are very convenient for dismounting.
  • The panel makes the building with 100% available space, available in mounting with lighting, pipeline, ventilated devices, warming and cooling systems.
  • The building formed by the panels is removable.
Working Process
  • Building arches
  • Raising arches
  • Choosing the fit arches together
  • Adding the end walls
  • Establishing the foundation of the buildings
  • Transporting the finished curved sheets to construction site

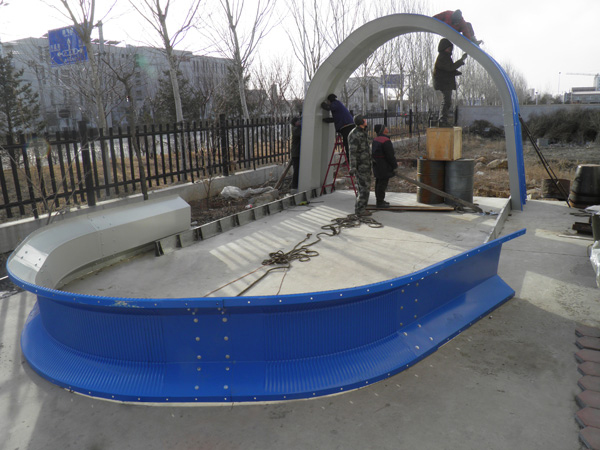

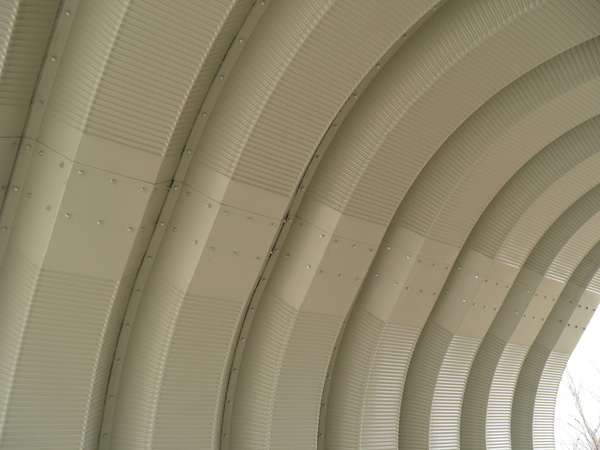

  • Jointing the curved sheets together
  • Hoisting and fastening the jointed curved sheets
  • Reinforcing the curved sheets with the foundation together
  • Building the gables at two sides.
  • Constructing the doors and windows of the buildings
Specification
  • Dimension: 35000mm×1500mm×1500mm
  • Weight: Around 20T
  • Shearing material: 12CrMoV
  • Shearing type: Mechanical
  • Total motor power: 25KW
  • Main motor: 7.5KW
  • Decoiler motor: 3.0KW
  • Leveling machine motor: 4.0KW
  • Shearing machine motor: 3.0KW
  • Hydraulic station power: 7.5KW
  • Roller material: 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating
  • Shaft material: 45# high-quality steel, galvanized
  • Stands of forming: 10
  • Feeding width: 1000mm
  • Effective width: 680mm
  • Using rate: 68%
  • Rolling thickness: 1.0-1.2mm
  • Suitable Span: 4m-24m
  • Decoiler: Load bearing: 8t

Equipment Configuration
8t Automatic feeding device (1 piece), Leveling machine (1 piece), Support platform (1 piece), Edge-punching (1set of mold), Ends-punching (1set of mold ), Shearing machine(1 piece), Forming machine (1 piece), Bending machine 1 piece (1set of mold), Hydraulic system, Electrical control system, Support for finished product, etc.

Technological Process
Loading (load & expand galvanized coil on decoiler) → Feeding & Leveling (prepare flat galvanized sheet for punching) → Edge-punching & Ends-punching on flat galvanized sheet → Shearing punched sheet → Roll forming sheared sheet → Bending Roll formed sheet

Equipment & Accessory
No.   Qty.
1 Decoiler 1 piece
2 Leveling machine 1 piece
3 Shearing machine 1 piece
4 Roll forming machine 1 piece
5 Hydraulic punching machine 1 piece
6 Molds 3 sets
7 Support platform 1 piece
8 Chain 3 pieces
9 Half section 3 pieces
10 Bearing 4 pieces
