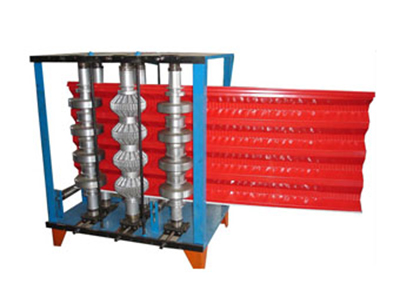

Flat Sheet Bending Machine
As a roll forming machine manufacturer in China, we are engaged in the production of flat sheet bending machines that are applicable in the bending of flat sheets to make curved plates. It can be used to curve plates having a minimum diameter of 1.2m. With a bending speed of 13.5m/min, it is a useful and productive flat sheet bending machine. It provides the right choice for your sheet bending needs.
Technical Parameters| Main Motor Power | 4kw |
| Hydraulic power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Feeding Power | 2.2kw |
| Step of Rollers | 2 |
| Total Weight | 3T |
| Diameter of Hydraulic Cylinder | 150mm |
| Length of Feeding Roll | 3m |
| Thickness of Panel | 0.3-0.8mm |
| Step of Feeding Roller | 4 |
| Size | 5×1.4×1.6m |
Bohai is a roll forming machine manufacturer located in Yingkou city, Liaoning province of China. We have more than 20 years of experience in supplying roll forming machines for our customers in Ukraine, Mexico, India, Romania, Iraq, Angola, Guinea and more countries. Besides flat sheet bending machines, we are able to satisfy your need of roof sheet forming machine, 840 Corrugated Sheet Roll Forming Machine, Glazed Tile Roll Forming Machine and more. Please contact us for more information!
