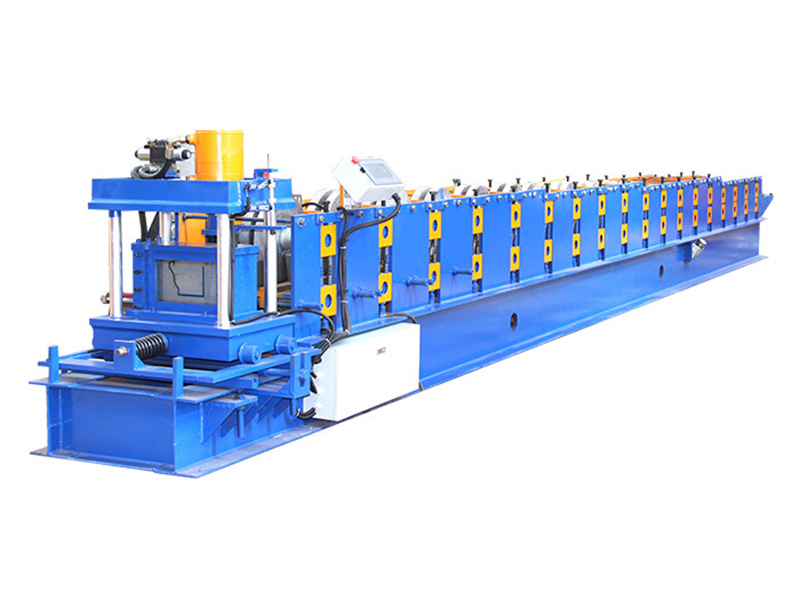

U Gutter Roll Forming Machine
| Uncoiler | passive uncoiling |
| Uncoiler load capacity | 4T |
| Machine structure | 300H steel, welded |
| Sidewall thickness | 16mm |
| Shaft diameter | 70mm |
| Main motor power | 5.5KW |
| Working speed | 8-10m/min |
| Hydraulic power | 4.0KW |
| pressure | 8-12Mpa |
| Hydraulic pump | gear pump |
| Cutting method | hydraulic cutting |
| Cutting blade material | Cr12 |
| Applicable sheet thickness | ≤1.2 mm |
| Infeed width | 400mm |
| Outfeed width | 230mm |
| Control system | PLC |
| Voltage | 380V, 50HZ, 3 phase |
| Machine dimension | 6200X1000X1200mm |
