SM-40 Spiral Steel Silo Forming Machine
Rx4.0m/m SM-40 Spiral Steel Silo Forming Machine is the forming machine of our circular steel plate storehouse (a metallic container) that we released in the market in 2005. It is a new SM-40 Spiral Steel Silo Forming Machine designed on the basis of the LIPP-SM40 machine from Germany. It has all the functions that the SM40 machine has. Additionally, it is made of a high-strength alloy steel structure, which is durable and can last a lifetime. Compared with SM40, it is easier to install, maintain and operate. This makes it more competitive in terms of its cost and service life.
Usage
To state it simply, our SM-40 Spiral Steel Silo Forming Machine is used to make circular metallic containers.
| Material | Steel plate |
| Width | 495 |
| Thickness | 2-4mm |
| Diameter of cylinder | 4-50m |
| Feed speed | 3.5-4.5m/min |
| Motor power | 27KW |
Working Process

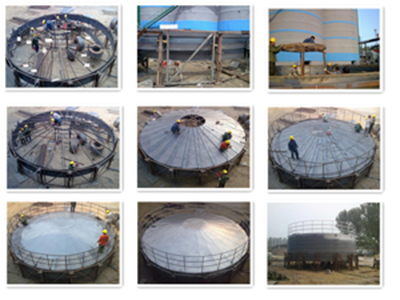

The steel strip that is about 2 to 4mm thick and 495mm wide will be used to form the silo with different diameters ranging from 4 to 50m. Generally, this material is merged thoroughly and suture spirally by 5 dedicated machines through 5 forming procedures in total.
Application

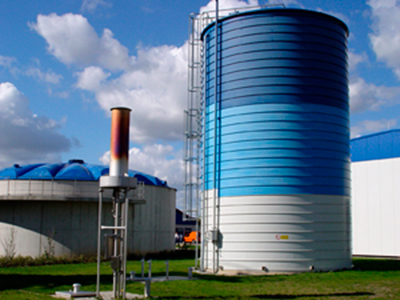

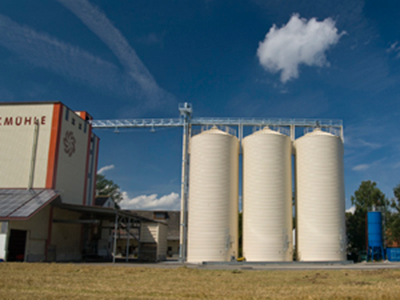

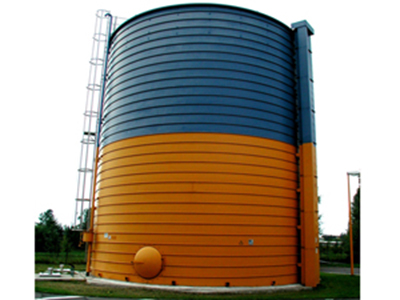

Our SM-40 Spiral Steel Silo Forming Machine makes cylinders that can be used in the food, brewing, petroleum, medicine, water curing and more industries. The manufactured cylinders can also be used as storage facilities for wheat, soybean, corn, flour, fly ash, sewage, chemical syrup, recycled water, among others.

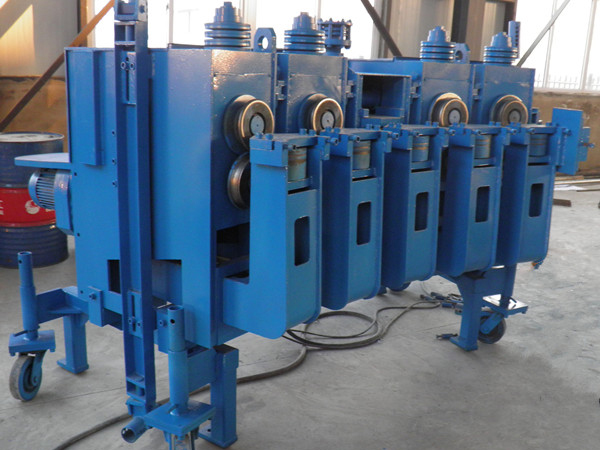

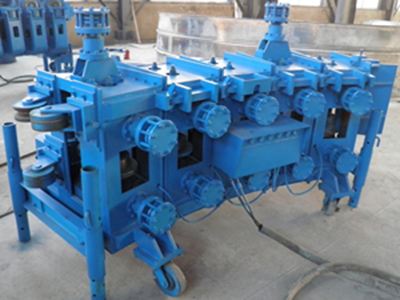

- Forming machine: Making the material bending and initial machine-shaping, meanwhile, it will bend the material to the required radius of curvature.

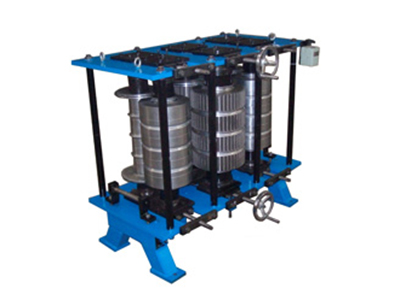

- Bending machine: Working with the materials bender.

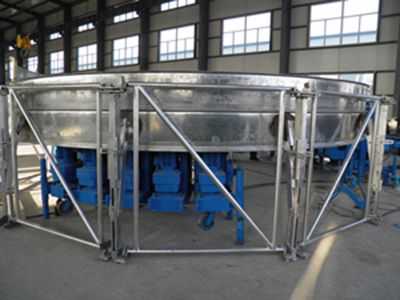

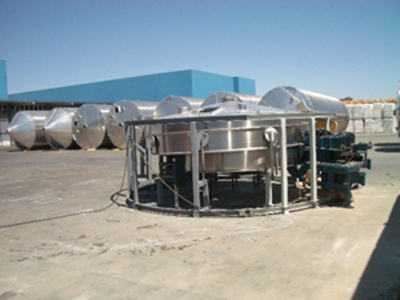

- Load bearing support: Giving the right diameter of silo, lifting the steel silo, enclosing the top of load bearing support rollers, it can support the spiral rising silo.

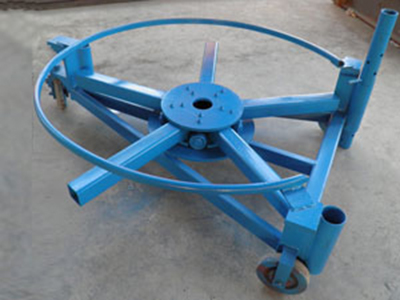

- Decoiler: Making the steel coils onto the decoiler, and making steel coils moving into the forming machine successfully.
- Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support working stably.
Yingkou Bohai Machinery Equipment Manufacture Co., Ltd. is a SM-40 Spiral Steel Silo Forming Machine manufacturer located in Yingkou city of Liaoning province, China. We have more than 20 years of experience in producing roll forming machines as well as Arch Sheet Roll Forming Machines, BH-span Arch Sheet Project, roll forming machines and other related products. Please feel free to contact us for more information.
