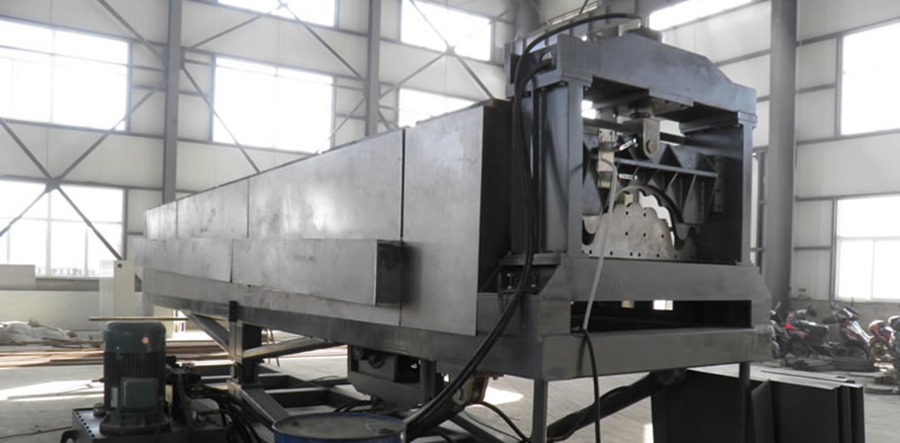

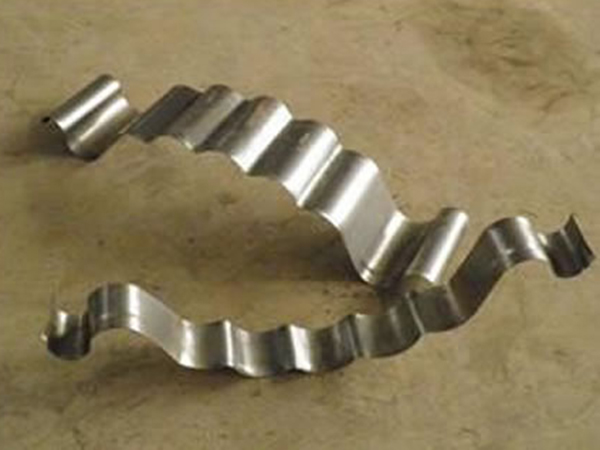

Arch Roof Roll Forming Machine
| Uncoiler | passive uncoiling |
| Load capacity | 10ton |
| Machine structure | welded structure of special shaped structural steel pipes and beams |
| Shaft diameter | 80mm |
| Motor power | 18.5KW (hydraulic motor) |
| Working speed | 6-10m/min |
| Forming roller | 10 rows |
| Material of forming roller | #45steel |
| Hydraulic main motor power | 7.5KW |
| Hydraulic pump | gear pump |
| Cutting method | hydraulic cutting |
| Cutting blade material | Cr12 |
| Applicable sheet thickness | 0.7-1.5mm |
| Infeed width | 1250mm |
| Outfeed width | 850mm |
| Length accuracy | ±2mm |
| Frequency converter | Panasonic |
| PLC control | Panasonic touch screen |
| Voltage | 380V, 50Hz, 3 phase |
Production Processes
Uncoiling → Guide feeding → Roll forming → Cut to length → Product outfeed
- Uncoiler
- Roll forming unit
- Hydraulic cutting unit
- Hydraulic station
- PLC control panel

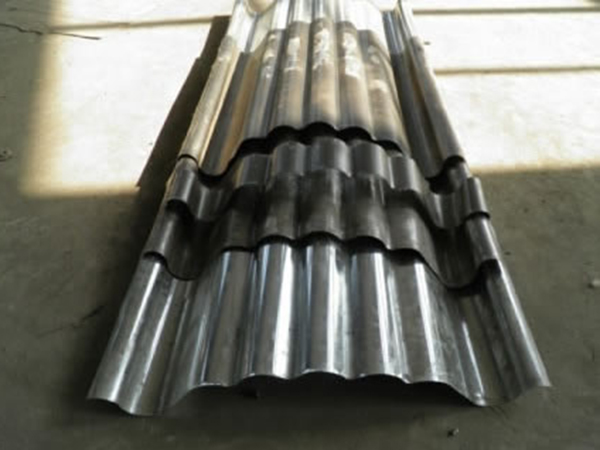

- Finished product stacking table
