Sandwich Panel Roll Forming Machine

This product has been discontinued and removed from our shelves.
  • Sandwich Panel Roll Forming Machine
  • Sandwich Panel Roll Forming Machine
  • Sandwich Panel Roll Forming Machine
  • Sandwich Panel Roll Forming Machine

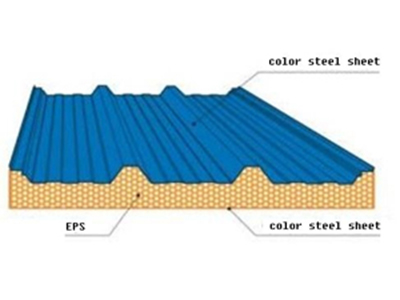

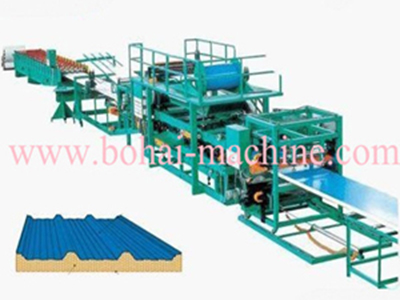

Our sandwich panel forming machine is a combination of the roll forming machine and the sandwich panel laminating system. With our sandwich panel forming machine , you can directly produce corrugated sandwich panels without the need for further lamination of the corrugated sheet, as is the case with the traditional corrugated machine. Additionally, the roll forming machine and the laminating system of this sandwich panel forming machine could be separated to work independently. The roll forming machine is made up of a feeding system, a roll forming system, and a cutting system. The laminating system, on the other hand, is composed of components responsible for decoiling, feeding, squeezing, heating, laminating, edge rolling, groove-making, edge milling, automatic cutting and a PLC control system. With an annual production rate of 500,000m2, this productive sandwich panel forming machine is an ideal sandwich panel solution for you to choose!

Product Feature and Usage
1. The sandwich panel roll forming machine works at the continuously variable speed controlled by the computer. It offers simple but stable operation.
2. Under the control of the computer, the length of the panel can be customized according to the demands of users. The computer controlled machine is able to accomplish the precise positioning, time display on the touch screen, automatic counting and correcting process.
3. This machine is versatile enough to form different products, like corrugated sandwich panel, simple corrugated sheet and sandwich panel. As for the corrugated composite plate, it allows the design and modification of the shapes as users require.
4. The sandwich panel roll forming machine plays a necessary part in the fabrication of the roof panel and wallboard for the factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, civil construction, stadium, cold storage buildings and so on.

Main Technical Specification
Size 45000mm×4500mm×2700mm
Working Speed 4500mm/min
Total Power 32kw
Working Voltage 380V
Density of EPS >18kg/m3
Suitable Thickness of Panel 0.3-0.8mm
Thickness of Inner Side 20-30mm
Core Material EPS, rock wool
Suitable Working Temperature About 25ºC

Application
Our sandwich panel forming machine is used to produce sandwich panels for use in the roof and walls of factories, warehouses, garages, gymnasium, exhibition centers, cinemas, theatres, civil constructions, stadiums, cold storages, etc.
