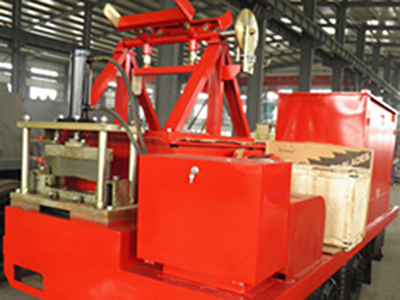

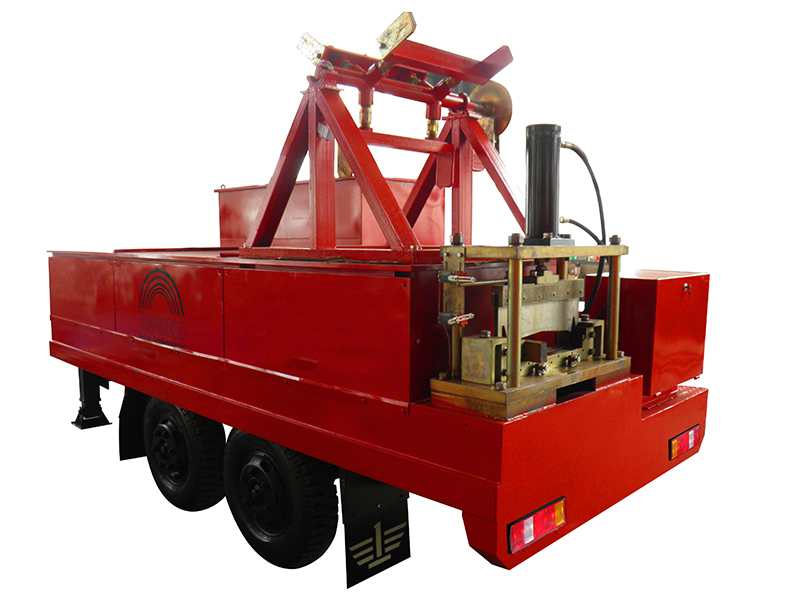

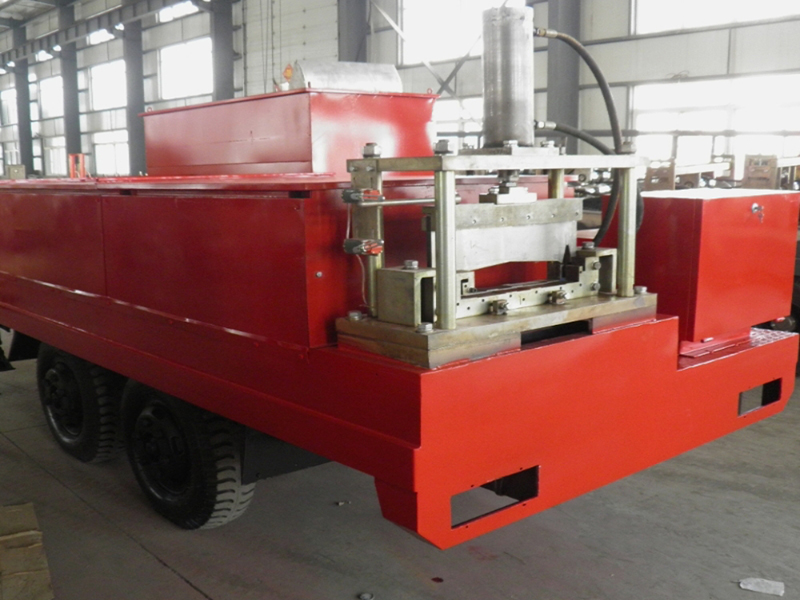

KR24 Roll Forming Machine
| Name | Amount |
| Decoiler | 1 |
| Sewing Machine | 2 |
| Collection Table | 1 |
| Clamp | 4 |
| Bearing (208#) | 4 |
| Drive Chain | 3 |
| Chain Link | 3 |
| Half Section | 3 |
| Super Pliers | 1 |
| Metal Scissors | 1 |
| Wrench | 1 |
| Travel Switch | 1 (set) |
- Chassis: 250mm U steel welded structure
- Forming type: Chain drive
- Diameter of axle: ¢65mm
- Chain:16A
- Forming motor power: 5.5kw
- Forming speed: 8-15m/min
- Forming rollers: 12
- Roller material: 45# steel, coated hard chrome
- Thickness of coated hard chrome: 0.05mm
- Hydraulic station motor: 3kw
- Hydraulic oil pump: Gear pump
- Cutting type: Hydraulic cutter
- Material of cutting part: Cr12, heat treatment HRC 58°-60°
- Thickness of coils: 0.5-1.3mm
- Length scale precision: ±2mm
- Transducer: YASKAWA
- Controlling system: PLC, touch screen
- Power: 220V 60Hz, 3 phase, 15kw electric generator
- Size: 5500mm×1500mm×2000mm
- Weight: 5 tons
