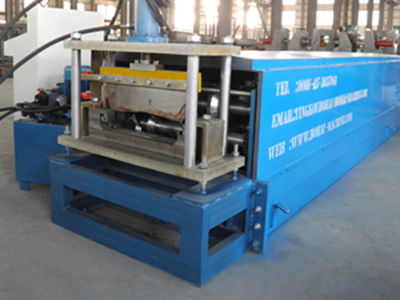

KR18 Roll Forming Machine
| Name | Amount |
| Decoiler | 1 |
| Sewing machine | 2 |
| Collection table | 1 |
| Clamp | 4 |
| Bearing ( 208#) | 4 |
| Drive chain | 3(run) |
| Chain link | 3 |
| Half Section | 3 |
| Super Pliers | 1 |
| Metal Scissors | 1 |
| Wrench | 1 |
| Travel Switch | 1 ( set) |
- Chassis: 250mm U-steel structural steel welding
- Forming type: Chain drive
- Diameter of axle:￠65mm
- Chain: 16A
- Forming motor power: 5.5kw
- Forming speed: 8-15m/min

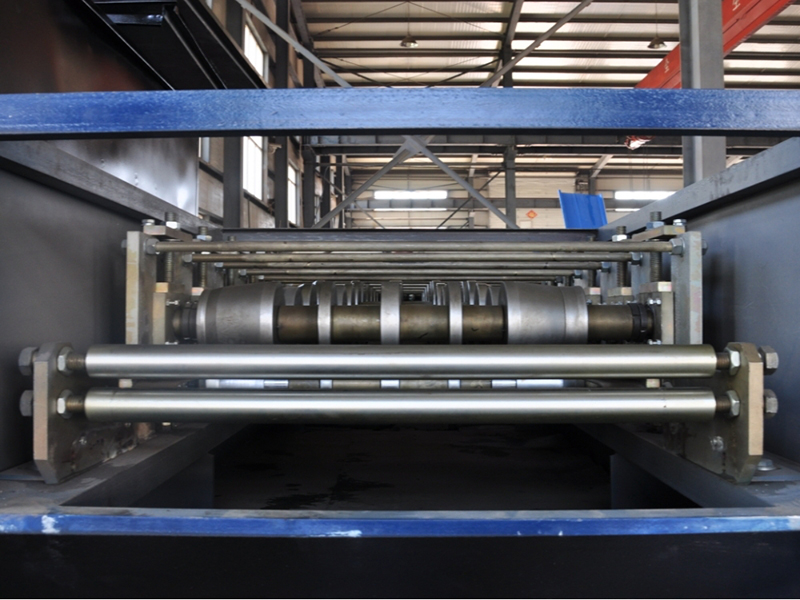

- Forming rollers: 12 steps
- Roller material: 45#steel, coated hard chrome
- Thickness of coated hard chrome: 0.05mm
- Hydraulic station motor: 3kw
- Hydraulic oil pump: Gear pump
- Cutting type: Hydraulic cutter
- Material of cutting part: Cr12, heat treatment HRC58℃-60℃
- Thickness of coils: 0.5-1.3mm
- Length scale precision: ±2mm
- Transducer: YASKAWA
- Controlling system: PLC, touch screen
- Power: 220V 60HZ 3 phase, 15KW electric generator
- Size: 5500mmx1500mmx2000mm
- Weight:5 tons
