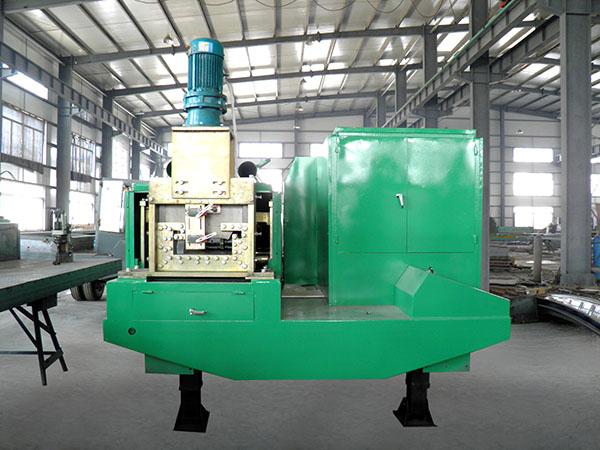

BH-1220-800 Arched Roof Sheet Forming Machine
The BH-1220-800 arched roof sheet forming machine has hydraulic and mechanical cutting ways. It has rigid shafts and its solids rollers are made of 45# steel plated with hard chromium. The arch sheet building machine has manual and automatic controlling system. It has helping hand wheel and counter used in adjustments for the arch sheet bending that simplifies operation.
The arch sheet roll forming machine operates with a 2 Kg hoisting tool that has opportune install and uninstall system. Its arch shaping leaf is 10mm thick, and the process for the arch shaping leaf is computer controlled. Finished sheets can be measured electronically or mechanically by the measurement instrument of the arch sheet building machine. We are open to customers' designing projects. Please contact us for further information.
| Main Technical Specifications | |
| Size | 11650mm×2230mm×2300mm |
| Feeding width | 1220mm |
| Proper span | ≤42m |
| Total weight | About 15000kg |

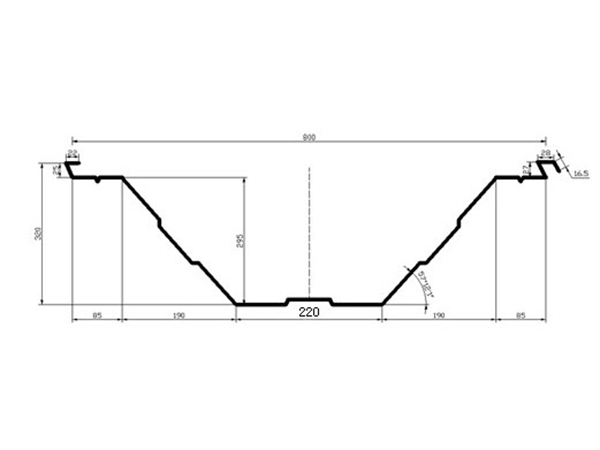

| Effective width | 800mm |
| Sheet operating factor | 65.6% |
| Total power | 18.9kw |
| Cutting power | 4.0kw |
| Forming power | 7.5kw |
| Bending power | 3.0kw+1.1kw×2 |
| Sewing power | 2.2kw |
| Controlling system | PLC and manual |
| Cutting mode | Mechanical cutting |
| Depth of the groove | 380mm |
| Material of roller shaft | 45# steel, galvanized |
| Material of rollers | 45 # steel, quenched with hard chrome |
