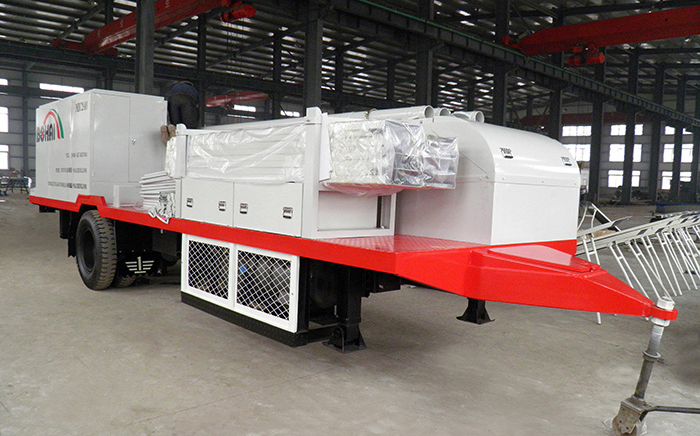

BH-914-700 Arched Roof Sheet Forming Machine
Bohai has been a roll forming machine manufacturer and supplier since 2000. With more than 20 years of experience in producing roll forming machines, we have the capacity to produce high quality Arch Sheet Roll Forming Machines, BH-span Arch Sheet Project, SM-40 Spiral Steel Silo Forming Machine s, roll forming machines and more. We sincerely invite you to visit our company and know more about our Arch Sheet Roll Forming Machine.
| Main Technical Specifications | |
| Size | 8900mm×2230mm×2300mm |
| Feeding width | 914mm |
| Proper span | ≤22m |
| Total weight | About 10000kg |

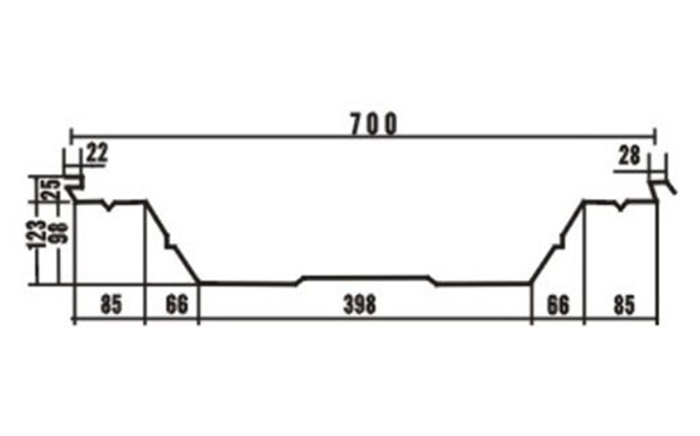

| Effective width | 700mm |
| Sheet operating factor | 76.6% |
| Total power | 17.9kw |
| Cutting power | 3.0kw |
| Forming power | 7.5kw |
| Bending power | 3.0kw+1.1kw×2 |
| Sewing power | 2.2kw |
| Controlling system | PLC and manual |
| Cutting mode | Mechanical cutting |
| Depth of the groove | 123mm |
| Material of roller shaft | 45# steel, galvanized |
| Material of rollers | 45 # steel, quenched with hard chrome |
- The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
- The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
- The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
- Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
- Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
- Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
