BH-600-305 Arch Sheet Roll Forming Machine
Yingkou Bohai Color Steel Sheet Forming Equipment Co., Ltd has been specializing in the manufacture of Arch Sheet Roll Forming Machines since 2000. Located in Yingkou, Liaoning province, we benefit from convenient transportation facilities, enabling us to offer our clients Arch Sheet Roll Forming Machines at low prices. Please contact us for more information!
| Main Technical Specifications | |
| Size | 8900mm×2230mm×2200mm |
| Feeding width | 600mm |
| Maximum span | ≤35m |
| Total weight | About 10000kg |

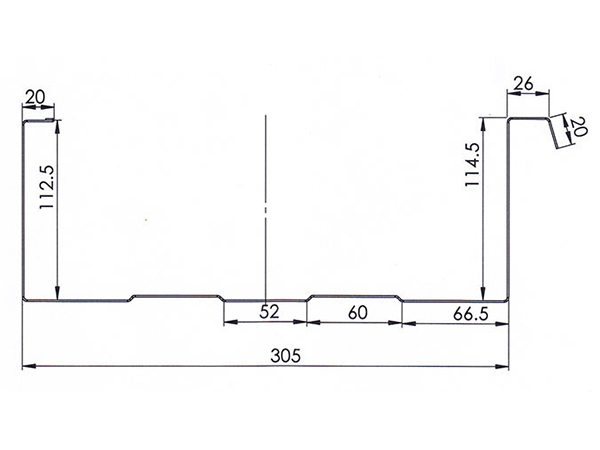

| Effective width | 305mm |
| Sheet operating factor | 51% |
| Total power | 15.2kw |
| Main motor power | 5.5kw |
| Cutting power | 3.0kw |
| Bending power | 3.0kw + 1.5kw |
| Sewing power | 1.1kw + 1.1kw |
| Controlling system | PLC and Manual |
| Cutting mode | Mechanical cutting |
| Depth of the groove | 109mm |
| Material of roller shaft | 45# steel, galvanized |
| Material of rollers | 45 # steel, quenched with hard chrome |
- Our machine's rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
- The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
- The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
- Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
- Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
