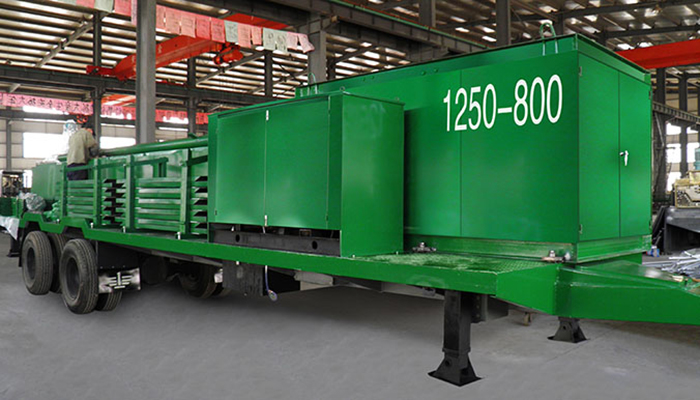

BH-1250-800 Arched Roof Sheet Forming Machine

  • BH-1250-800 Arched Roof Sheet Forming Machine
  • BH-1250-800 Arched Roof Sheet Forming Machine

Bohai has been engaged in the production of Arch Sheet Roll Forming Machines since 2000. Our roll Arch Sheet Roll Forming Machine has the following features: high speed, good efficiency, stable performance, as well as low cost. It sells well in many countries, such as Ukraine, Mexico, Romania, India, UAE, Iraq, Angola, Guinea and more. Our Arch Sheet Roll Forming Machine has given us a good reputation among our customers. Please contact us, and we will ensure that we offer you high quality machines at competitively low prices.

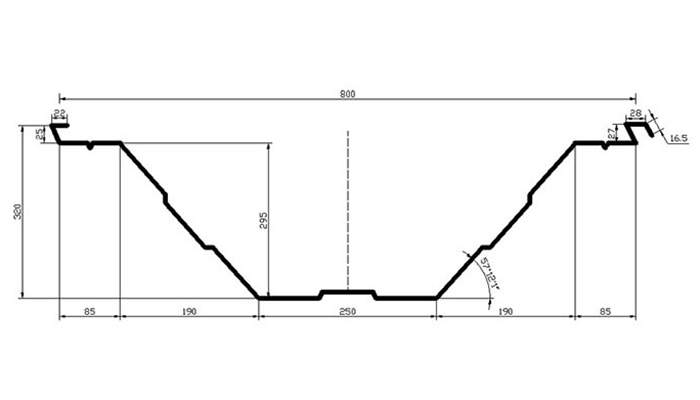

Main Technical Specifications
Size 11650mm×2230mm ×2300mm
Feeding width 1250mm
Proper span ≤45m
Total weight About 15000kg
Effective width 800mm
Sheet operating factor 64%
Total power 18.9kw
Cutting power 4.0kw
Forming power 7.5kw
Bending power 3.0kw + 1.1kw×2
Sewing power 2.2kw
Controlling system PLC and Manual
Cutting mode Mechanical cutting
Depth of the groove 320mm
Material of roller shaft 45# steel, galvanized
Material of rollers 45 # steel, quenched with hard chrome
Characteristics
  • Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
  • Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
  • The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
  • The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
  • Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
  • The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
