Bohai is engaged in the production of a wide rage of roll forming machines such as Arch Sheet Roll Forming Machines, SM-40 Spiral Steel Silo Forming Machine s, BH-span Arch Sheet Project and more. These roll forming machines are used applications involving the construction of workshops, storage facilities, dinner halls, markets, farms, garages, bus stations, just to name a few. For more information about our Arch Sheet Roll Forming Machine, please feel free to contact us directly.

Main Technical Specifications
Size 8900mm×2230mm×2300mm
Feeding width 1000mm
Proper span ≤22m
Total weight About 12000kg
Effective width 750mm
Sheet operating factor 75%
Total power 18.9kw
Cutting power 4.0kw
Forming power 7.5kw
Bending power 3.0kw+1.1kw×2
Sewing power 2.2kw
Controlling system PLC and manual
Cutting mode Mechanical cutting
Corollary equipment Equipped with generator

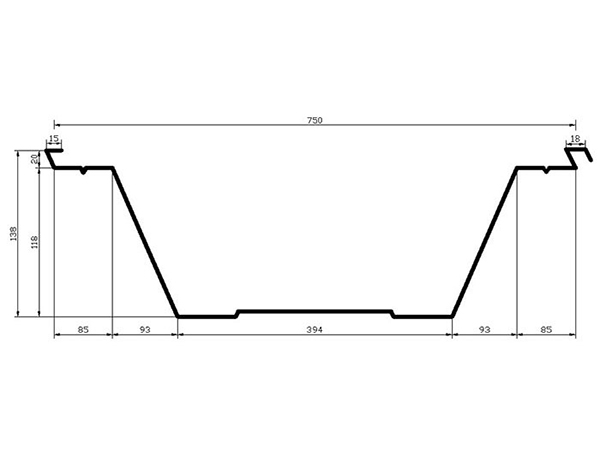

Depth of the groove 138mm
Material of roller shaft 45# steel, galvanized
Material of rollers 45 # steel, quenched with hard chrome
Characteristics
  • The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
  • The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
  • The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
  • Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
  • Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
  • Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
