BH-1000-610 Arched Roof Sheet Forming Machine
Yingkou Bohai Machinery Equipment Manufacture Co., Ltd. has been a BH-span Arch Sheet machine manufacturer in China since 2000. We are capable of satisfying you demands for BH-span Arch Sheet machines, BH-span Arch Sheet Project, roll forming machines, and Colored Steel Coils. You can trust these products, which come from our more than 20 years of dedication to quality. Please feel free to contact us!
| Main Technical Specifications | |
| Size | 11650mm×2230mm×2300mm |
| Feeding width | 1000mm |
| Proper span | ≤39m |
| Total weight | About 15000kg |

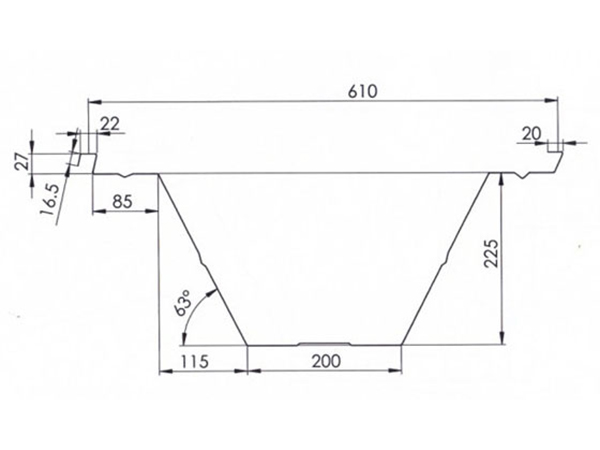

| Effective width | 610mm |
| Sheet operating factor | 61% |
| Total power | 18.9kw |
| Cutting power | 4.0kw |
| Forming power | 7.5kw |
| Bending power | 3.0kw+1.1kw×2 |
| Sewing power | 2.2kw |
| Step of rollers | 14 steps |
| Cutting mode | Mechanical cutting |
| Depth of the groove | 243mm |
| Material of roller shaft | 45# steel, galvanized |
| Material of rollers | 45 # steel, quenched with hard chrome |
- Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
- The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
- Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
- The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
- The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
- Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
