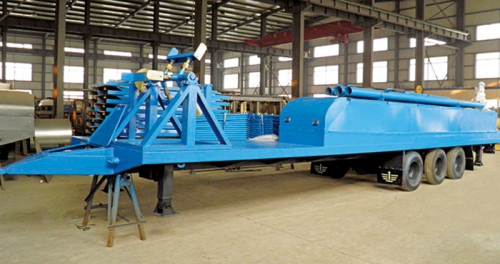

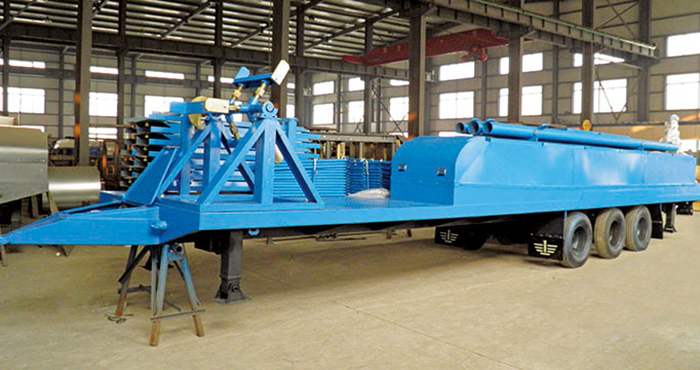

BH-1000-680 Arched Roof Sheet Forming Machine
Yingkou Bohai Machinery Equipment Manufacture Co., Ltd. produces, and sells roll forming machines after carrying out research on the products. They include Arch Sheet Roll Forming Machines, arch sheet molding machines, flat sheet molding machines and more. You can trust Bohai, which is a professional Arch Sheet Roll Forming Machine manufacturer with more than 20 years of experience. Please contact us and we will help you find the exact machine you are looking for!
| Main Technical Specifications | |
| Size | 8900mm×2230mm×2300mm |
| Feeding width | 1000mm |
| Proper span | ≤38m |
| Total weight | About 12000kg |

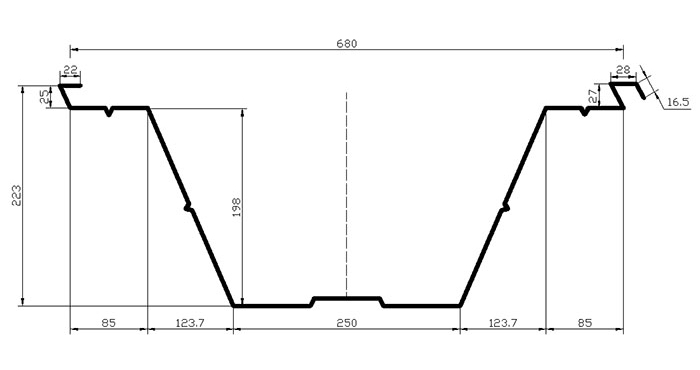

| Effective width | 680mm |
| Sheet operating factor | 68% |
| Total power | 18.9kw |
| Cutting power | 4.0kw |
| Forming power | 7.5kw |
| Bending power | 3.0kw+1.1kw×2 |
| Sewing power | 2.2kw |
| Controlling system | PLC and manual |
| Cutting mode | Mechanical cutting |
| Depth of the groove | 223mm |
| Material of roller shaft | 45# steel, galvanized |
| Material of rollers | 45 # steel, quenched with hard chrome |
- Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
- The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
- Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
- The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
- Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
- The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
