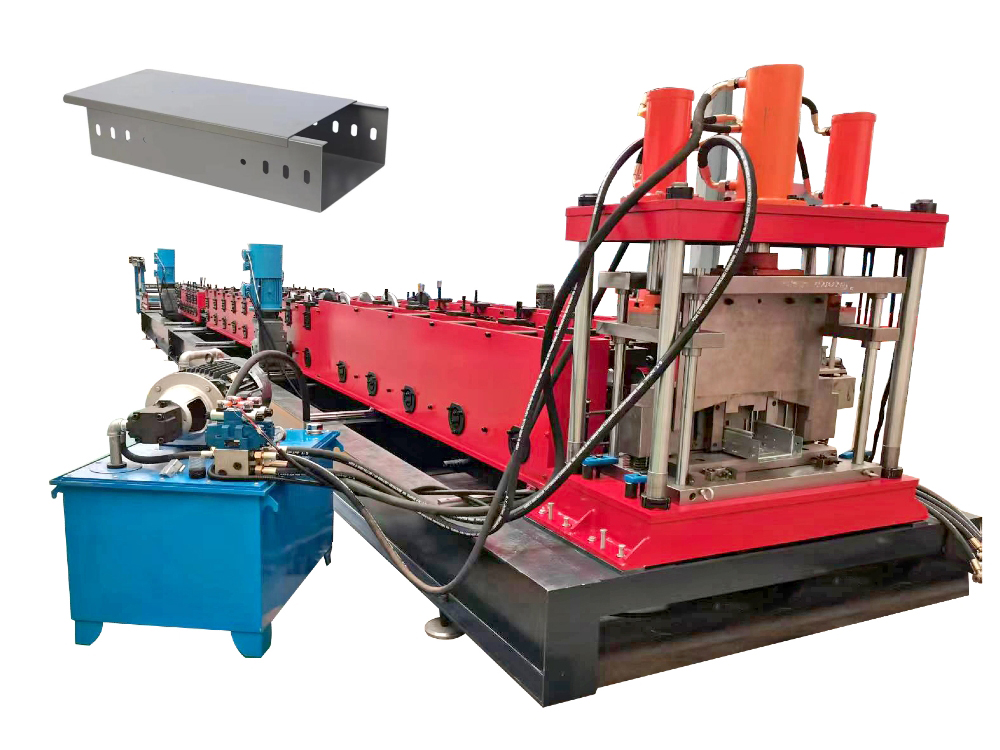

Cable Tray Roll Forming Machine

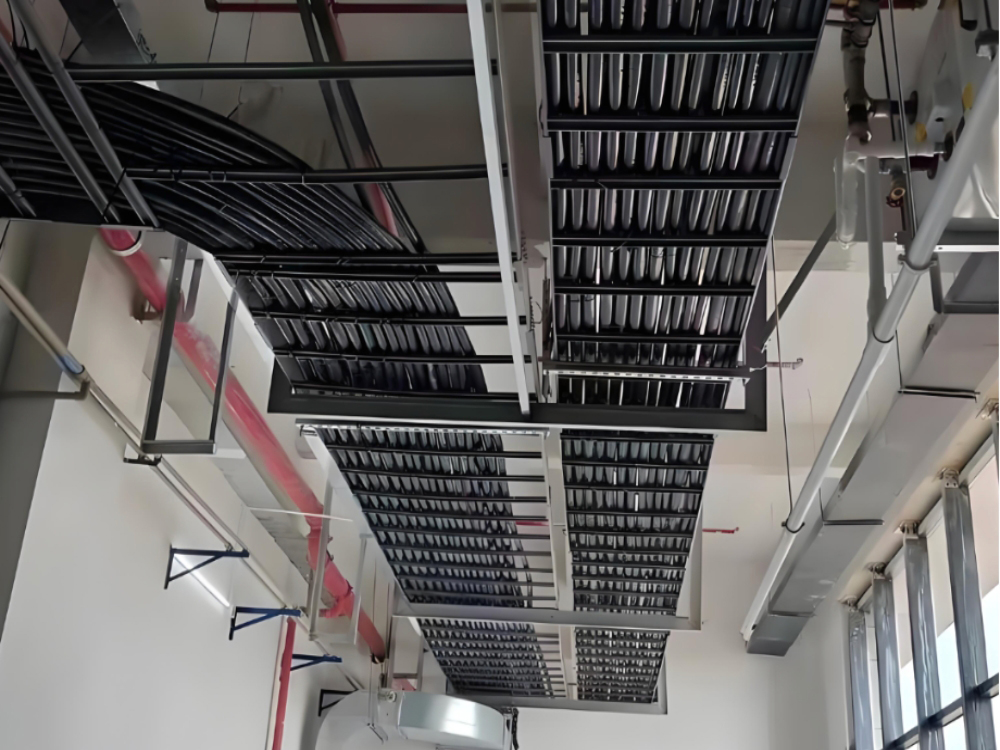

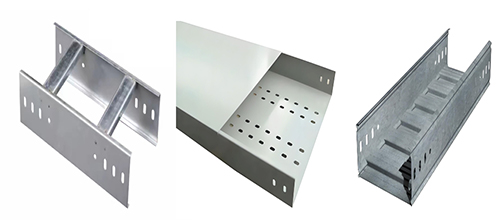

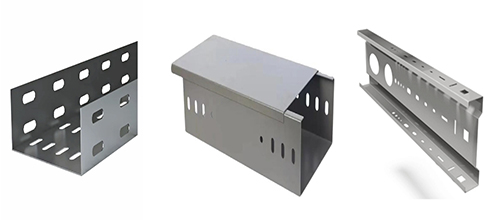

The cable tray roll forming machine is used to produce trough-type, tray-type, ladder-type, and other cable tray products. It supports customized tray bottom widths of 100–600 mm and heights of 50–150 mm, with 18–22 forming stations to maintain stable forming accuracy within ±0.2 mm.
The line adopts PLC control and an automatic punching system, integrating decoiling, leveling, roll forming, punching, cutting, and stacking into a complete production process. Production speed can reach 12–15 m/min, with optional customer logo embossing and fast changeover for different specifications.
Bohai offers more than 20 series of related equipment for construction, electrical, new energy, and other industries. The machine supports sheet thicknesses of 0.5–3 mm and non-standard customization, making it suitable for projects with high requirements for accuracy and stability.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 0.7-1.5mm (customizable) |
| Feeding Width | 500-1000mm (customizable) |
| Effective Width | Height 50-120mm Width 100-600mm (adjustable) Customizable |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 35×2×2m |
| Machine Weight | 6-10t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Total Equipment Capacity | 65kW |
| Leveling Device | |
| Leveling Rollers | 7 Step |
| Leveling Rollers Diameter | Ø96mm, 45# Steel (finish turning, quenching and tempering) |

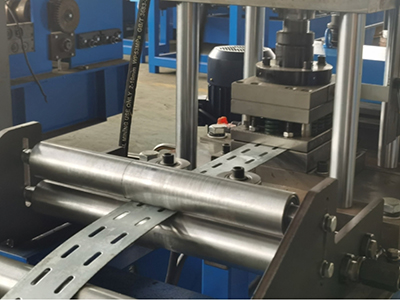

| Punching Device | |
| Punching Type | Press punching/hydraulic punching (optional) |
| Punching Mold Material | Cr12 (quenched to HRC 58-62) |
| Cutting Device | |
| Cutting Method | Front Fully Automatic Hydraulic Cutting |
| Cutting Blade Material | 9CrSi |

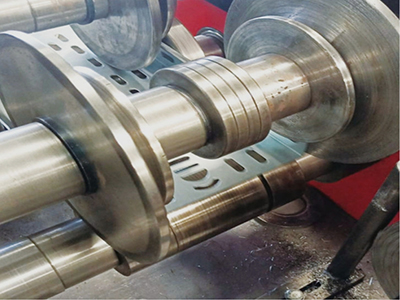

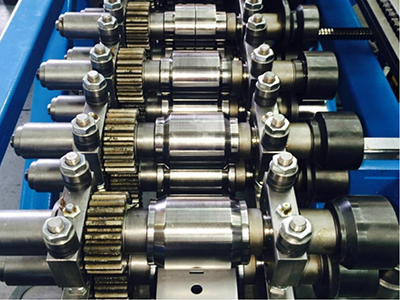

| Forming Machine | |
| Main Shaft Material | Diameter: Ø100mm Material: 45# steel (finish turning) |
| Roller Material | Cr12 (quenched to HRC 58-62) |
| Forming Stations | 20-30 stations |
| Forming Machine Motor Power | 15-30kW |
| Forming Speed | 8-30m/min |
(choose a standard profile, or provide your own drawing)
Process
Decoiling → Leveling and Punching → Front Cutting → Material Feeding → Roll Forming → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Leveling and Punching Device | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Main Roll Forming Machine | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
