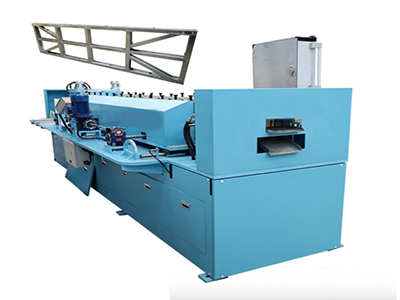

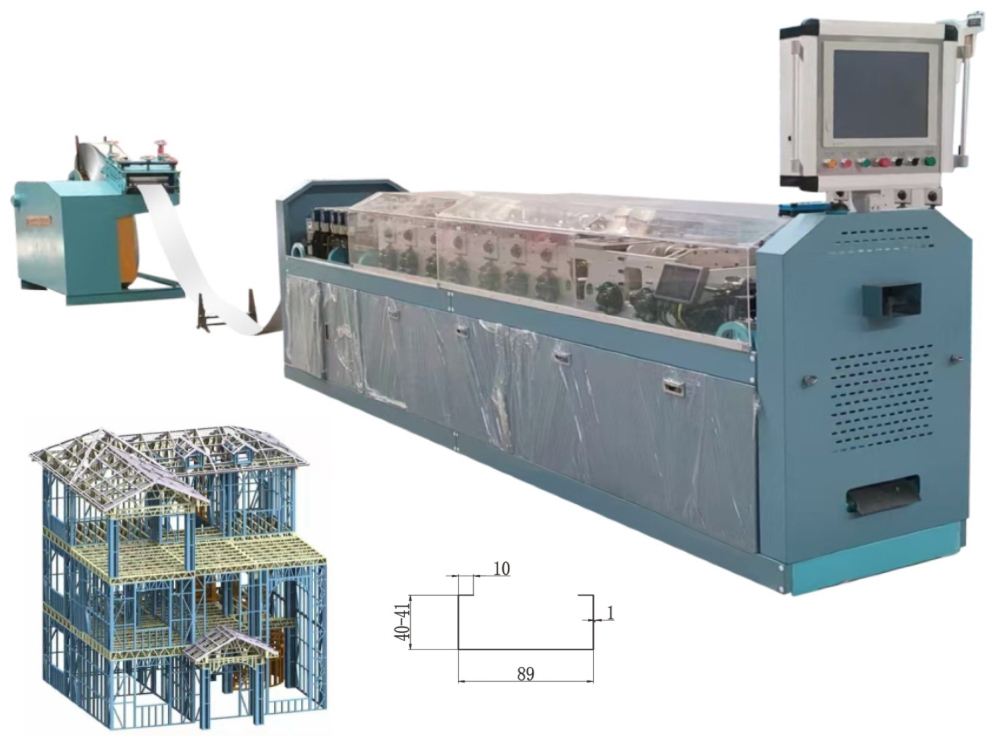

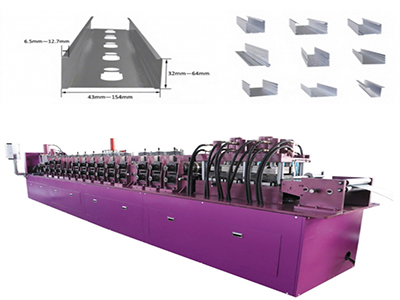

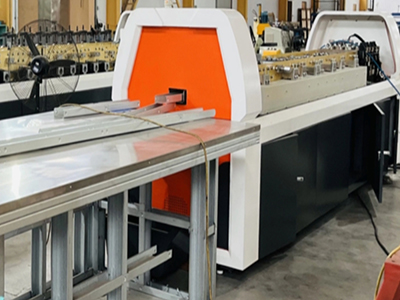

Light Gauge Steel Framing Machine

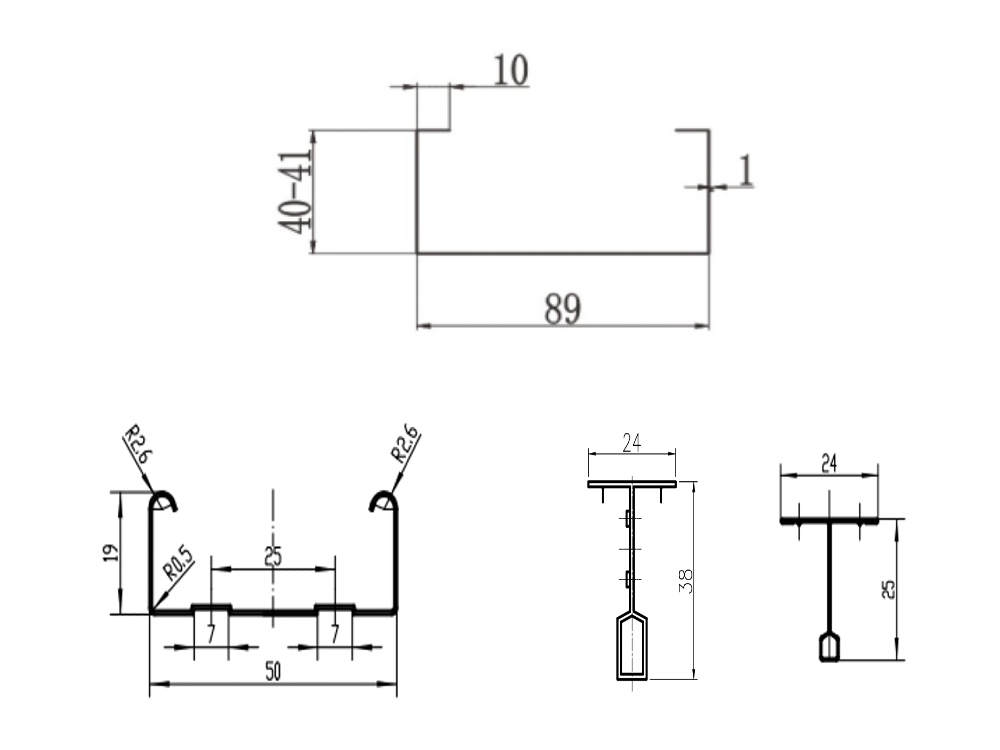

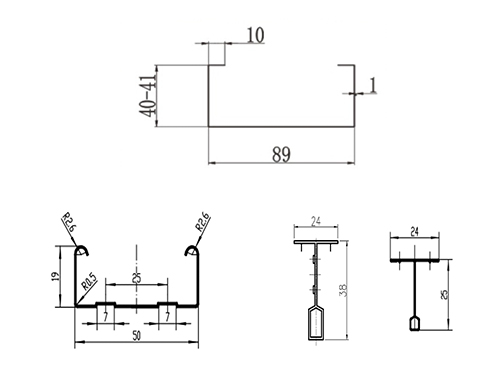

The light gauge steel framing machine produces integrated C and U light steel framing profiles with a standard 89 × 41 mm section. It works with VERTEX BD design software, allowing production data to move smoothly from digital modeling to automated manufacturing.

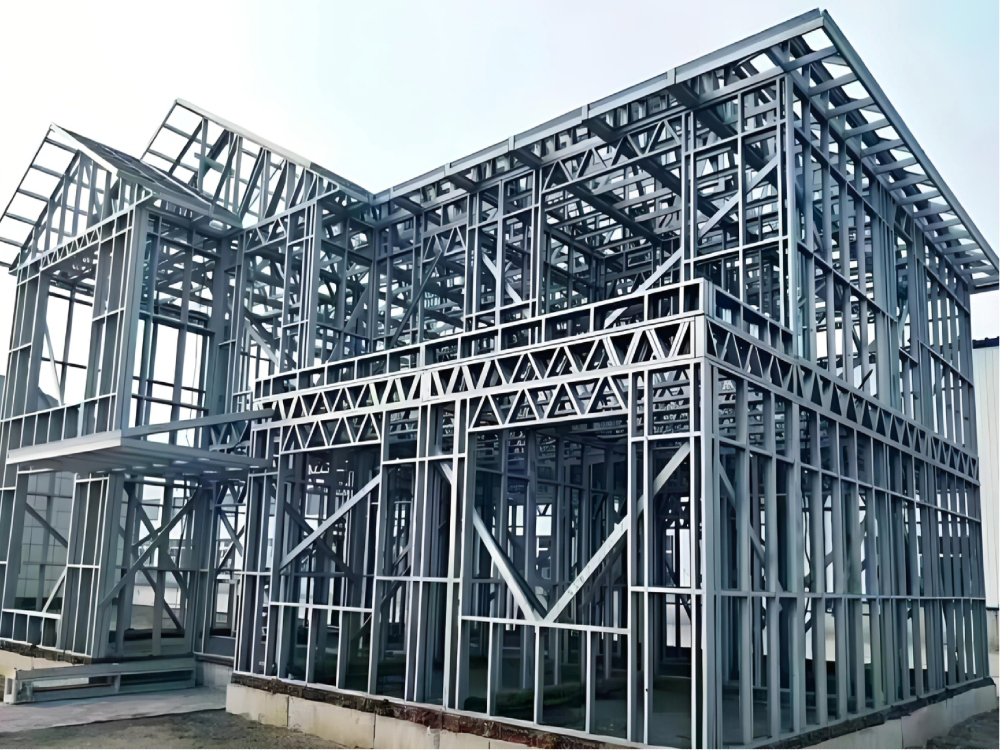

With a production speed of up to 1,500 m/h and processing accuracy controlled within ±0.5 mm, the light gauge steel forming machine helps improve component interchangeability and on-site assembly fit, reducing dimensional deviation in construction. A typical 8-hour shift can produce framing components for 120–160 m² of building area. On-site assembly requires no wet work, making the machine suitable for light steel villas, prefabricated housing, and cultural tourism support buildings.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 0.8-1.2mm. Customizable |
| Feeding Width | 180-182mm |
| Effective Width | 89mm |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 5×1.6×1.4m |
| Machine Weight | 3-5t |
| Machine Color | Customizable |
| Control System | PLC Touch Screen Frequency Converter,Fully Automatic |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |

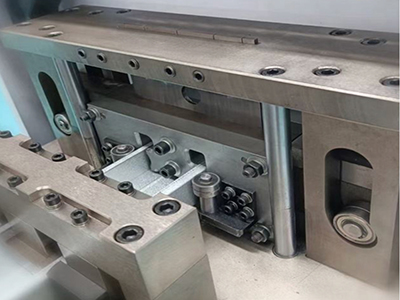

| Punching Device | |
| Punching Type | Hydraulic Punching |
| Punching Die Material | SKD11 Die Steel |
| Punching Die Configurations | Pipeline Holes, Trimming, Through-Holes, Chamfering, Rivet Holes, Web Closing, Shearing |
| Forming Machine | |
| Main Shaft Material | 40Cr (quenching and tempering, precision grinding) |
| Roller Material | Cr12 (quenched to HRC 58-62, CNC lathe precision machining) |
| Forming Stations | 12-18 stations |
| Forming Machine Motor Power | 5.5kW-11kW |
| Forming Speed | 25-50m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (5.5-11kW) |
| Cutting Blade Material | Tungsten Steel (heat treatment, HRC 58-60) |

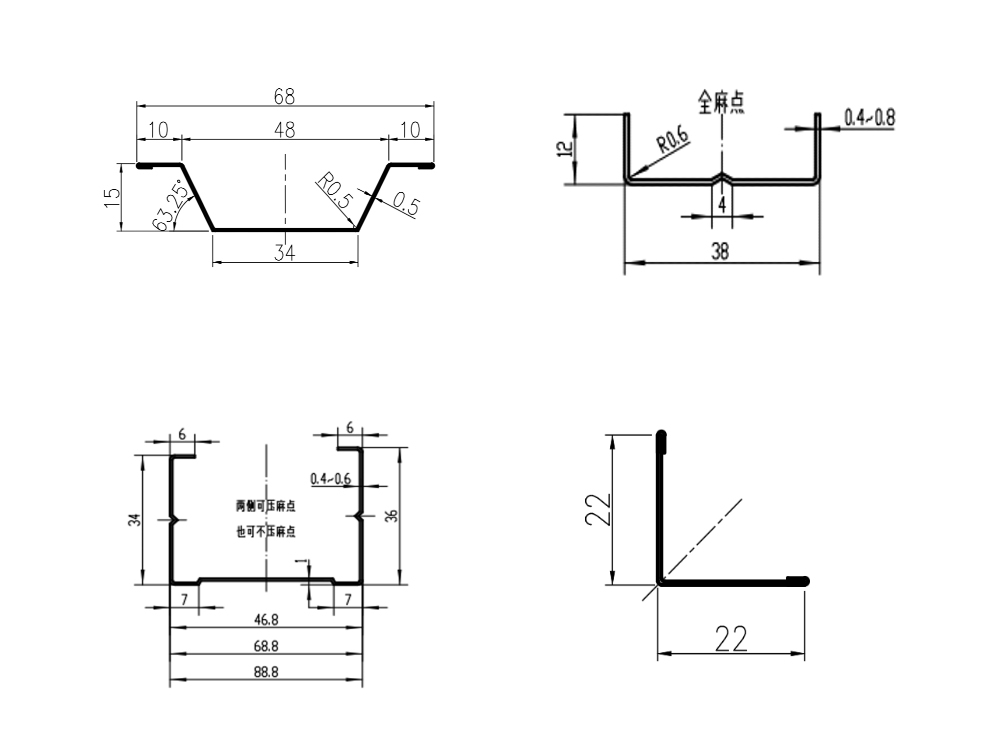

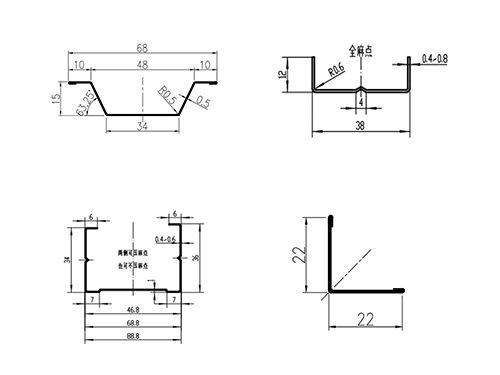

(choose a standard profile, or provide your own drawing)
Process
Decoiling →Material Feeding & Guiding → Punching → Roll Forming → Cutting → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Punching Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
