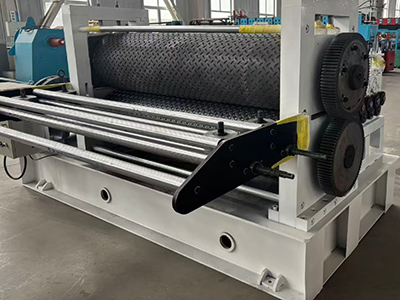

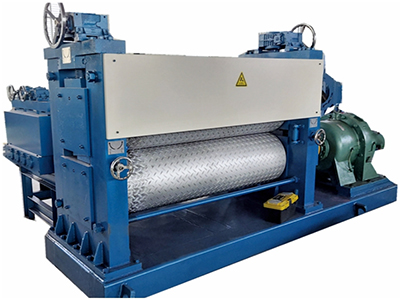

Sheet Metal Embossing Machine

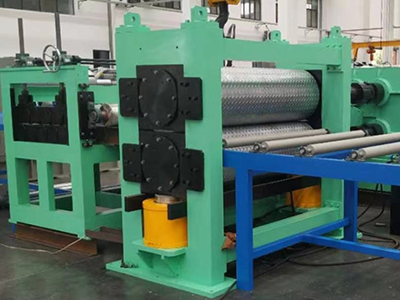

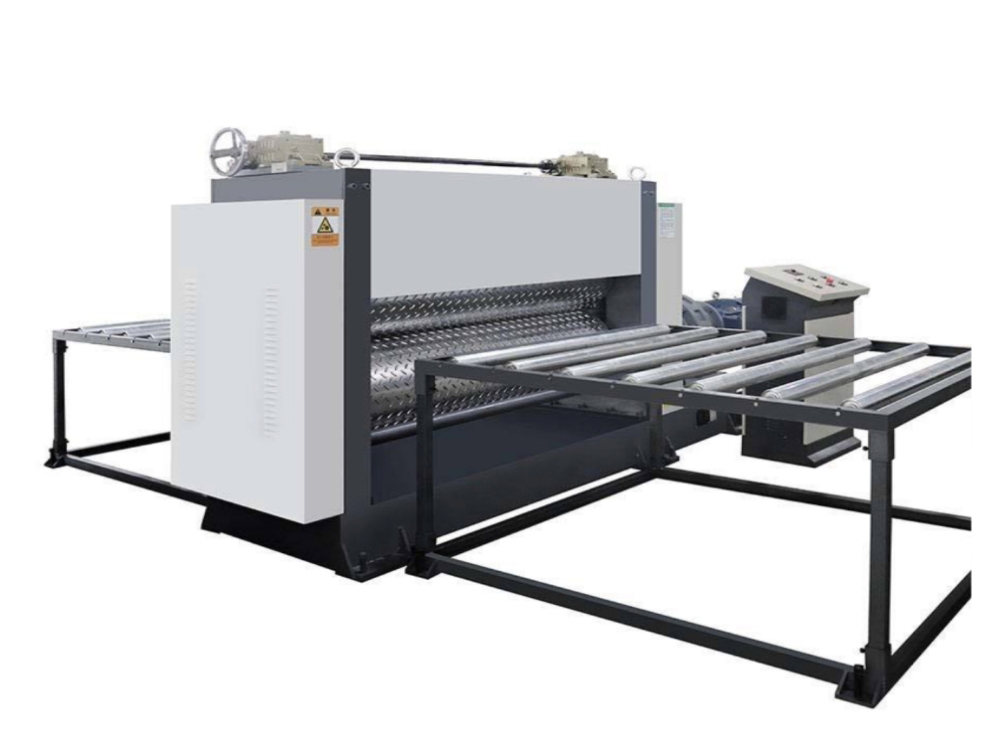

The sheet metal embossing machine is designed for surface embossing on stainless steel, galvanized steel, carbon steel, and other medium-thickness sheet metal materials. Using matched male and female embossing rollers, the machine creates consistent raised patterns while helping improve surface texture and sheet rigidity.
Bohai provides either a standalone embossing machine for basic sheet processing or a customized automatic embossing line for continuous production. This gives customers flexible equipment options based on material type, production volume, and finished sheet requirements.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.5-2mm, Max6mm (customizable) |
| Feeding Width | Max1250mm (customizable) |

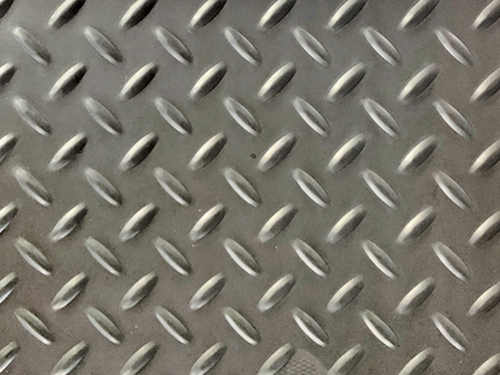

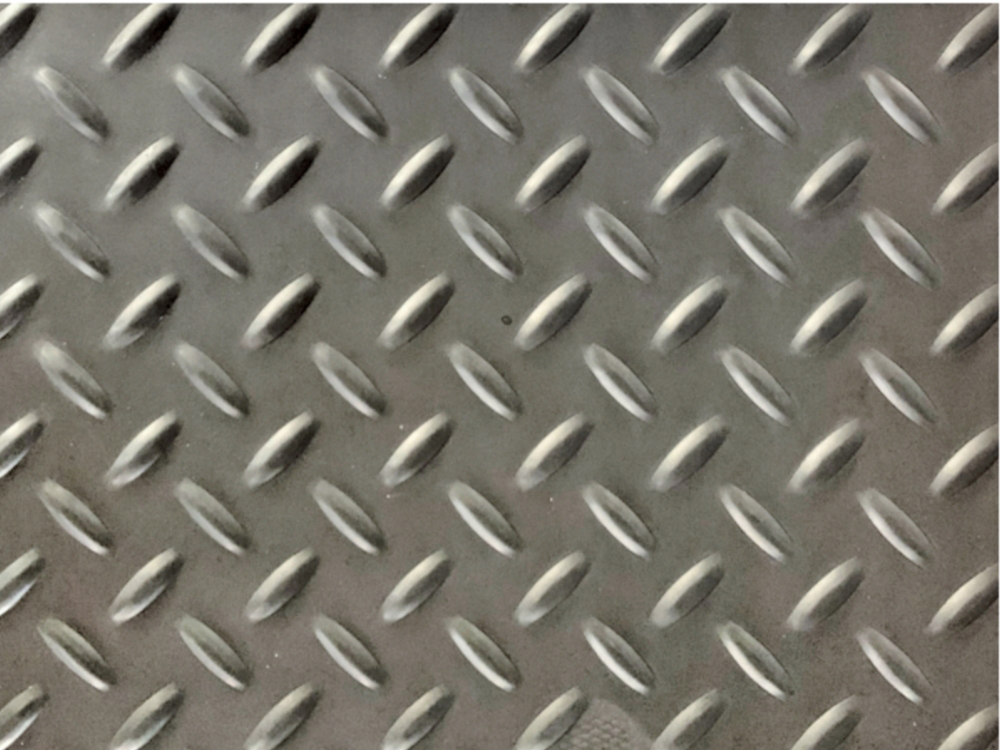

| Commonly Patterns | Willow-Leaf Shaped |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 3×1.6×1.4m |
| Machine Weight | 2-5t |
| Machine Color | Customizable |
| Control Type | Electric Control |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Leveling Device | |
| Leveling Roller | Diameter: Ø135mm Material: 45# steel (finish turning) Quantity: 13 rollers |
| Leveling Roller Motor Power | 11-22kW |
| Forming Machine | |

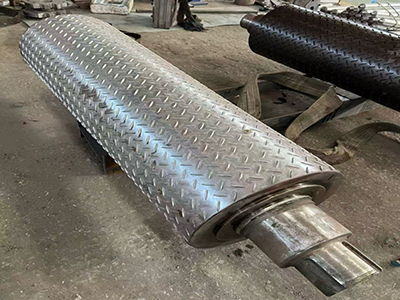

| Roller Material | Ø480mm, 45# Steel (CNC engraving, quenched to HRC 55-62) |
| Forming Machine Motor Power | 15-30kW |
| Forming Speed | 8-30m/min |
