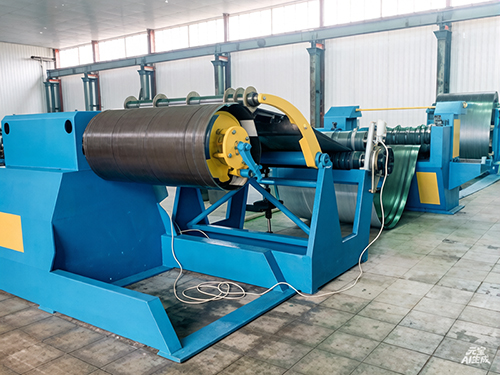

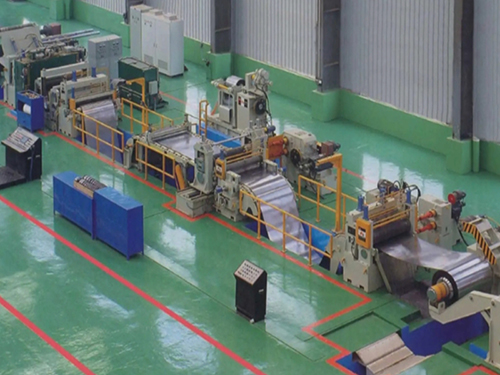

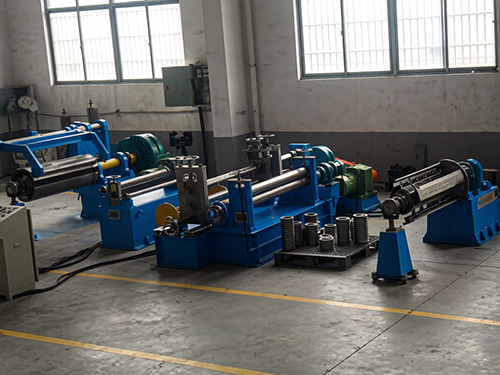

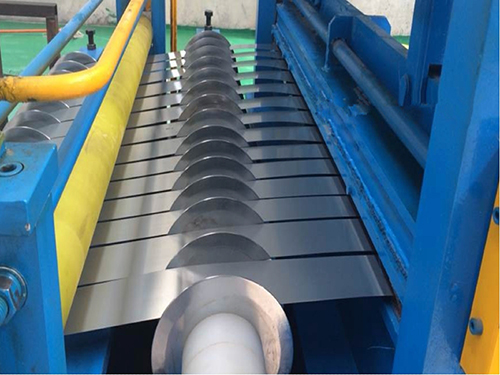

Slitting Line

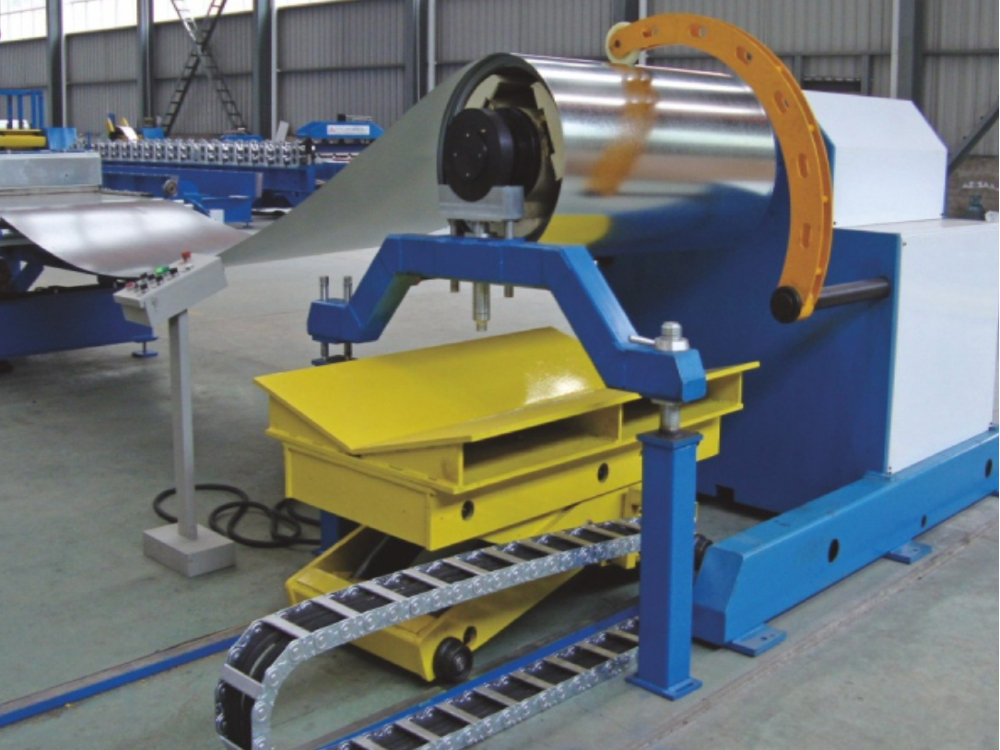

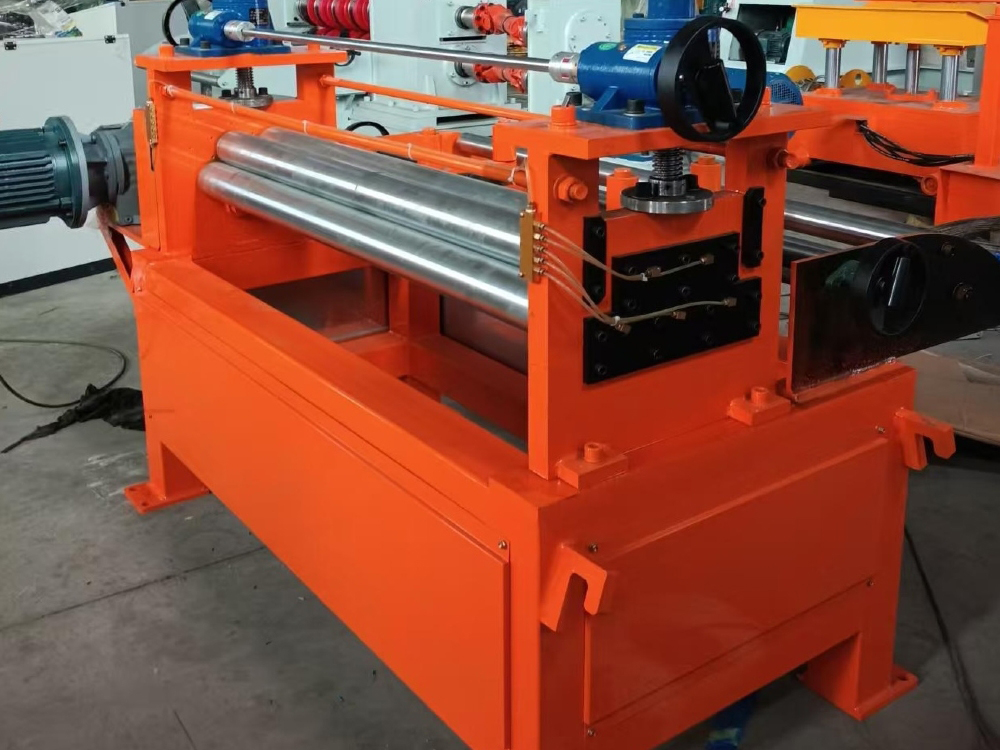

Decoiling → Leveling → Slitting → Edge Trimming → Leveling → Recoiling
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) AL (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-3.0mm (customizable) |
| Feeding Width | Max. 1300mm (customizable) |
| Machine Dimensions & PLC | |
| Line Layout | Horizontal, with pit device (platform height 700mm) |
| Machine Size | Approx. 15×1.6×1.4m |
| Machine Weight | 15-20t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Total Power | 55kW |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |

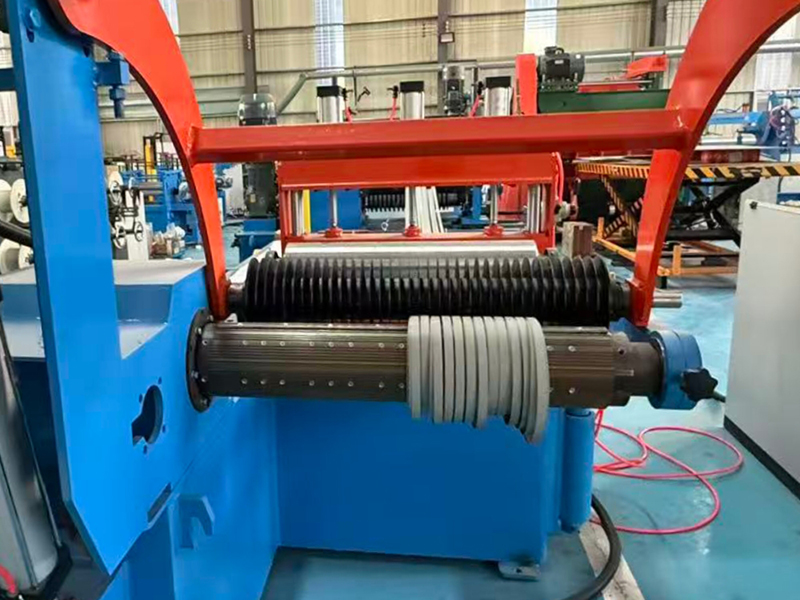

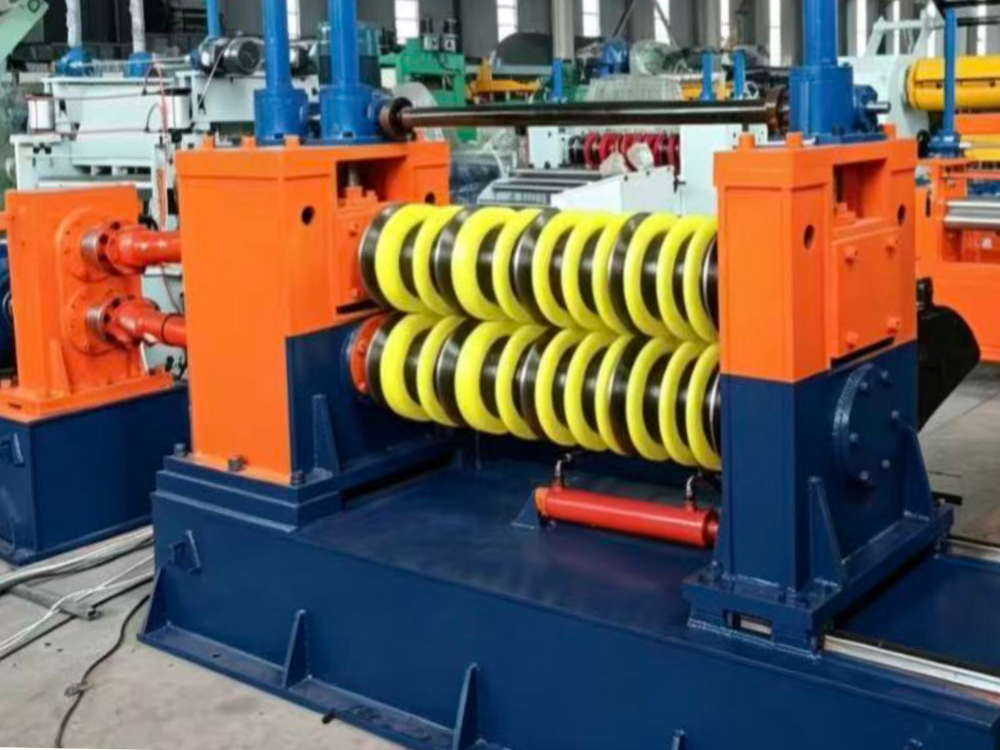

| Slitting Machine | |
| Slitting Strip Width | 50mm, 77mm, 88mm, 121mm, 310mm, 410mm, 510mm, 610mm, 710mm (equipped with 25 sets of knives, featuring edge deburring and multi-strip recoiling) |
| Tooling Setup Method | Blade with blade holder |
| Tool Shaft | Blade shaft diameter: 160mm Blade material: Cr12Mov |

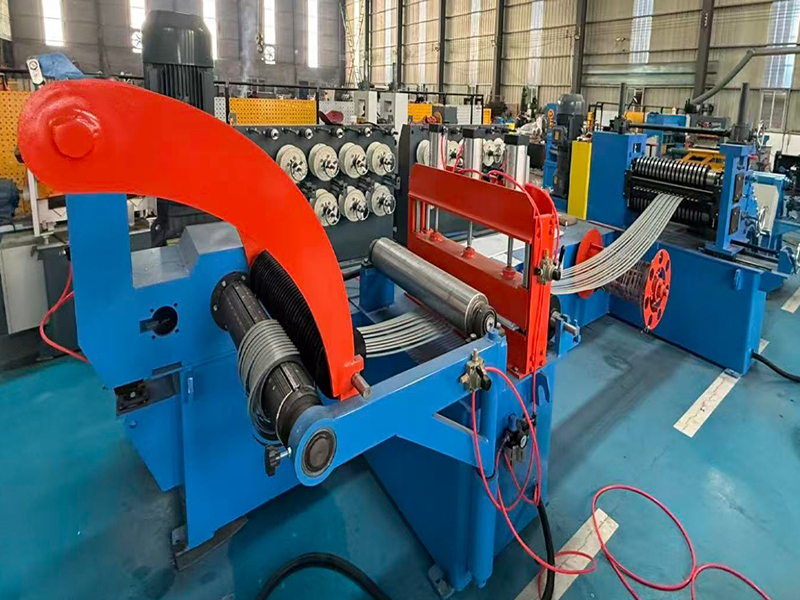

| Rewinding Device | |
| Roll Core Shaft | Diameter: Ø480-510mm (inner winding) Material: 45# steel (finish turning) |
| Winding Method | Hydraulic tension station, hydraulic expansion and contraction for winding, external precision grinding, with unloading car |
