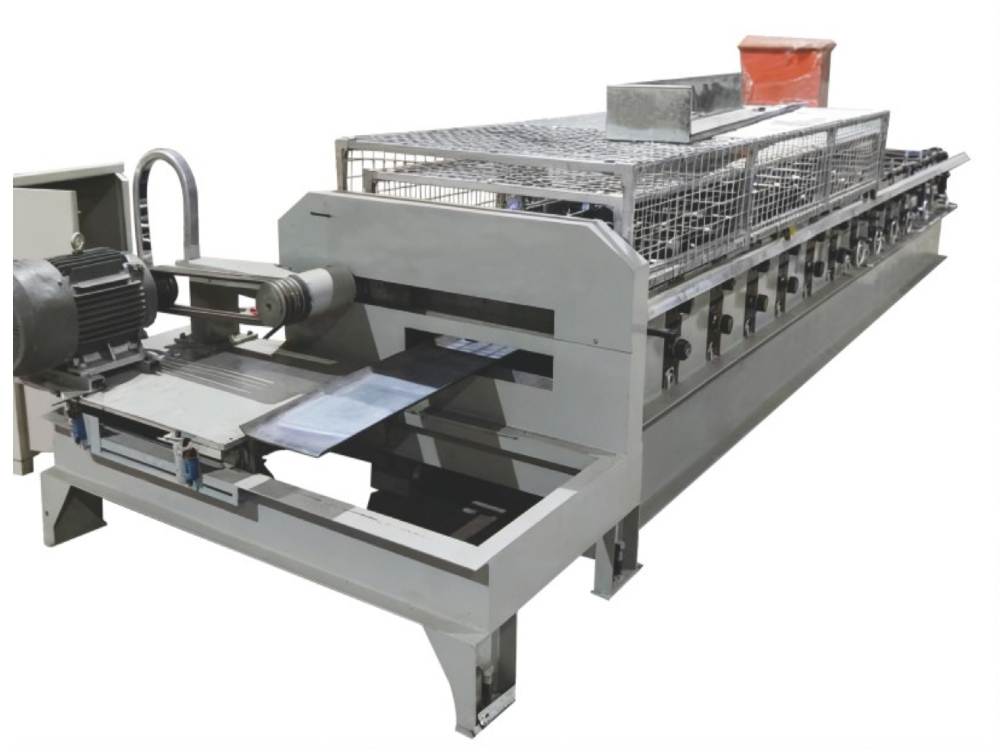

Steel Waterstop Roll Forming Machine
The steel waterstop roll forming machine is used to produce multiple types of steel waterstop profiles in one machine, helping suppliers meet different project specifications with a more flexible production setup.
This forming machine integrates decoiling, leveling, punching, roll forming, and cutting into a fully automated process from coil to finished product. Optional QR code marking can be added for product traceability, while a daily output of more than 2,000 meters supports centralized supply for EPC construction projects.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 2-3mm (customizable) |
| Feeding Width | 300-500mm (customizable) |
| Effective Width | 200-400mm (customizable) |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Leveling Roller | Diameter: Ø80mm Material: 45# steel (5-7 roller leveling) |
| Main Shaft Material | Diameter: Ø80mm Material: steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |

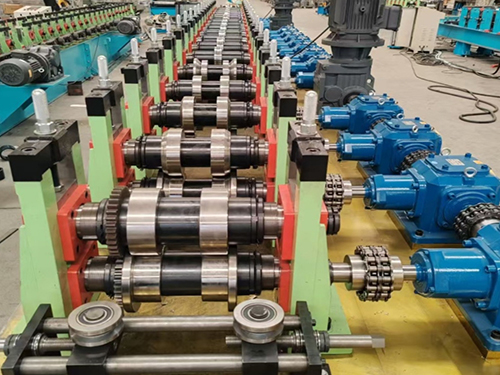

| Forming Stations | 12-18 stations |
| Forming Machine Motor Power | 15-30kW (with cycloidal gear reducer) |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (4.0-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

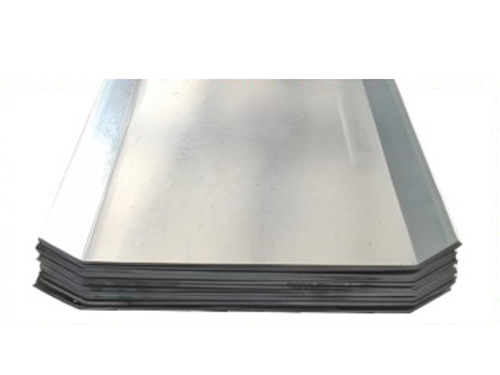

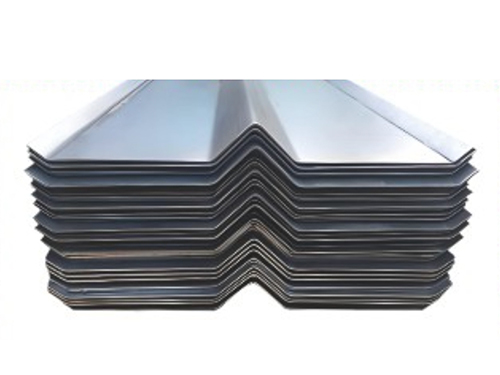

Profile Drawings
(choose a standard profile, or provide your own drawing)
