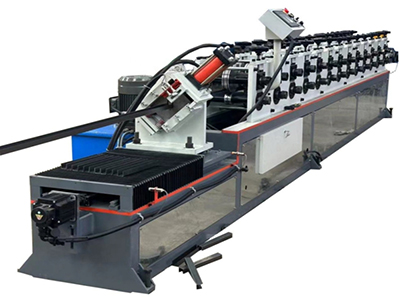

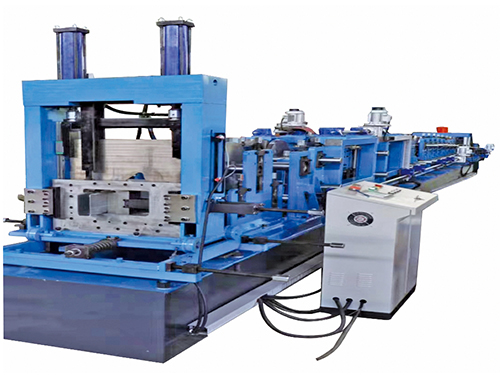

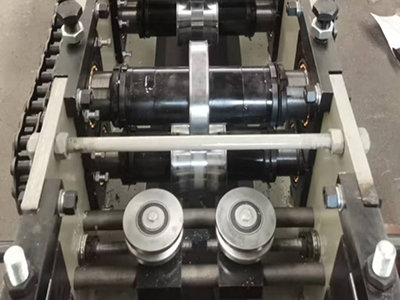

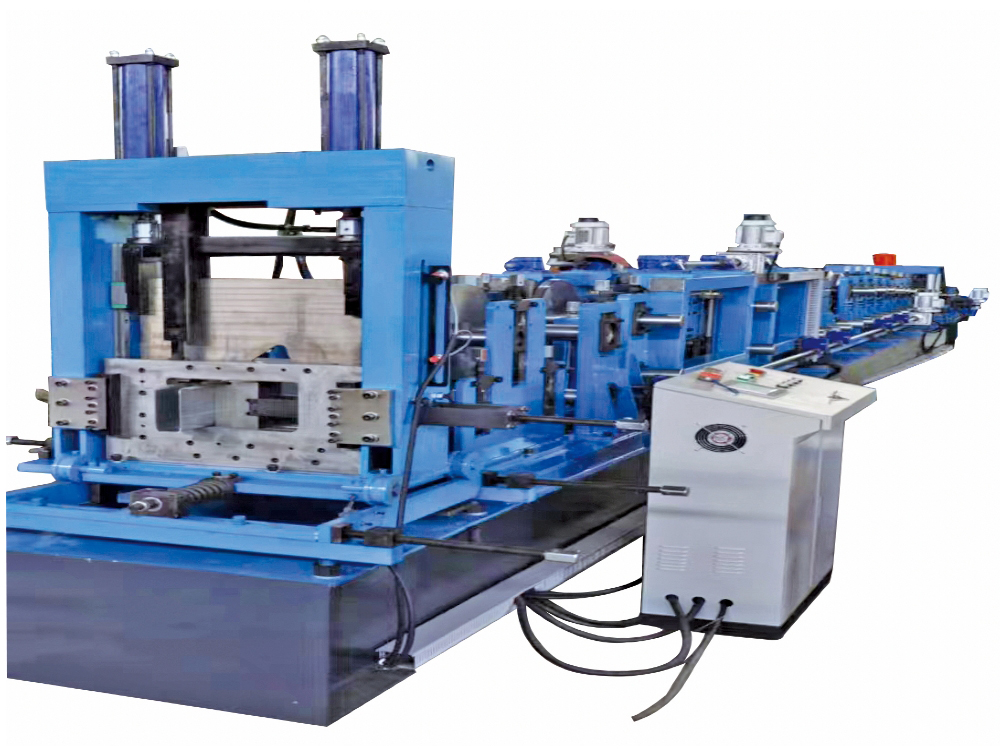

U Shaped Steel Purlin Roll Forming Machine
The U shaped steel purlin roll forming machine is built for producing U-channel profiles used in fire-rated steel doors, fire shutter frames, light steel framing, drainage U-channels, and other structural components. With servo control and precision roller adjustment, the machine keeps channel opening tolerance within ±0.5 mm and can be configured for different sheet thicknesses and profile widths.
The forming machine can also be adapted for custom-section profiles used in automotive door frames, crane side plates, conveyor troughs, and other applications where formed metal parts require both strength and reduced weight.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1-2mm (customizable) |
| Feeding Width | 100-500mm (customizable) |
| Effective Width | 20-150mm (customizable) |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Size | Approx. 7×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | PLC touch screen frequency converter, Fully automatic |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Optional Punching Unit | |
| Punching Method | Press punching/hydraulic punching (optional) |
| Punching Die Configurations | According to drawings (customizable) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø60-80mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 9-18 stations |
| Forming Machine Motor Power | 3.0kW-11kW |
| Forming Speed | 8-30m/min |

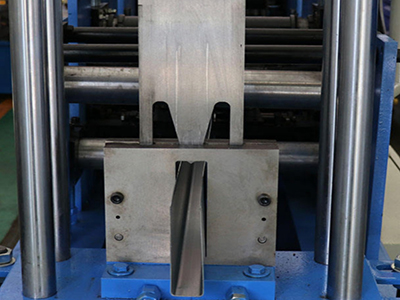

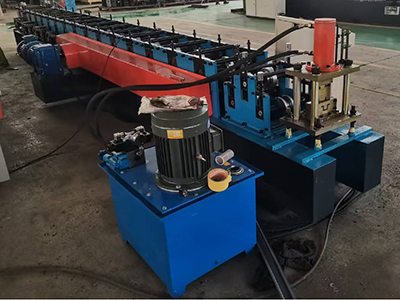

| Cutting Device | |
| Cutting Method | Automatic cutting (3.0kW-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

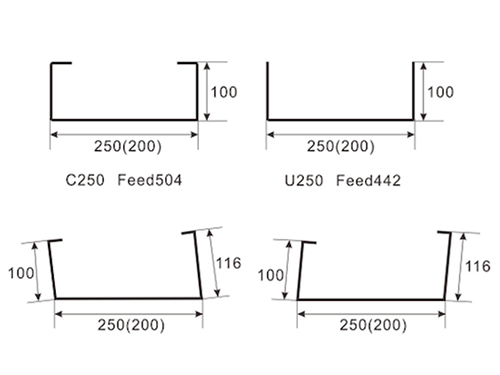

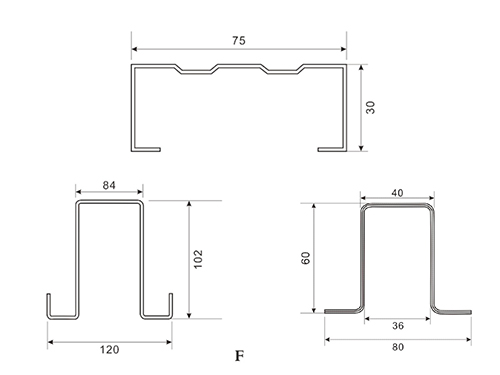

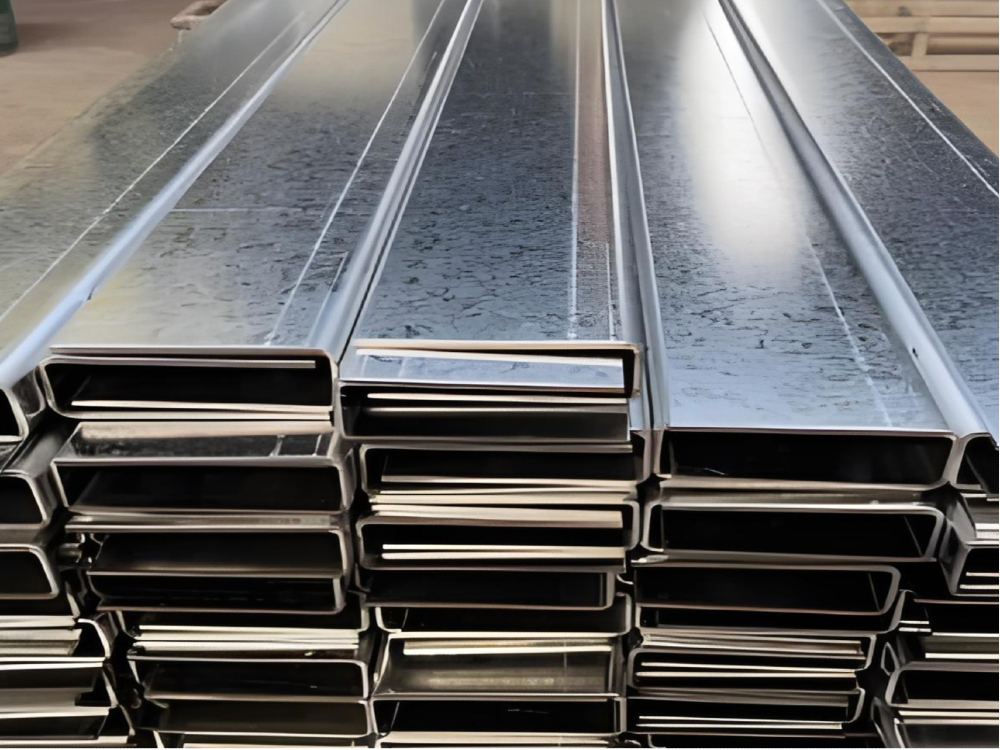

(choose a standard profile, or provide your own drawing)
Process
De-coiling →Material Feeding & Guiding → Roll Forming → Punching (Selectable) → Cutting → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Punching Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
