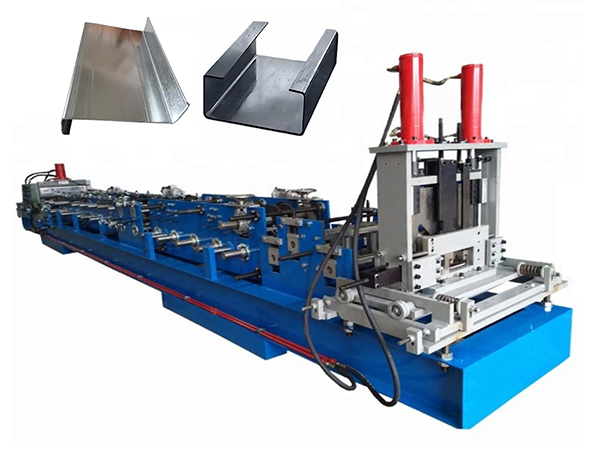

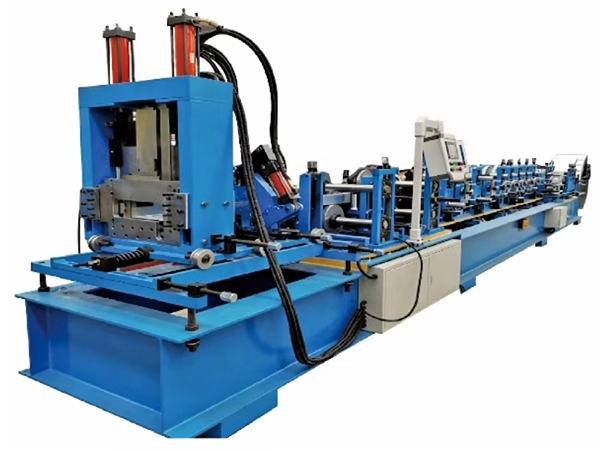

Interchangeable C/Z Purlin Roll Forming Machine
Designed for manufacturers that need flexible purlin production, the interchangeable C/Z purlin roll forming machine produces both C and Z profiles on the same line. Profile changeover can be completed through parameter adjustment, without mold replacement or machine shutdown, helping reduce changeover time and production interruption.
A PLC control system, servo drive, and digital detection system help maintain profile accuracy, with dimensional deviation controlled within ±0.5 mm and angle error within 0.5°. The purlin forming line integrates automatic feeding, roll forming, cut-to-length cutting, punching, and stacking, supporting a daily output of 1,500–2,000 pieces. It is suitable for industrial plants, warehouses, logistics facilities, solar mounting structures, and other related applications.
| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Rolling Strength | Q195, Q235 and more |
| Material Thickness | 2-3mm (customizable) |

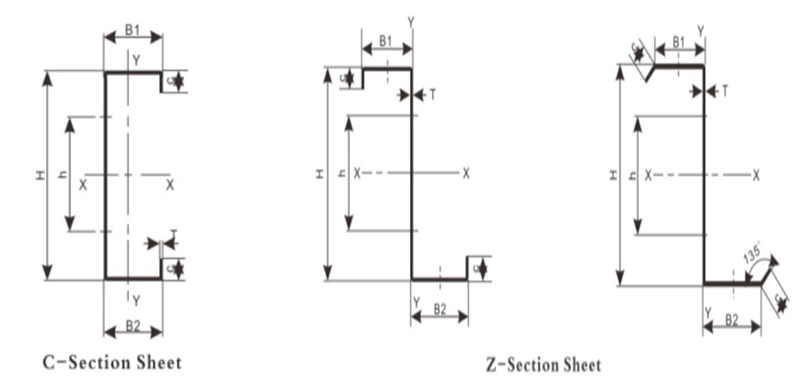

| C Purlin | Feeding Width: 180-400mm (customizable) Effective Width: A: 60mm-200mm, B: 30mm-80mm, C: 0-20mm |
| Z Purlin | Feeding Width: 380-650mm (customizable) Effective Width: A: 150mm-300mm, B: 62mm-92mm, C: 57-87mm |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| CZ Interchangeable Type | Fully automatic, electric one- button adjustment |
| Machine Dimensions | Approx. 10×1.6×1.5m |
| Machine Weight | 8-10t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |

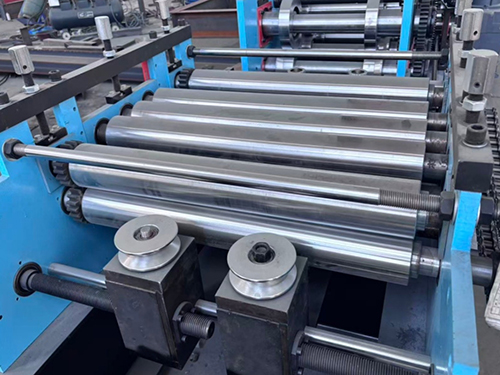

| Leveling Roller | Diameter: Ø85mm Material: 45# steel (7-9 roller leveling) |
| Main Shaft | Diameter: Ø80mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |

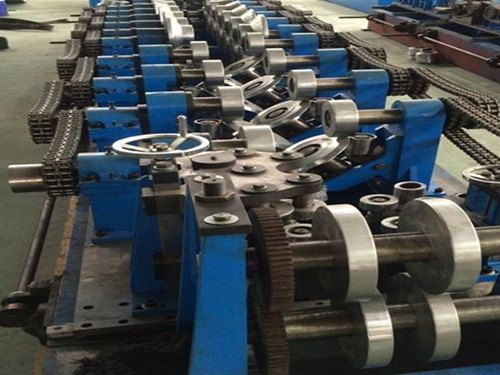

| Forming Stations | 18 stations+13 set CZ interchangeable module |
| Forming Machine Motor Power | 22-30kW (with cycloidal gear reducer) |
| Forming Speed | 8-30m/min |
| Punching Device | |
| Punching Type | Hydraulic Punching |
| Punching Die Configurations | 3 sets (customizable according to profile drawings) |
| Cutting Device | |
| Cutting Method | Automatic cutting (4.0-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |
(choose a standard profile, or provide your own drawing)
Process
Decoiling →Material Feeding & Guiding → Leveling → Roll Forming → Punching → Cutting → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5t Uncoiler | 1 Set |
| 2 | Leveling Device | 1 Set |
| 3 | Punching Device | 1 Set |
| 4 | Main Roll Forming Machine (Including CZ Interchangeable) | 1 Set |
| 5 | Cutting Device | 1 Set |
| 6 | Hydraulic Station | 1 Set |
| 7 | Controlling System (including Cabinet) | 1 Set |
| 8 | Run-out Table | 1 Set |
