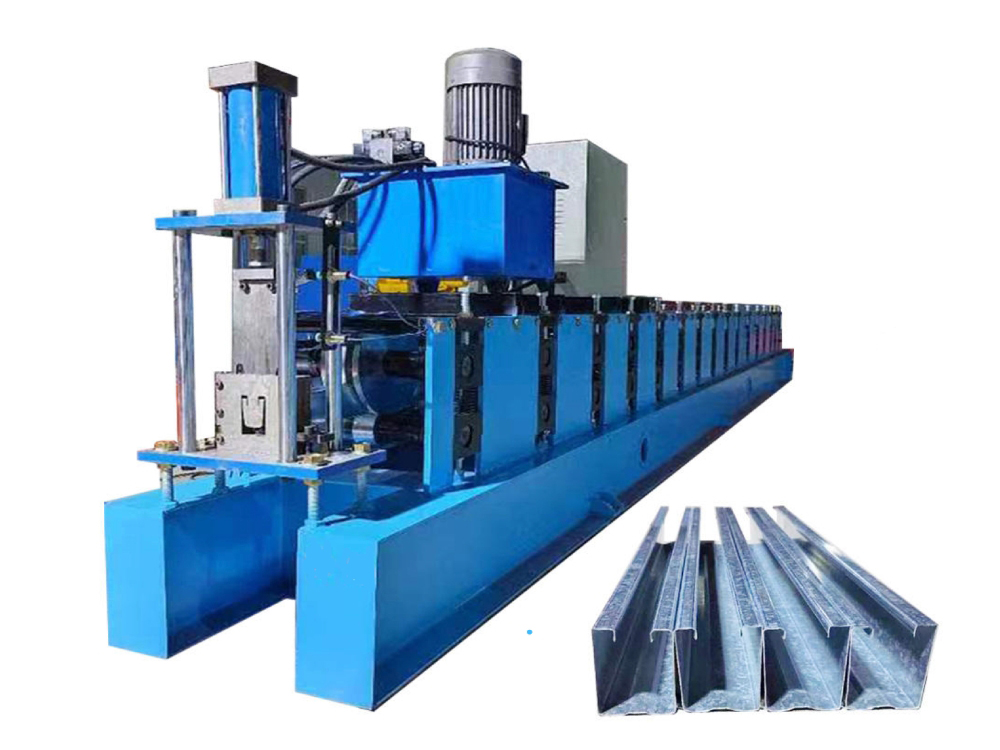

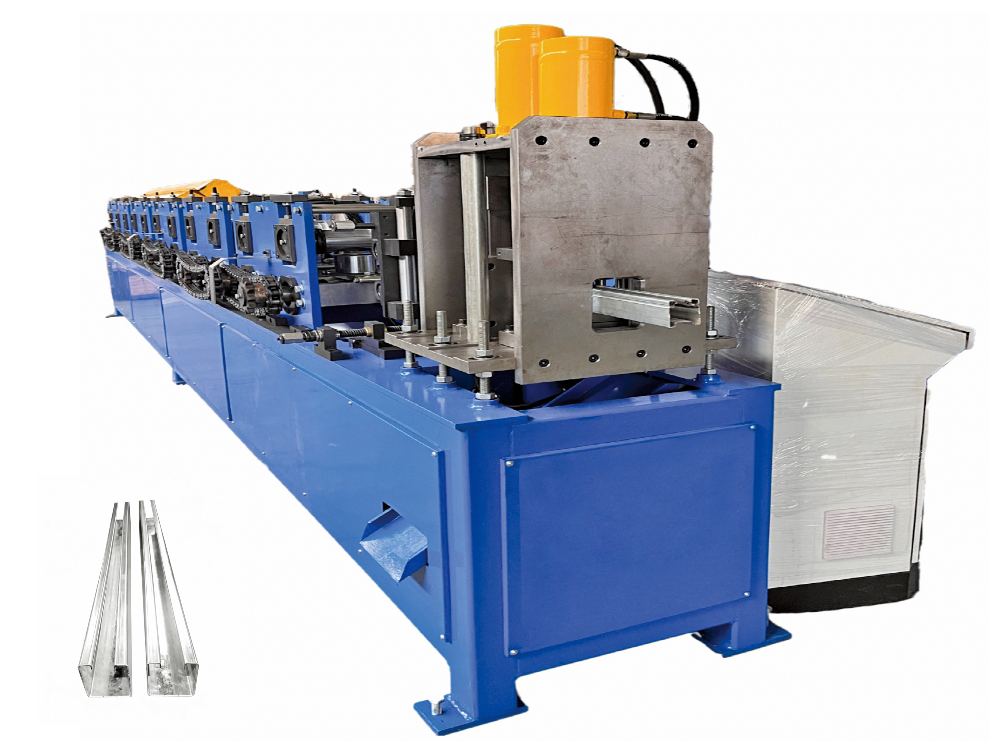

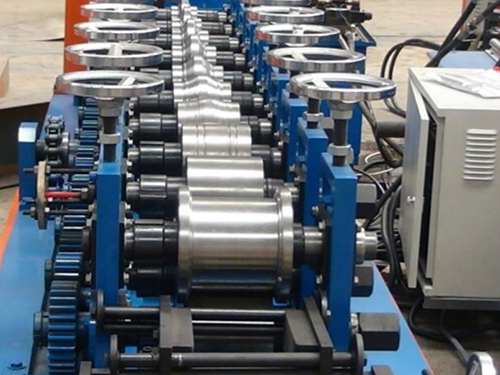

Guide Rail Roll Forming Machine
The guide rail roll forming machine is designed to produce guide rails for roller shutter doors. Bohai offers customized guide rail design according to the customer’s door profile and on-site installation conditions, making it suitable for different shutter systems and project requirements.
Standard guide rail lines support sheet thicknesses of 0.8–2.0 mm and use 14–24 forming stations. A servo cut-to-length system keeps length deviation within ±1 mm. For high wind-load applications, the machine can be configured to produce wider and thicker guide rails, such as 120 × 60 mm profiles. The reinforced structure increases machine rigidity by 40%, while hydraulic overload protection supports continuous and stable operation. It is suitable for coastal projects and other high-wind regions.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.7-1.2mm (customizable) |
| Feeding Width | 100-200mm (customizable) |
| Effective Width | 30-60mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 5t-7t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø50mm Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 10-18 stations |
| Forming Machine Motor Power | 3.0-15kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |

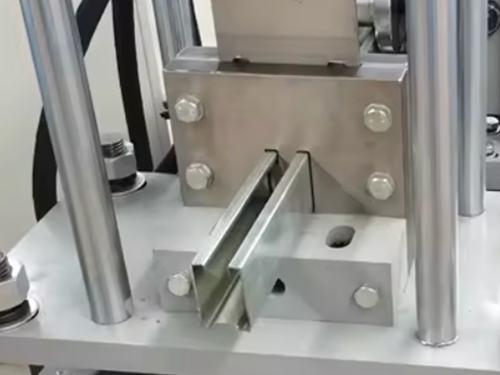

| Cutting Method | Automatic cutting (3.0kW-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

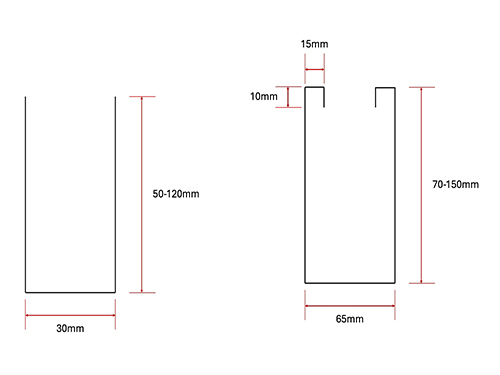

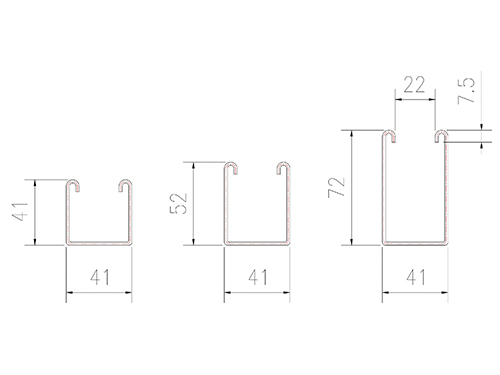

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Uncoiler | 1 Set |
| 2 | Main Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Controlling System (including Cabinet) | 1 Set |
| 6 | Run-out Table | 1 Set |
