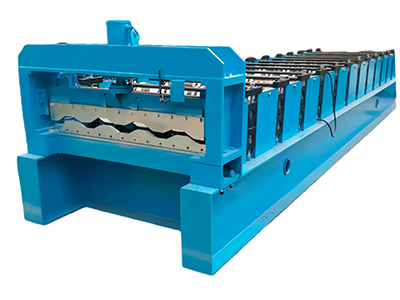

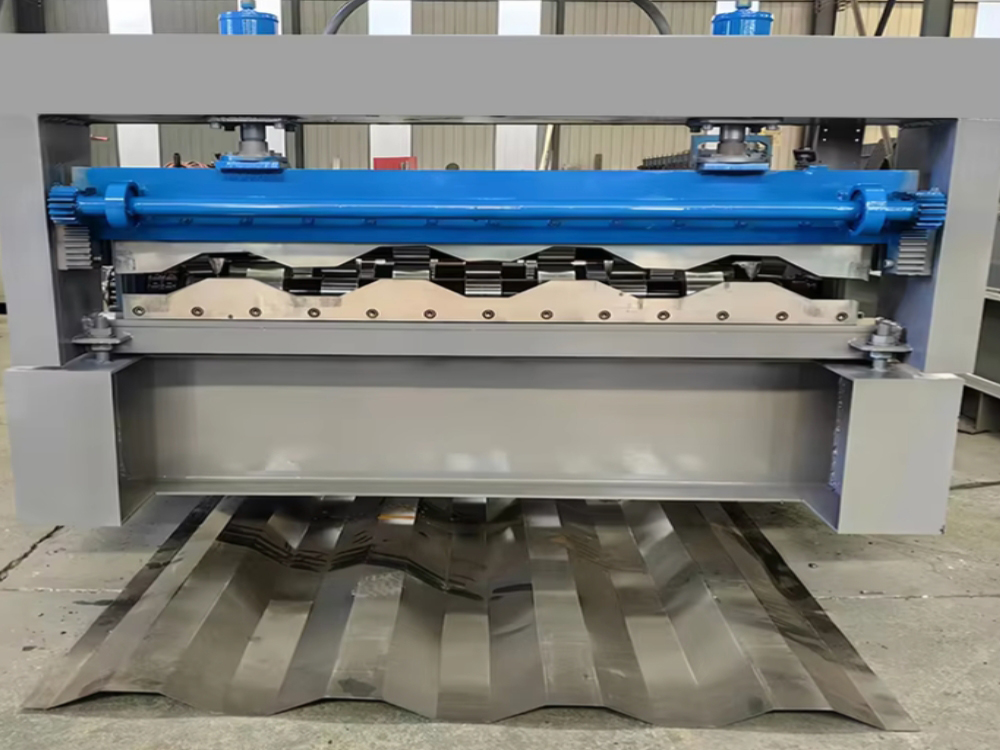

Shipping Container Side Panel Roll Forming Machine
Bohai’s shipping container side panel roll forming machine is designed for producing corrugated side wall panels for standard shipping containers. The line supports sheet thicknesses of 1.2–4.0 mm and is equipped with 22–32 forming stations to create stable, uniform panel profiles for container assembly.
A hydraulic cut-to-length system provides clean, accurate cuts and helps keep the panel ends neat and free from deformation, supporting downstream welding and installation. Custom profile options are also available for non-standard container applications.
Specifications| Raw Material | |
| Applicable Materials | Weathering Steel CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 1-3mm (customizable) |
| Feeding Width | 1200-1250mm (customizable) |
| Effective Width | 1000-1200mm (customizable). |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Leveling Roller | Diameter: Ø115-125mm Material: 45# steel (5-7 roller leveling) |
| Main Shaft Material | Diameter: Ø115mm Material: 45# steel (finish turning) |

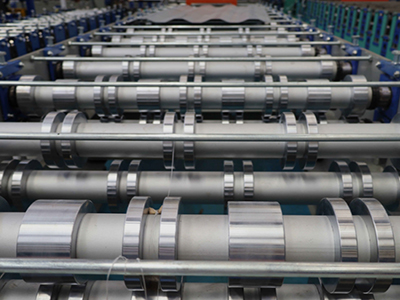

| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |

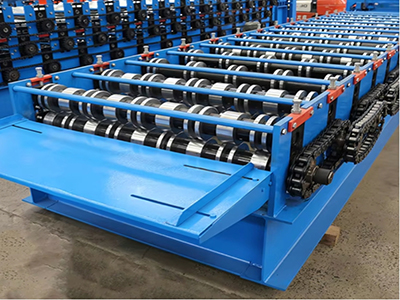

| Forming Stations | 18-28 stations |
| Forming Machine Motor Power | 30-50kW (with cycloidal gear reducer) |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (11-30kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

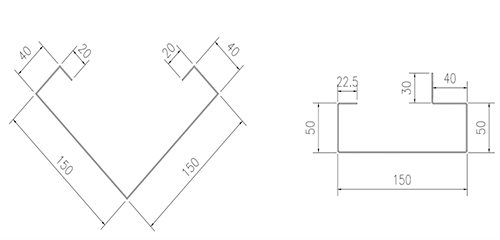

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Leveling → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 10t Uncoiler | 1 Set |
| 2 | Leveling Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
