Roller Shutter Door Forming Machine

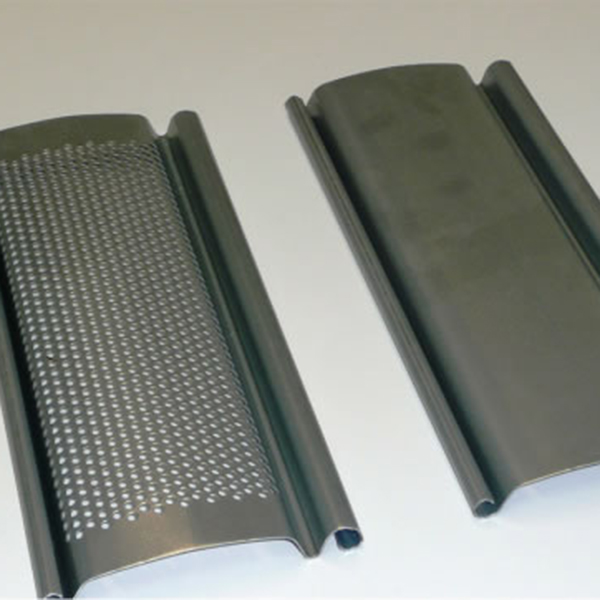

This roll forming machine is mainly used to produce roller shutter slats, it has earned the ongoing trust of customers worldwide due to its features of high safety, low noise and easy operation.

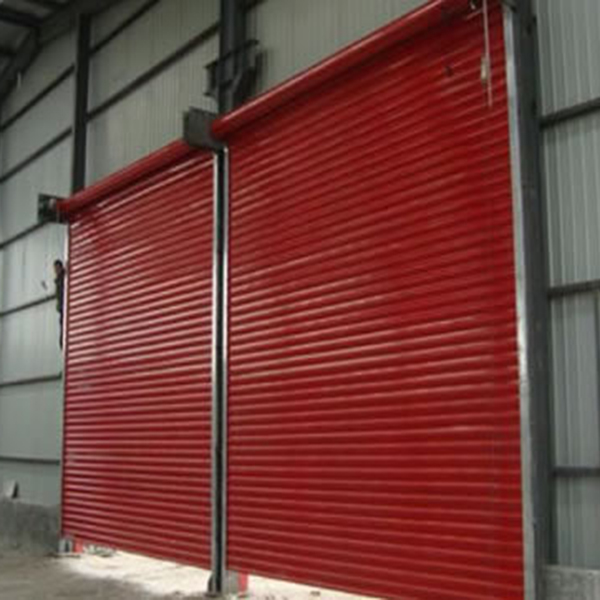

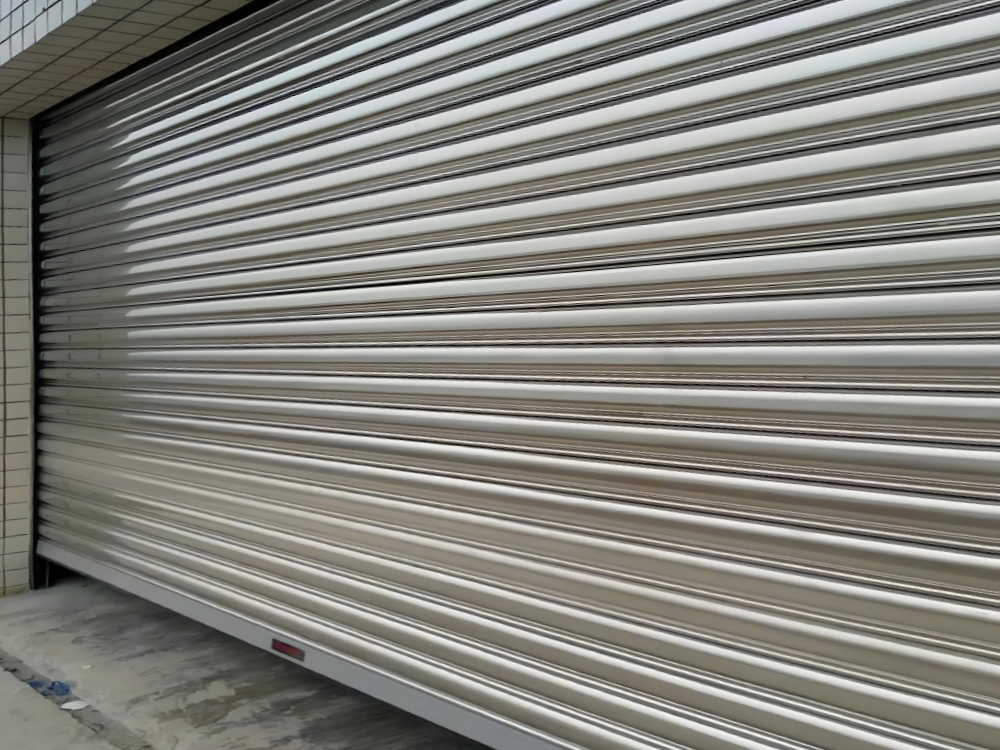

Roller shutter is a type of sectional overhead door consisting of many horizontal slats hinged together. It works by rolling up to open and lowering to close.

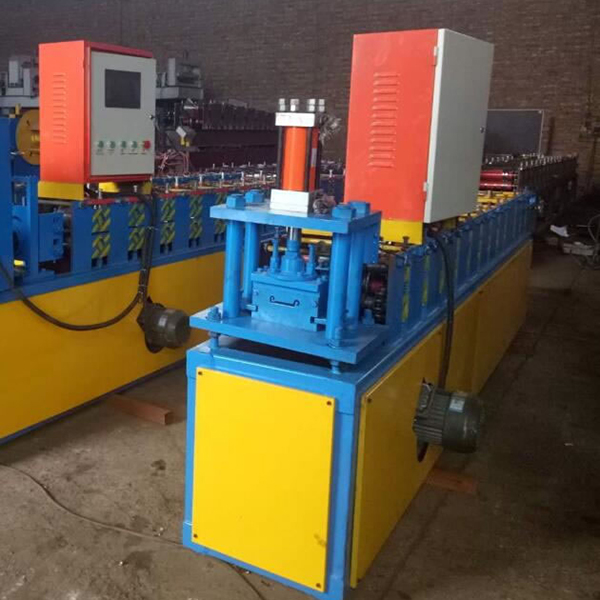

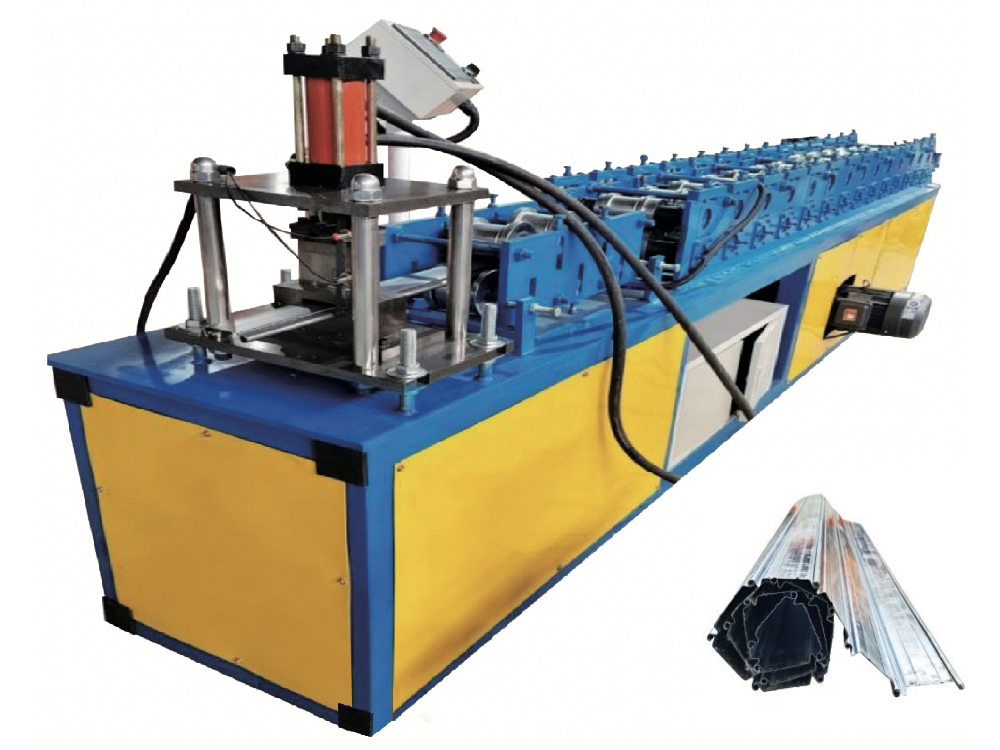

The roller shutter door roll forming machine is designed for producing metal roller shutter doors, warehouse shutter doors, and related door panels. The line can be configured with decoiling, punching, roll forming, embossing, cutting, and discharge sections to support continuous production from coil to finished profile.

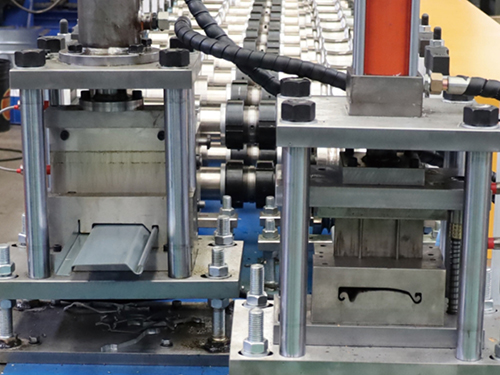

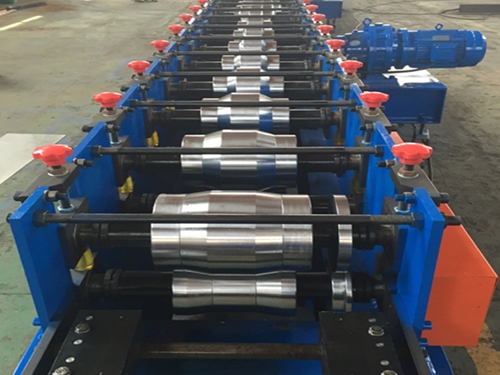

The machine shafts and rollers are precision-turned on lathes and heat-treated to improve hardness and support consistent forming quality. Bohai also provides customized roller shutter door forming machines for wave profiles, embossed profiles, perforated profiles, and different feeding widths.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.7-1.2mm (customizable) |
| Feeding Width | 150-350mm (customizable) |
| Effective Width | 100-250mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 3t-5t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø50mm Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 15-25 stations |
| Forming Machine Motor Power | 3.0-15kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0-11kW, stationary cutting or non-stop cutting) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |
| Punching Device | |
| Punching Type | Press punching/hydraulic punching (optional) |
| Punching Die Configurations | According to the drawings (customizable) |

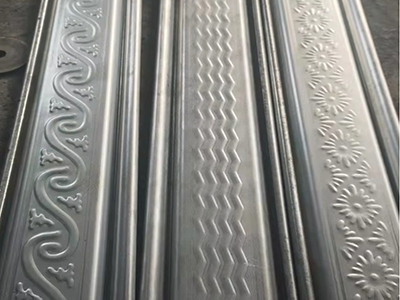

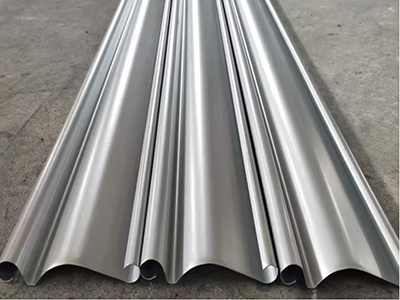

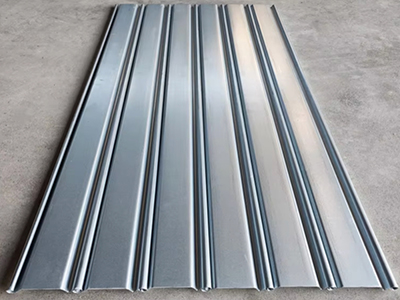

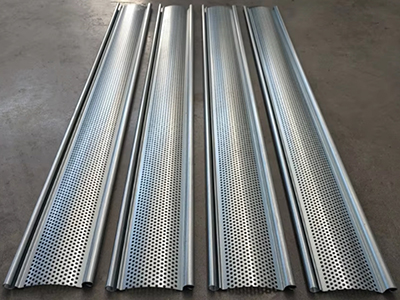

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Punching → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 3t Uncoiler | 1 Set |
| 2 | Punching Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
