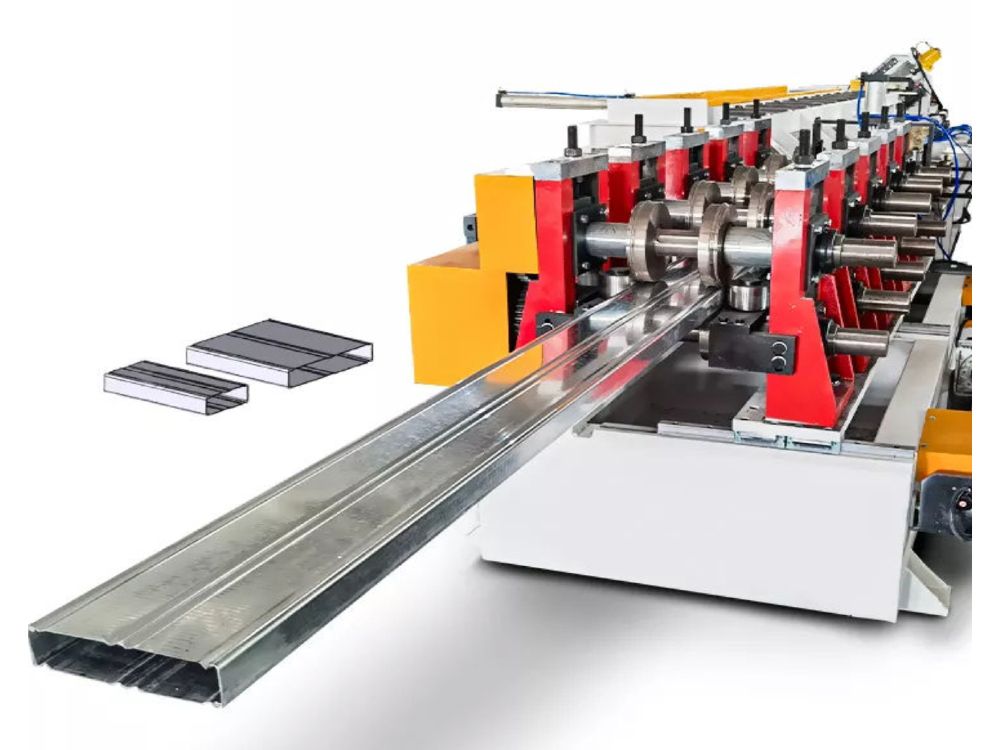

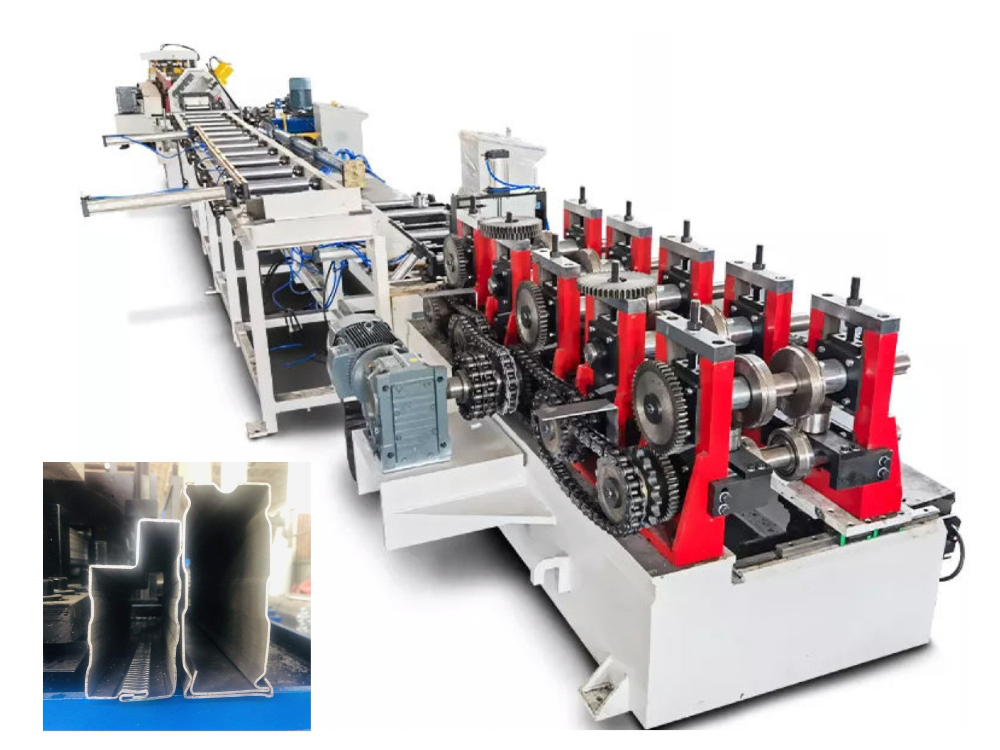

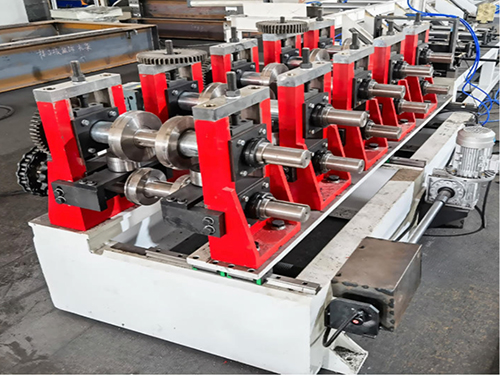

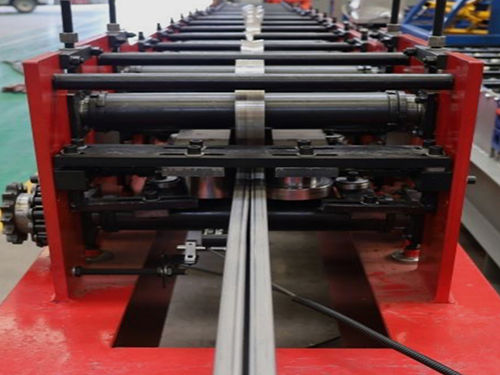

Storage Shelf Crossbeam Roll Forming Machine
Storage shelf crossbeam roll forming machine uses a multi-stage cold roll forming process to produce shelf beam profiles in one continuous forming line. It can be configured for P-type closed beams, C-shaped welded beams, and other beam sections used in storage shelf systems.
The multi-cavity profile structure improves bending strength by more than 30% under the same material thickness. By forming complex sections in one process, the line helps reduce welding steps and avoid stress concentration at weld seams, improving the load-bearing capacity and service life of the finished shelf beams.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1.0-2.0mm (customizable) |
| Feeding Width | 260-420mm (customizable) |
| Effective Width | High50mm,Width80/90/100/110/120/130/140/150/160mm |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 20×1.6×1.4m |
| Machine Weight | 8t-15t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Ø80mm 40Cr (quenching and tempering) |
| Roller Material | Cr12 (quenched to HRC 58-62) |
| Forming Stations | 20-30 stations |
| Forming Machine Motor Power | 30-50kW |
| Forming Speed | 8-20m/min |
| Cutting Device | |
| Cutting Method | 7.5-30kW Fully Automatic Servo Hydraulic Tracking Cutting |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |
| Crossbeam Machine | |
| Bracket Buckle System | Pneumatic Flipping And Fastening Machine |
| Stations | 4 stations |
| Main Shaft Material | Ø80mm 40Cr (quenching and tempering) |
| Motor Power | 5.5-11kW |

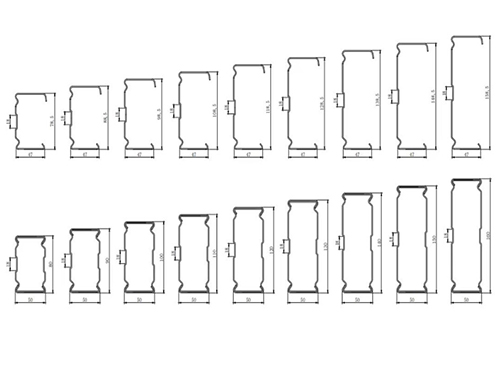

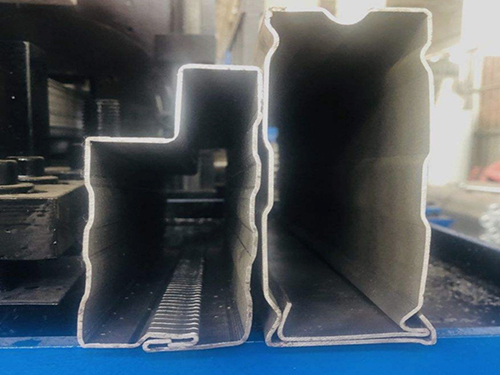

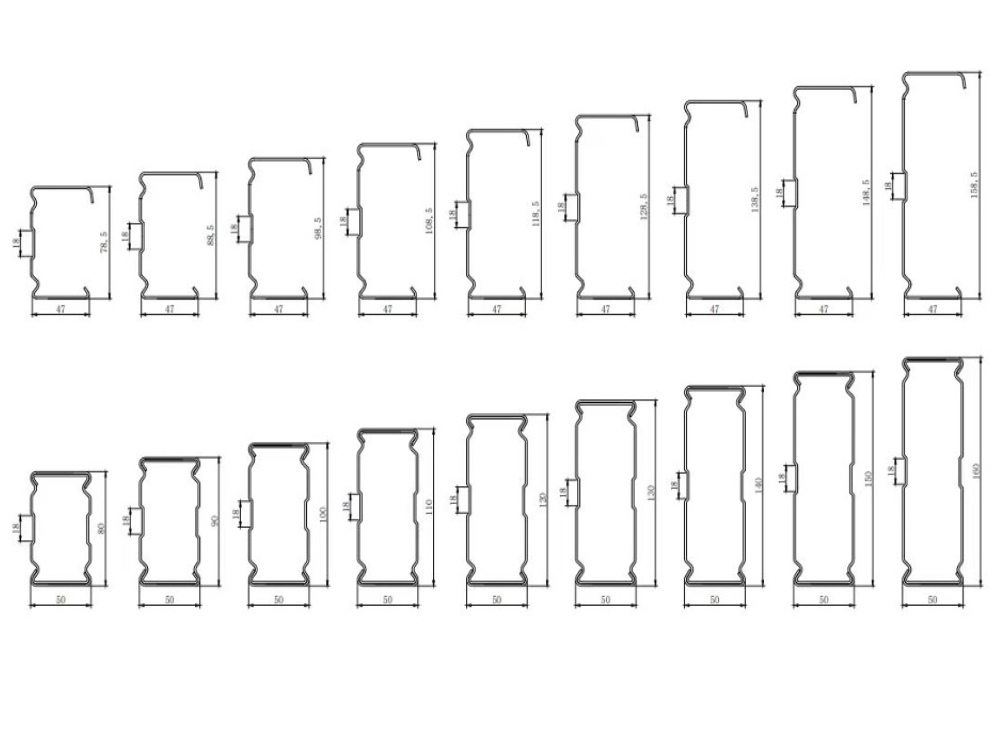

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling → Leveling →Material Feeding → Roll Forming → Hydraulic Cutting → Crossbeam Forming → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Decoiler | 1 Set |
| 2 | Main Roll Forming Machine | 1 Set |
| 3 | Tracking Hydraulic Cutting Machine | 1 Set |
| 4 | Crossbeam Machine | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
