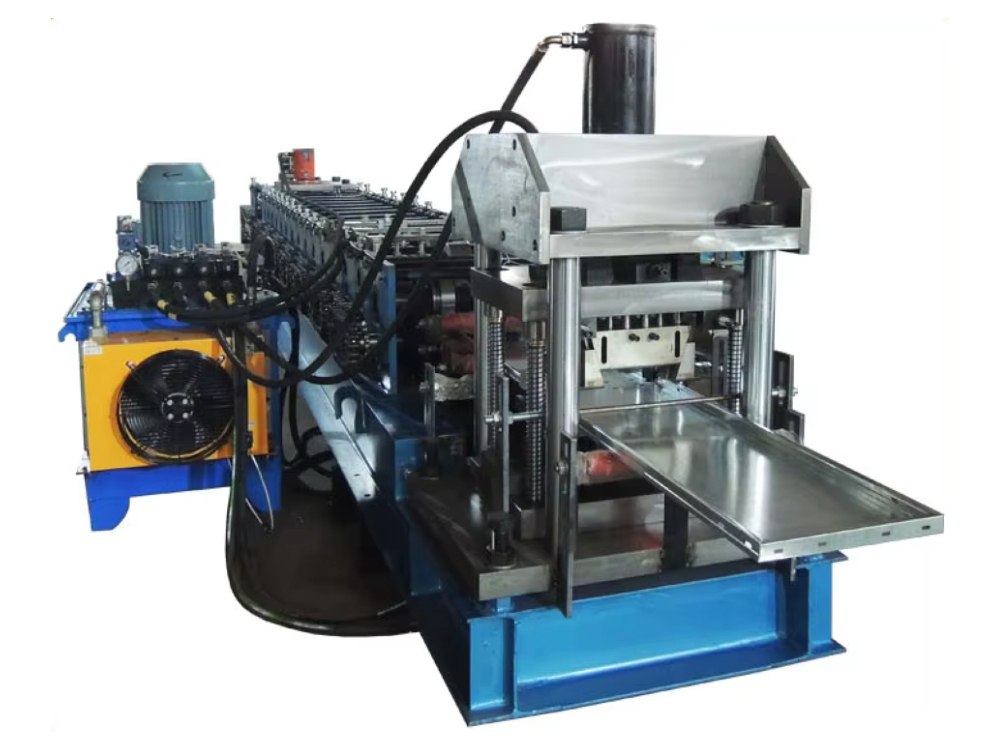

Storage Shelf Panel Roll Forming Machine
Storage shelf panel roll forming machine is used to produce shelf panels for a wide range of storage shelf applications, from light-duty display shelves to heavy-duty warehouse shelving systems. The line can process a wide range of materials, including carbon steel, galvanized coil, stainless steel, and other materials with sheet thickness configurable from 0.5–3.0 mm depending on production requirements.
Bohai provides non-standard customization, allowing molds and production processes to be adjusted for shelf load capacity, anti-slip hole patterns, edge treatment, and other profile details. This can helps manufacturers produce differentiated shelving products.

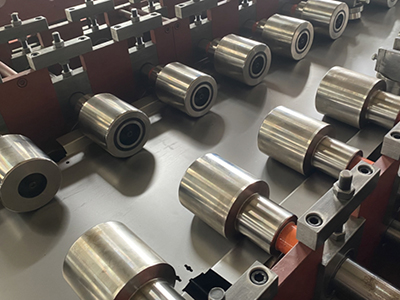

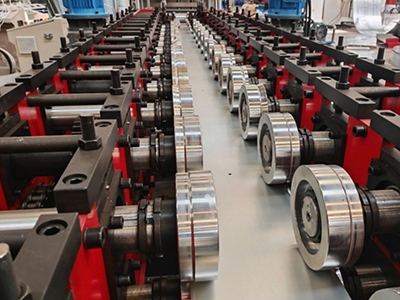

Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.5-0.6mm (customizable) |
| Feeding Width | 800-1200mm (customizable) |
| Effective Width | 600-1000mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 12×1.6×1.4m |
| Machine Weight | 7t-10t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Servo Feeding and Hydraulic Punching Device | |
| Servo Feeding | 2.5-5.5kW, GCr15 (quenched to HRC 56-60) |
| Hydraulic Cutting Device | 5.5-11kW, 2 sets cutting mold |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø70mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 14-24 stations |
| Forming Machine Motor Power | 5.0-11kW |
| Forming Speed | 8-20m/min |
| Hole Measurement Hydraulic Cutting and Bending Device | |
| Cutting Method | 3.0kW hydraulic station, 1 set hole measuring and positioning device, 1 hydraulic cutting machine with mold |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

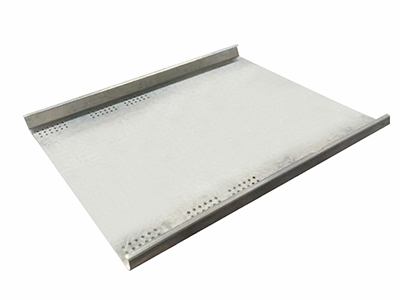

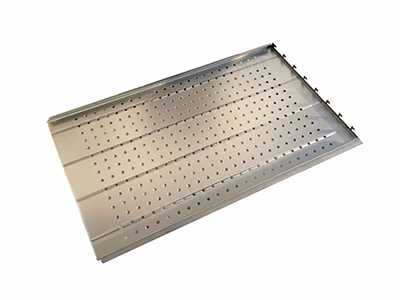

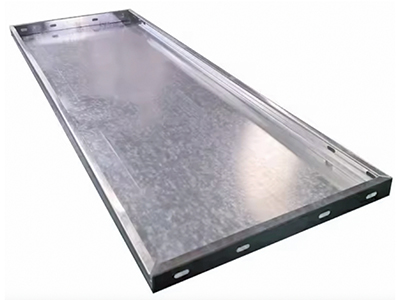

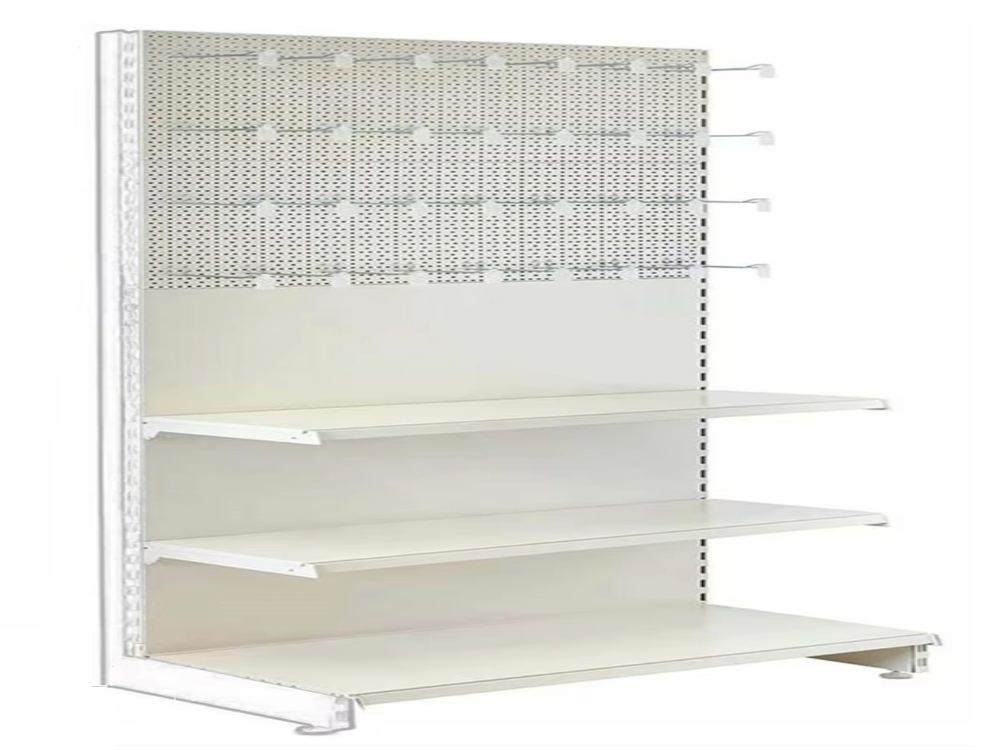

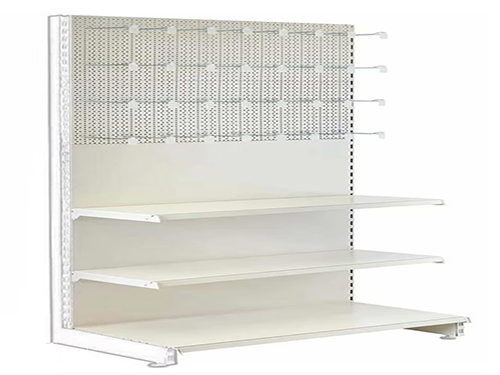

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling → Servo Feeding and Hydraulic Cutting → Material Feeding → Roll Forming → Hole Measurement Hydraulic Cutting and Bending → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Passively Decoiler and 7 Rollers Leveling Device | 1 Set |
| 2 | Servo Feeding and Hydraulic Cutting Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Hole Measurement Hydraulic Cutting and Bending | 1 Set |
| 5 | Run-out Table | 1 Set |
| 6 | Hydraulic Station | 1 Set |
| 7 | Controlling System (including Cabinet) | 1 Set |
| 8 | Run-out Table | 1 Set |
