Automatic Flat Bar Pipe Clamp Forming Machine

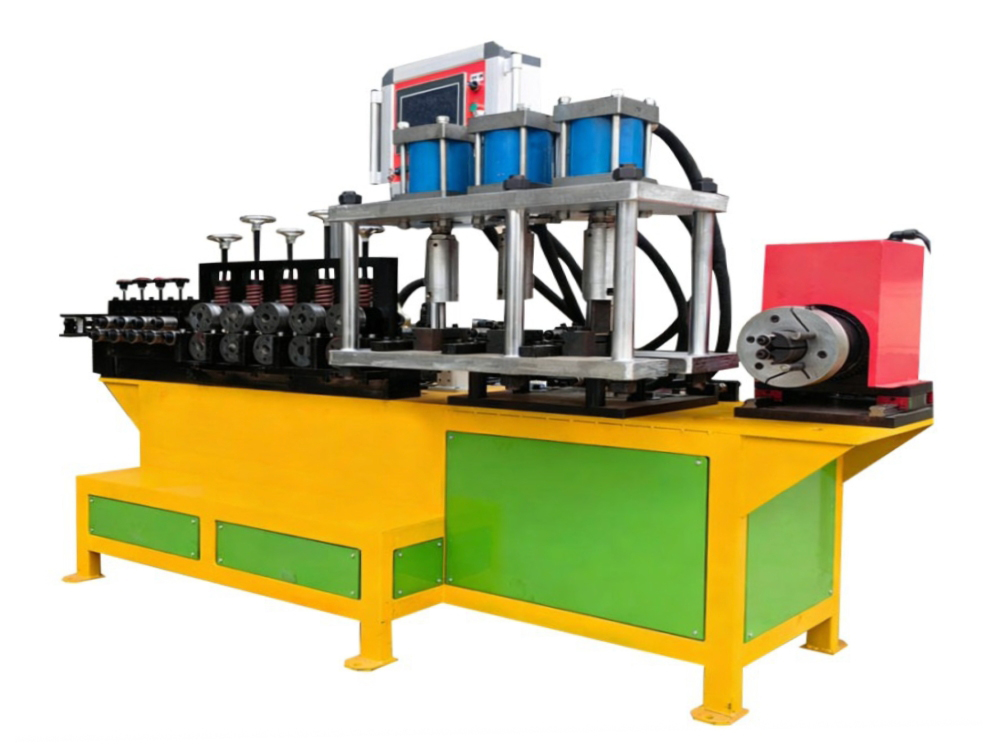

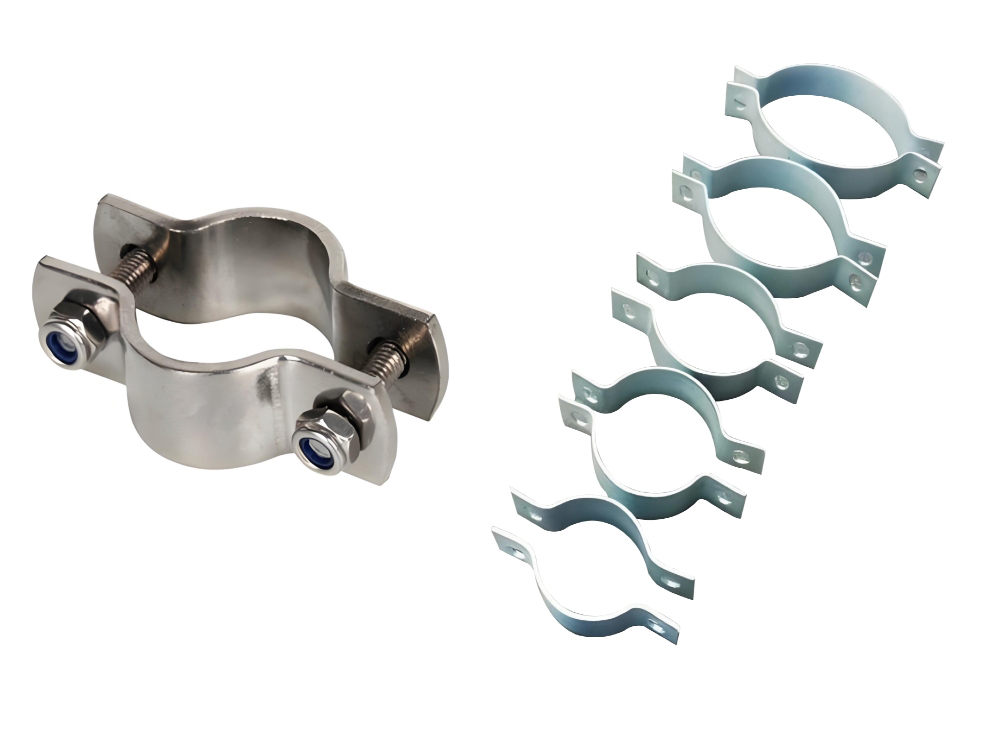

The automatic flat bar pipe clamp forming machine is designed for CNC production of pipe clamps from flat bar. Equipped with a PLC control system and servo feeding device, the machine supports one-touch changeover for multiple specifications and automatically completes feeding, forming, cutting, and counting.
With a working speed of 10–20 pcs/min, the machine can improve pipe clamp production speed by more than five times compared with traditional welding or bolted fixing methods. Single-shift output can reach 800–1,500 pieces, helping manufacturers shorten production lead times for pipe clamp orders.

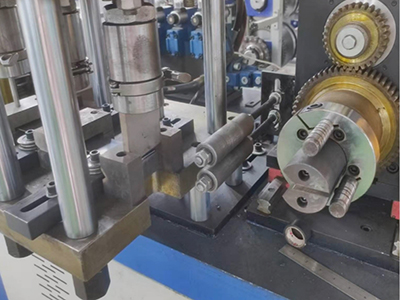

Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 3.0mm (Max. 10mm, customizable) |
| Feeding Width | 50mm (Max. 100mm, customizable) |
| Machine Dimensions & PLC | |
| Machine Type | CNC, Supports Multiple Models, Automatic Bending And Punching |
| Machine Dimensions | Approx. 2×1.6×1.7m |
| Machine Weight | 2t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |

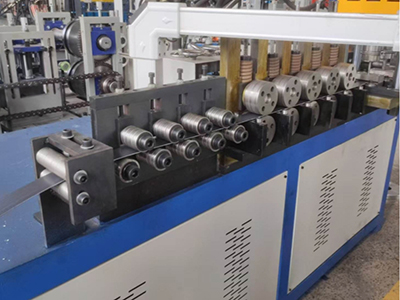

| Flattening | 9 Rollers Flattening |
| Feed Motor | Servo Motor, 4.5kW |
| Bending Motor | Servo Motor, 3.8kW |
| Push Motor | Servo Motor, 0.7kW |
| Hydraulic Station | 7.5kW |
| Mold | 2 sets, punching and cutting |
| Working Speed | 10-20 pcs/min, according to the size of workpiece |
| No. | Equipment | Quantity |
| 1 | 3t Uncoiler | 1 Set |
| 2 | Flattening Device | 1 Set |
| 3 | Bending and Punching Machine | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Controlling System (including Cabinet) | 1 Set |
