PU Foam Spray Equipment

  • PU Foam Spray Equipment
  • PU Foam Spray Equipment

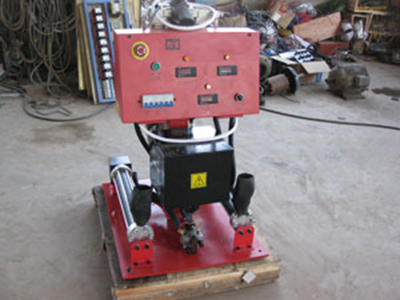

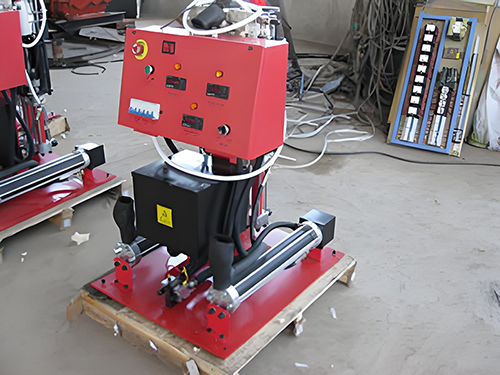

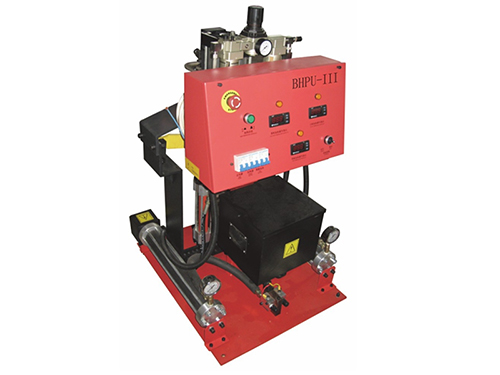

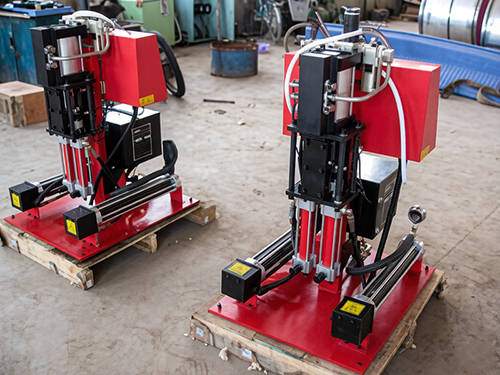

The parts of BHPU-l polyurethane spray perfusion equipment are from America, which making sure the pressure is high enough for mixing the double component materials together. It has the heater which is 2500 watt. This PU spray perfusion equipment provides the reliable heat source for the row materials, and solves the problem of the viscosity of the materials. The heating pipe is 15 meters long and it preserves the heat energy of the materials. The system of spray gun with non-solvents washing makes the PU spray perfusion equipment easy to operate, and maintain.

Specifications
Model A50 A200 A500 A700
Machine Weight 75kg 105kg 120kg 345kg
Total Power 8kW 10.5kW 12.5kW 28kW
Drive Type Fully Pneumatic Fully Pneumatic Fully Pneumatic Fully Pneumatic
Ratio of Raw Materials 1:1 1:1 1:1 1:1
Output of Raw Materials 4-8L/ min 4-9L/ min 4-10L/ min 4-16L/ min
Max. Working Pressure 15Mpa 15Mpa 25Mpa 35Mpa
Heating Power 3000W*2 4000W*2 4500W*2 9000W*2
Hose Heating Power 2000W 2500W 3500W 3500W
Viscosity Range 200-1000cP 200-1000cP 200-1000cP 200-1000cP
Voltage 380V, 50Hz/60Hz, 3 Phases 220V, 50Hz, Single Phase 380V, 50Hz/60Hz, 3 Phases. 220V, 50Hz, Single Phase 380V, 50Hz/60Hz, 3 Phases 220V, 50Hz, Single Phase 380V, 50Hz/60Hz, 3 Phases 220V, 50Hz, Single Phase
