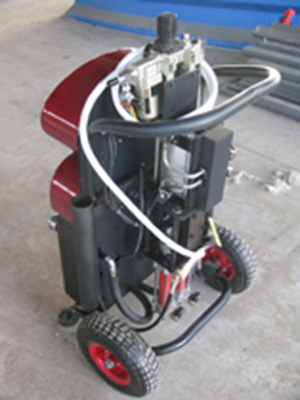

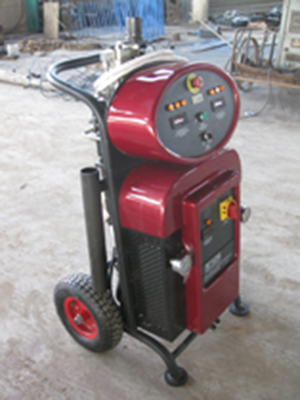

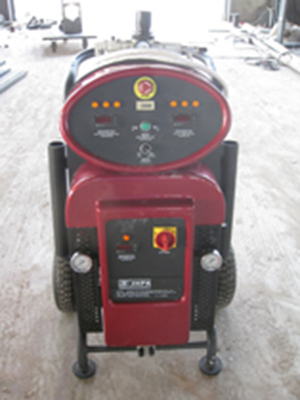

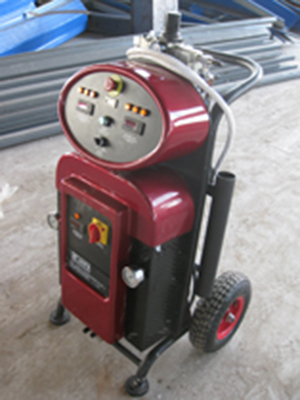

BHPU-F2008 PU Foam Spray Equipment
BHPU-F2008 polyurethane spray perfusion equipment is as a special one, this type of machine gives you more choice because there are double spray guns with different size. The function of spray and perfusions can be changed mutually, the operation is more easily, the spray gun should be changed only. In addition, the PU spray perfusion equipment is equipped with automatic reset device. After one day's work, it can make the material pump reset to the next point, and prolong the service life of the sealing element.
Our PU spray perfusion equipment is widely used for refrigerator heat preservation, building exterior, roof warm keeping and waterproof, sports venues, air-condition insulation, automobile and naval vessels, solar water heater, etc.
| BHPU-F2008 PU Foam Spray Equipment | |
| Standard Configuration | |
| Mainframe | 1 set |
| Spray gun | 1set |
| Heating and preserved pipe | 15m |
| Connecting pipe for spray gun | 1.5m |
| Max. pipe length | 90m(optional) |
| Transfer pump | 2 sets |
| Technical Parameter | |
| Power Source | 380V 50/60Hz 3 phases |
| Air source | 0.5~0.8Mpa (70~120psi) ≥0.9m3 /min |
| Output | 4~8kg/min |
| Heating device power for material | 3000W X 2(or optional 4500W X 2) |
| Heating power for pipe heating | 3500w |
| Single component output pressure | 5~10Mpa (700~1500psi) |
| Heat temperature | 80℃ |
| Shipping Parameter | |
| Weight | 125kg |
| Volume | 800x 700x1100(mm) |
