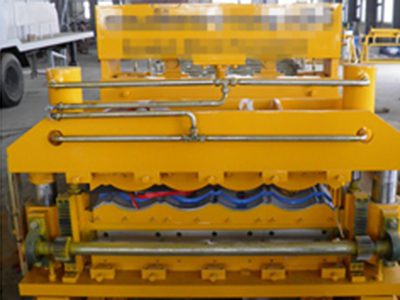

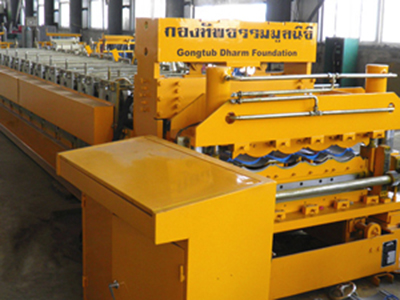

Glazed Tile Roll Forming Machine

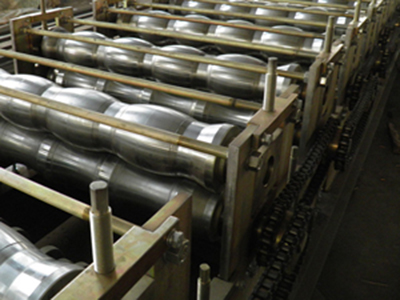

Glazed tiles made by our Glazed Tile Roll Forming Machine are beautiful, noble and elegant in appearance. They not only serve as roof tiles but also as decorations in factories, hotels, exhibition centers, villas, civil constructions, etc. Our Glazed Tile Roll Forming Machine is generally made up of a base, a coil sheet guiding device, a roll forming system, an after processing system, a hydraulic station, and a numeral control system.
Technical Details| Coil Dimension (mm) | 1250×(0.4-0.6)×L |
| Yield Strength of Coil | ≤250MPa |
| Working Speed | 2.0-4.0m/min |
| Roller Material | #45 forged steel plated with hard chromium |
| Shaft Material | #45 forged steel after tempering |
| Main Power | 5.5kw |
| Hydraulic Motor Power | 11kw |
| Hydraulic Station Pressure | 10~12Mpa |
| Control System | PLC |
| Dimension | 6500×1700×1400(mm) |
| Characteristics | |
| 1. The glazed tile roll forming machine features compact structure and attractive appearance. Welded with H steel entirely, it offers stable operation. 2. Our machine makes use of automatic measurement and cutting instruments that are precise enough to get the trim cutting edge. | |
| Working Process | |
| Decoiling-Feeding-Punching-Cutting to length-Product packing manually, etc. Under the automatic control of computer, the machine accomplishes the hydraulic transmission, hydraulic forming and hydraulic cutting smoothly. | |
